Symbologies Enter/Exit Programming Mode

Product Reference Guide

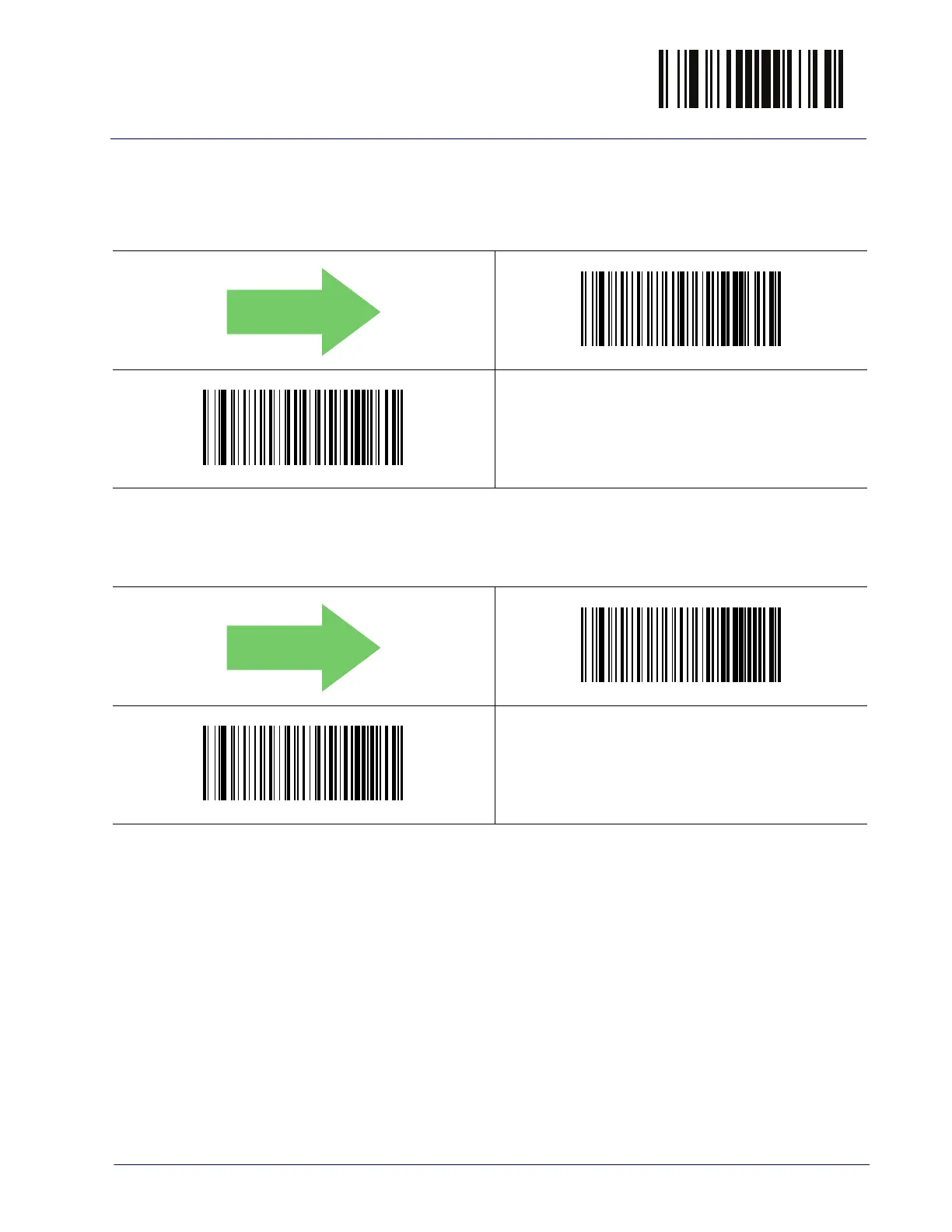

Expand UPC-E to EAN-13

Expands UPC-E data to the EAN-13 data format. Selecting this feature also

changes the symbology ID to match those required for EAN-13.

Expand UPC-E to UPC-A

Expands UPC-E data to the UPC-A data format.

$CEB3B00

UPC-E to EAN-13 = Don’t Expand

$CEB3B01

UPC-E to EAN-13 = Expand

DEFAULT

$CEBAB00

UPC-E to UPC-A = Don’t Expand

$CEBAB01

UPC-E to UPC-A = Expand

DEFAULT

Default Chapter3
