To Next Page

To Previous Page

Enter/Exit Programming Mode GS1 DataBar

Expanded

126 QuickScan™ I QM21X1 / QBT21X1

GS1 DataBar

Expanded

The following options apply to the GS1 DataBar Expanded (formerly RSS

Expanded) symbology.

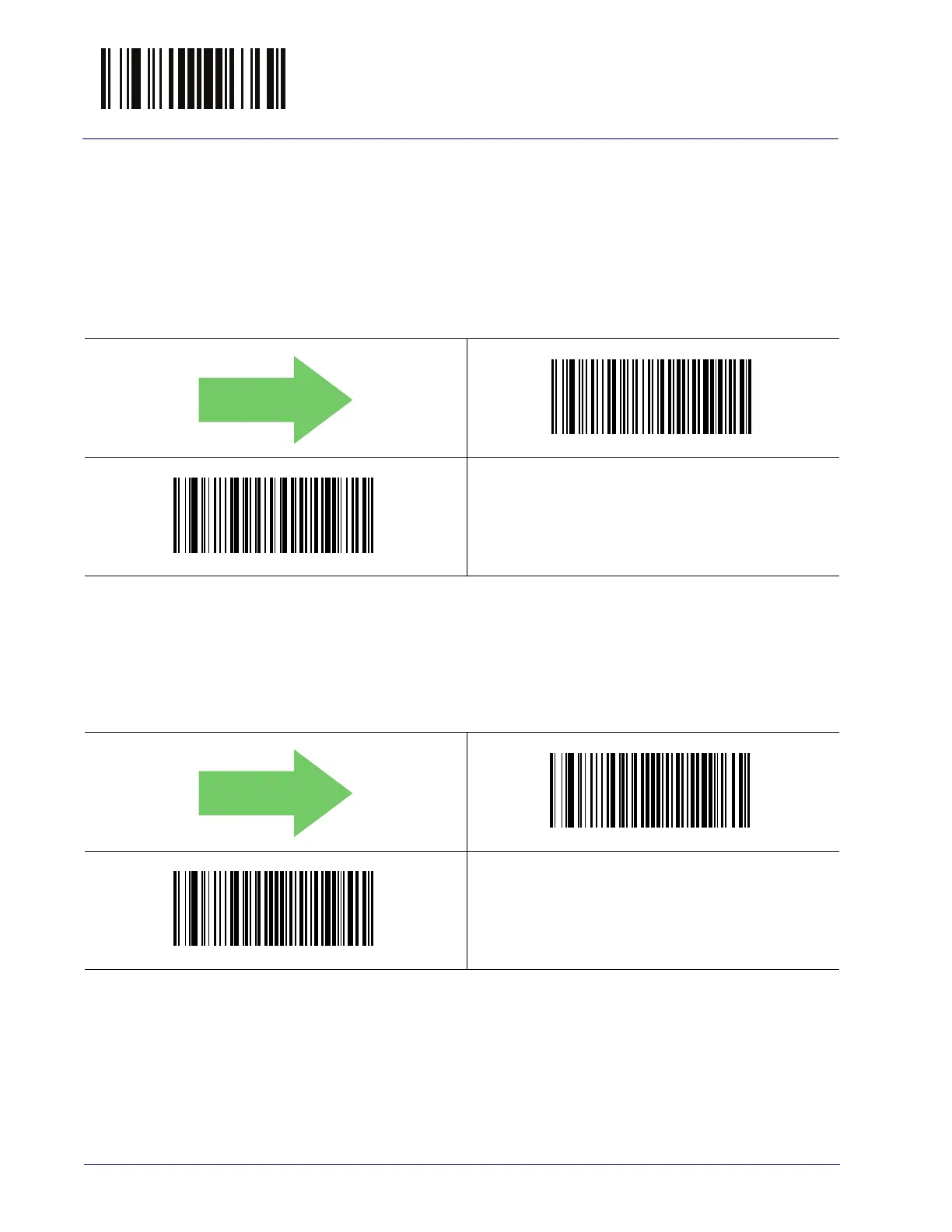

GS1 DataBar Expanded Enable/Disable

When disabled, the reader will not read GS1 DataBar Expanded bar codes.

GS1 DataBar Expanded GS1-128 Emulation

When enabled, GS1 DataBar Expanded bar codes will be translated to the GS1-

128 label data format.

$CXBEN00

GS1 DataBar Expanded = Disable

$CXBEN01

GS1 DataBar Expanded = Enable

DEFAULT

$CXBU800

GS1 DataBar Expanded GS1-128 Emulation = Disable

$CXBU801

GS1 DataBar Expanded GS1-128 Emulation = Enable

DEFAULT
