To Next Page

To Previous Page

Enter/Exit Programming Mode EAN 8

100 QuickScan™ I QM21X1 / QBT21X1

EAN 8

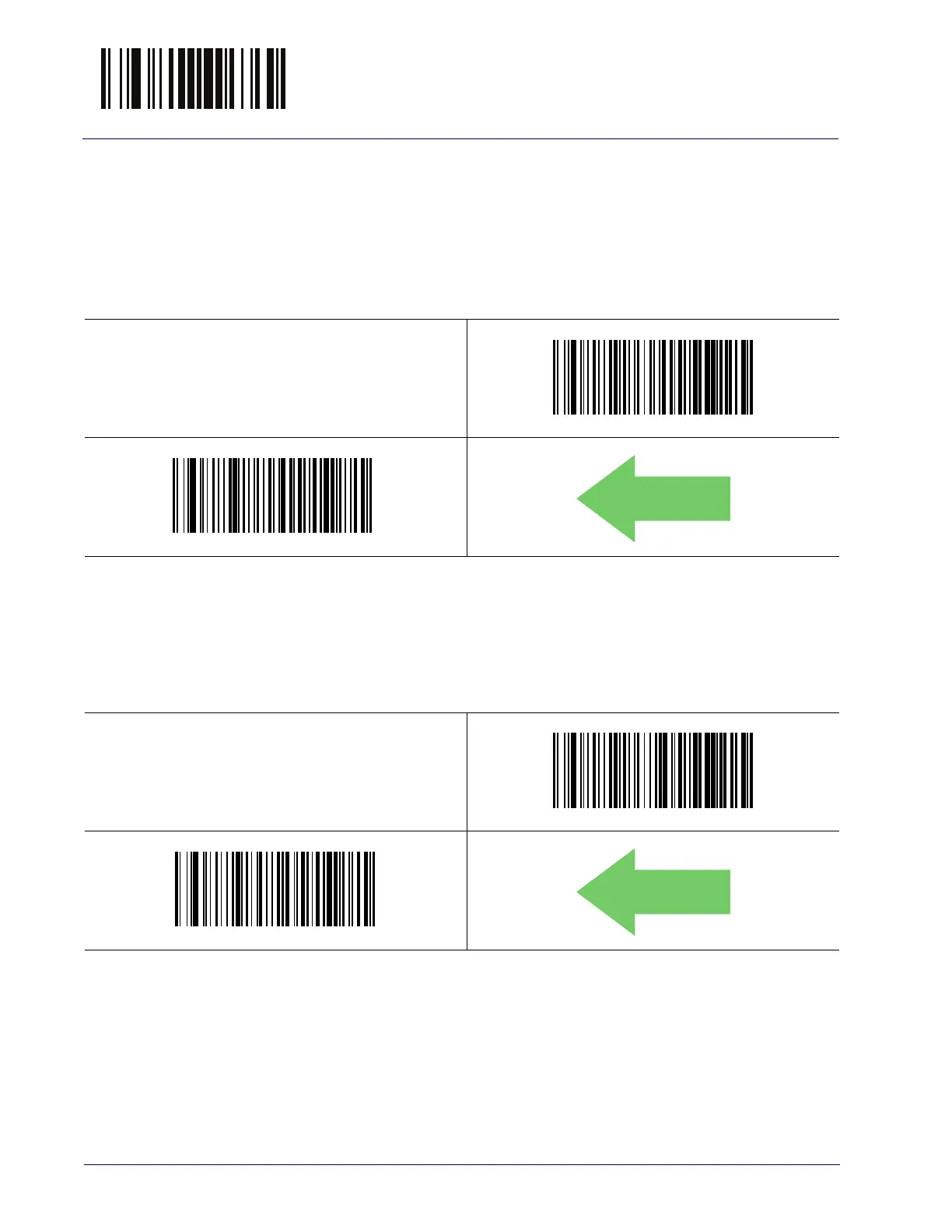

The following options apply to the EAN 8 (Jan 8) symbology.

EAN 8 Enable/Disable

When disabled, the reader will not read EAN 8/JAN 8 bar codes.

EAN 8 Check Character Transmission

Enable this option to transmit the check character along with EAN 8 bar code

data.

$C8BEN00

EAN 8 = Disable

$C8BEN01

EAN 8 = Enable

DEFAULT

$C8BCT00

EAN 8 Check Character Transmission = Don’t Send

$C8BCT01

EAN 8 Check Character Transmission = Send

DEFAULT

Default Chapter3
