Enter/Exit Programming Mode

Product Reference Guide

271

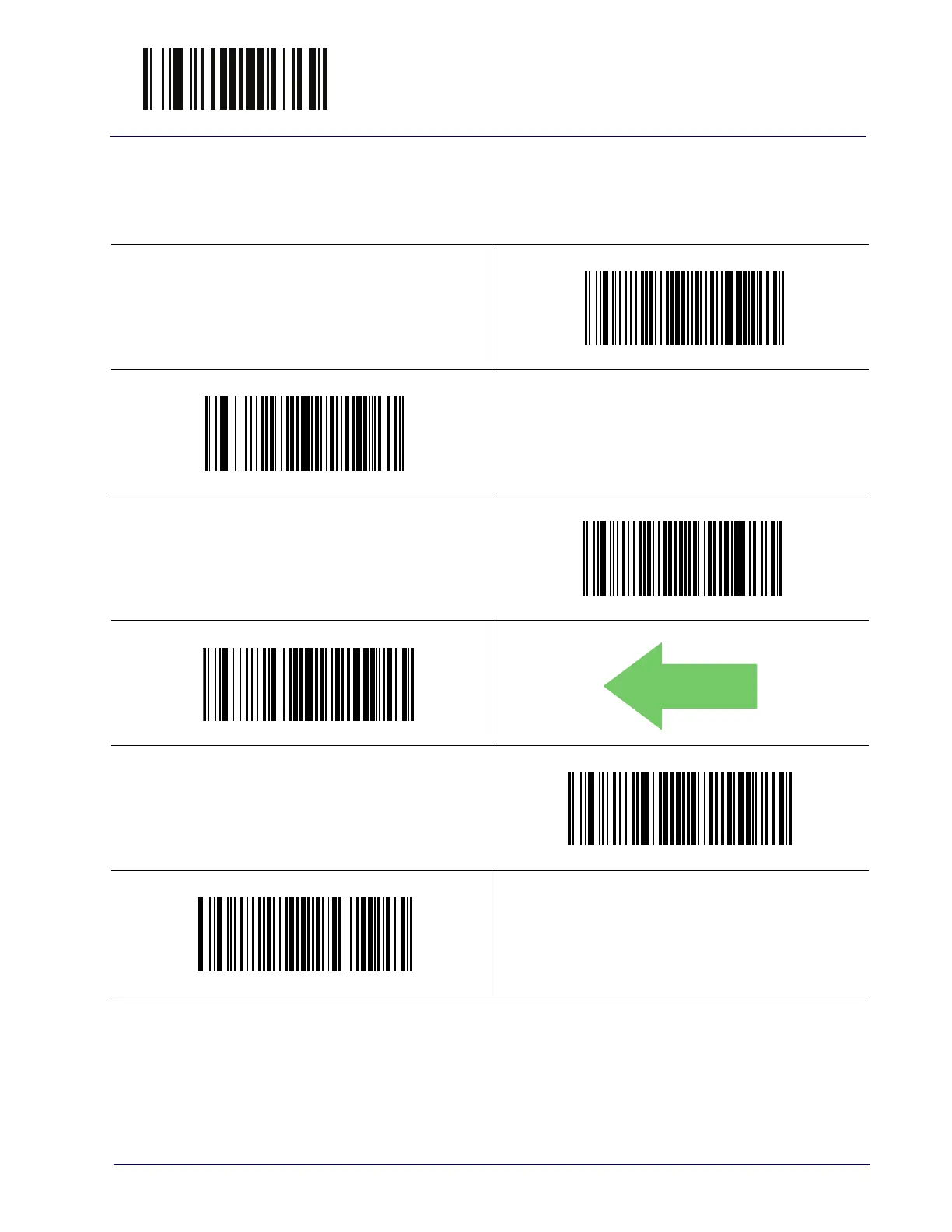

Powerdown Timeout

The Powerdown Timeout feature sets the time for automatically switching the

unit off when the imager has been idle.

Powerdown Timeout = Disable

Powerdown Timeout = 10 minutes

Powerdown Timeout = 20 minutes

Powerdown Timeout = 30 minutes

Powerdown Timeout = 60 Minutes (1 Hour)

Powerdown Timeout = 120 Minutes (2 Hours)

DEFAULT

Default Chapter3
