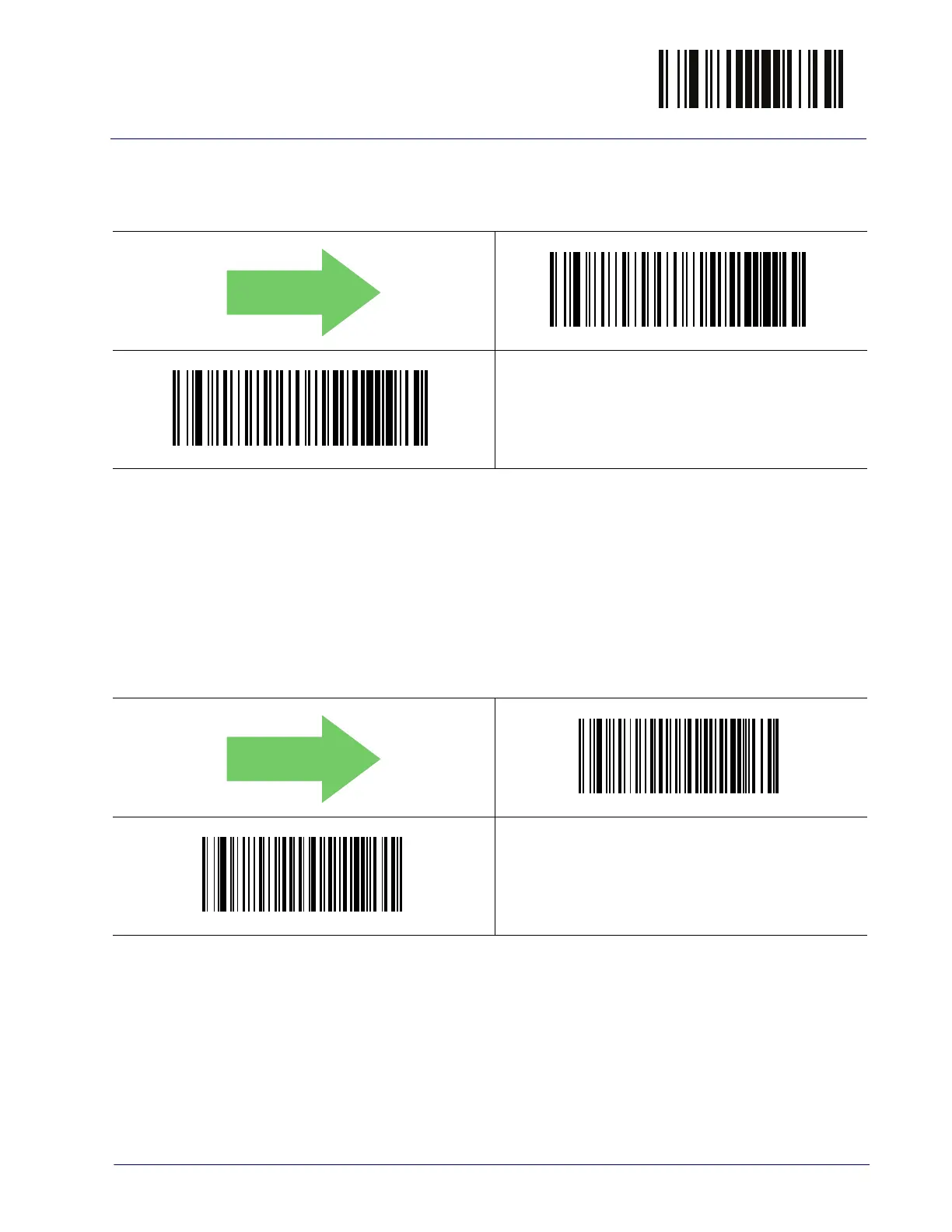

Symbologies Enter/Exit Programming Mode

Product Reference Guide

191

ABC Codabar Force Concatenation

Forces labels starting or ending with D to be concatenated.

Code 11

The following options apply to the Code 11 symbology.

Code 11 Enable/Disable

When disabled, the reader will not read Code 11 bar codes.

$CCBFC00

ABC Codabar Force Concatenation = Disable

$CCBFC01

ABC Codabar Force Concatenation = Enable

DEFAULT

$CC1EN00

Code 11 = Disable

$CC1EN01

Code 11 = Enable

DEFAULT
