Enter/Exit Programming Mode UPC/EAN Global Settings

114 QuickScan™ I QM21X1 / QBT21X1

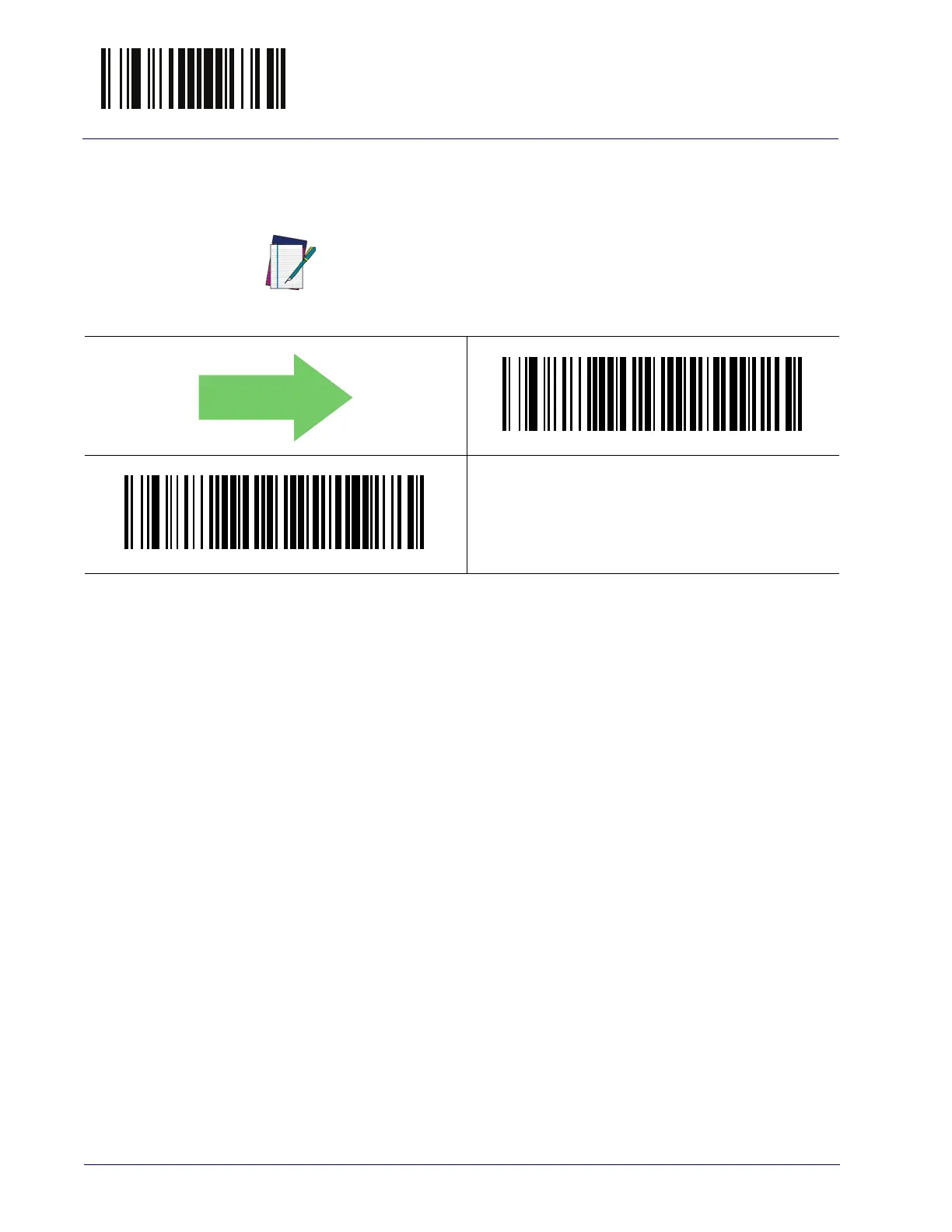

UPC/EAN Stitch Unlike Label Halves

Enables/disables the ability to stitch two UPC-A/EAN 13 label halves together

that may have differing characters in them.

NOTE

The label half structures must have the structure GddddddC

and CddddddG. The characters dCd must match between the

two segments.

$CUNSU00

UPC/EAN Stitch Unlike Label Halves = Disable

$CUNSU01

UPC/EAN Stitch Unlike Label Halves = Enable

DEFAULT

Default Chapter3
