Symbologies Enter/Exit Programming Mode

Product Reference Guide

153

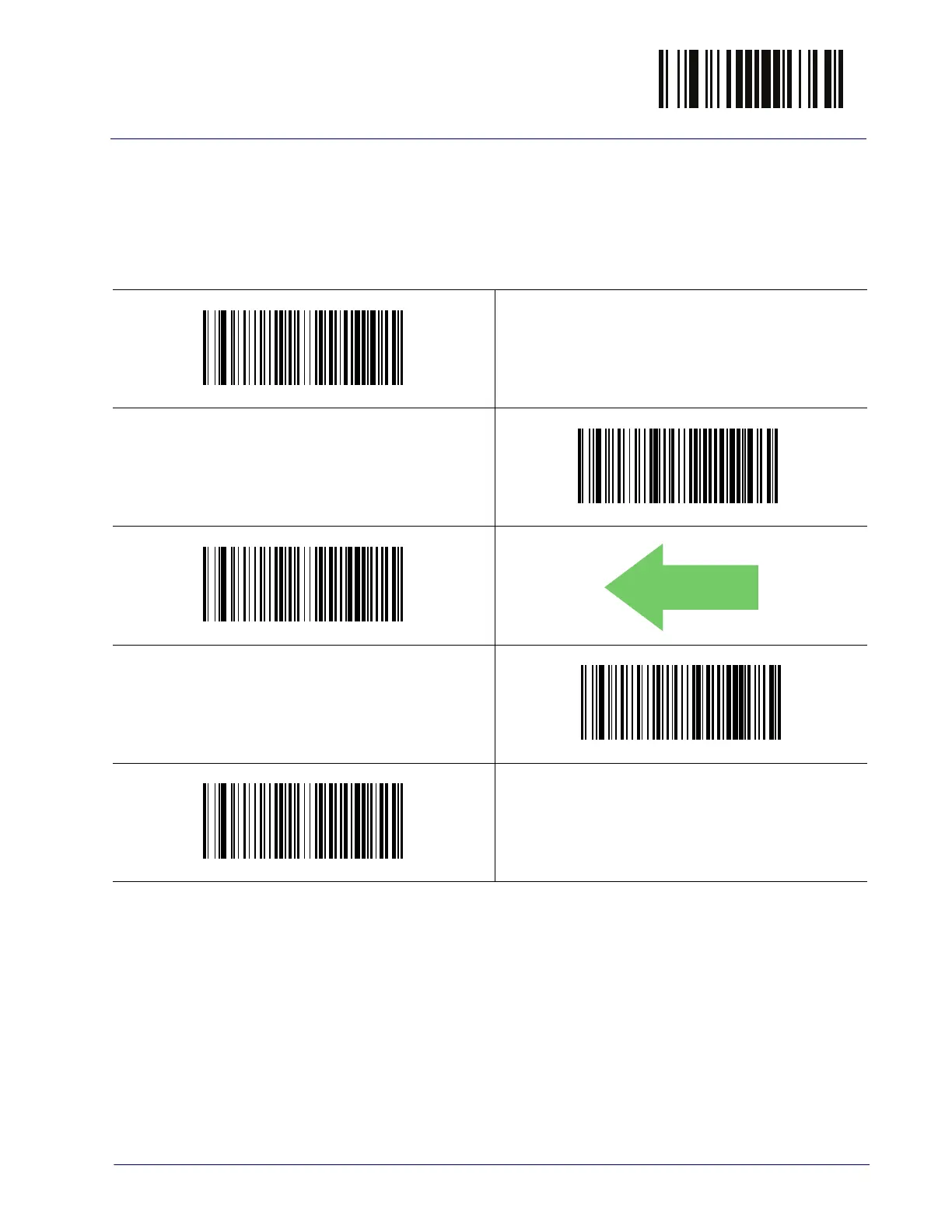

Code 128 Decoding Level

Decoding Levels are used to configure a bar code symbology decoder to be very

aggressive to very conservative depending on a particular customer’s needs.

See "Decoding Levels" on page 303 for more detailed programming instruc-

tions.

$CC8DL01

Code 128 Decoding Level = 1

$CC8DL02

Code 128 Decoding Level = 2

$CC8DL03

Code 128 Decoding Level = 3

$CC8DL04

Code 128 Decoding Level = 4

$CC8DL05

Code 128 Decoding Level = 5

DEFAULT

Default Chapter3
