Symbologies Enter/Exit Programming Mode

Product Reference Guide

101

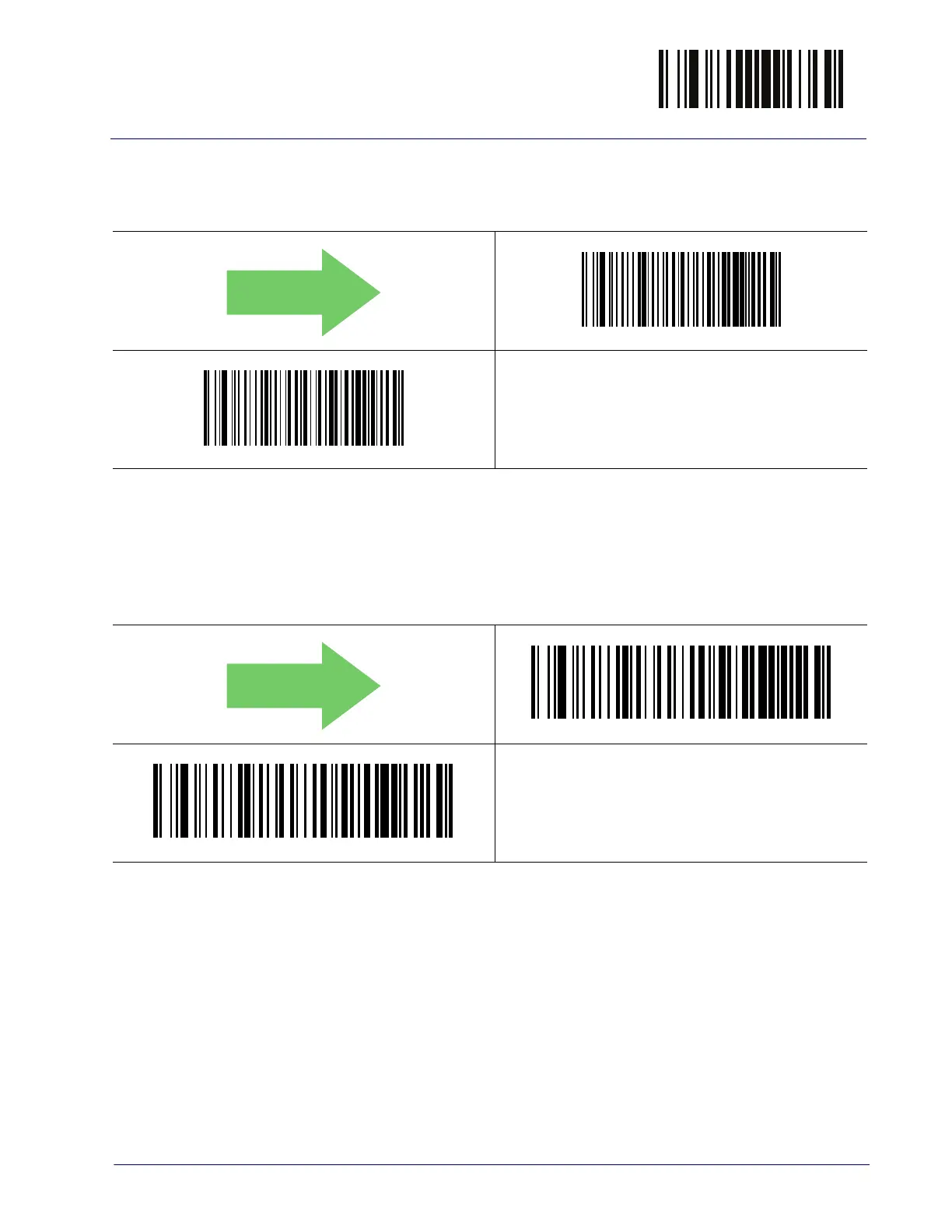

Expand EAN 8 to EAN 13

Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13.

EAN 8 Both Guards Substitution

Enables/disables the ability of the reader to find an EAN/JAN8 guard pattern in

caseswhere the EAN/JAN8 margin makes the guard look like a character.

$C8B3B00

Expand EAN 8 to EAN 13 = Disable

$C8B3B01

Expand EAN 8 to EAN 13 = Enable

DEFAULT

$C8BG200

EAN 8 Both Guards Substitution = Disable

$C8BG201

EAN 8 Both Guards Substitution = Enable

DEFAULT

Default Chapter3
