System and Network Layout

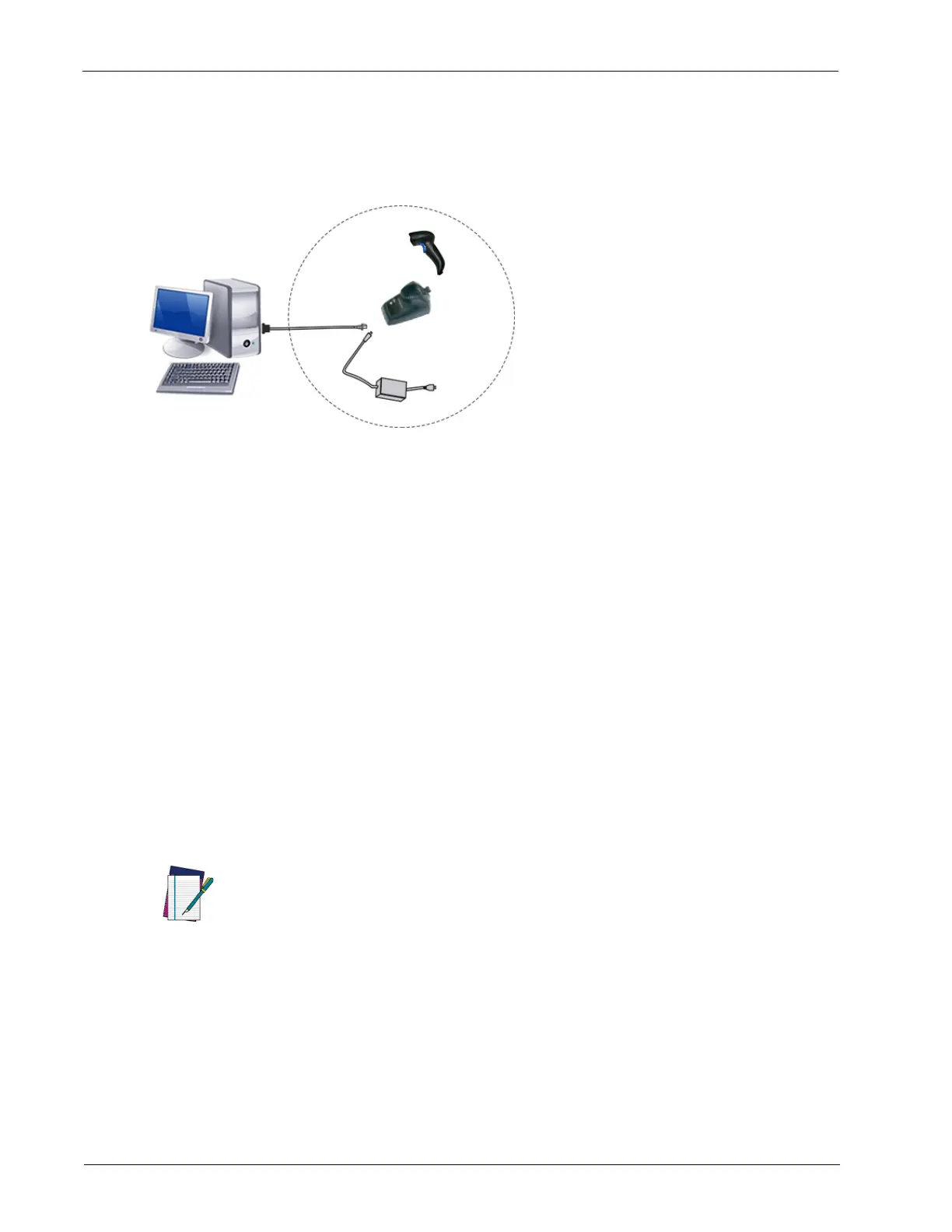

Typical Setup with Cradle and Host
Figure 5. Reader Layout
Connecting the Base when Security Pin is Enabled
When connecting the Base to a system that has a custom Security Pin enabled,
follow the steps below in the order shown:
1. Power down the host system.
2. Connect the appropriate interface cable into the Base as shown.
3. Place the reader in the Base.
4. Power up the host. The reader will link to the Base
5. When the host completely powers up, a new custom Security Pin Code may
be sent to the reader and Base, depending on host configuration. Contact
Datalogic Technical Support for more information.
Reader
Base Station
Host
Power Supply
NOTE
If you want to change security settings or set up a PIN, see
"BT Security Mode"
starting
on page 223.
