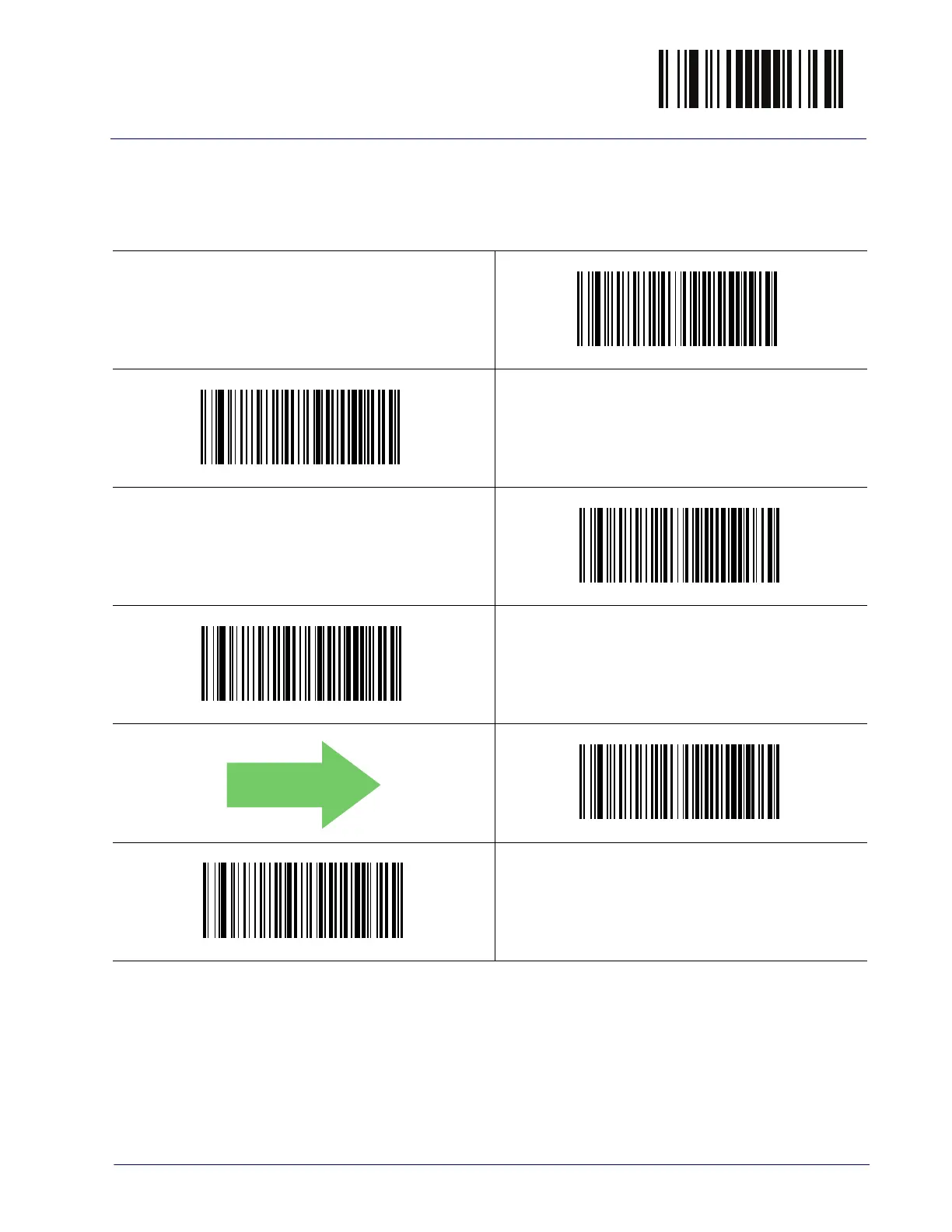

Code 39 Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for

Code 39 labels.

$CC3IR00

Code 39 Interdigit Ratio = Disable

$CC3IR01

Code 39 Interdigit Ratio = 1

$CC3IR02

Code 39 Interdigit Ratio = 2

$CC3IR03

Code 39 Interdigit Ratio = 3

$CC3IR04

Code 39 Interdigit Ratio = 4

$CC3IR05

Code 39 Interdigit Ratio = 5

DEFAULT
