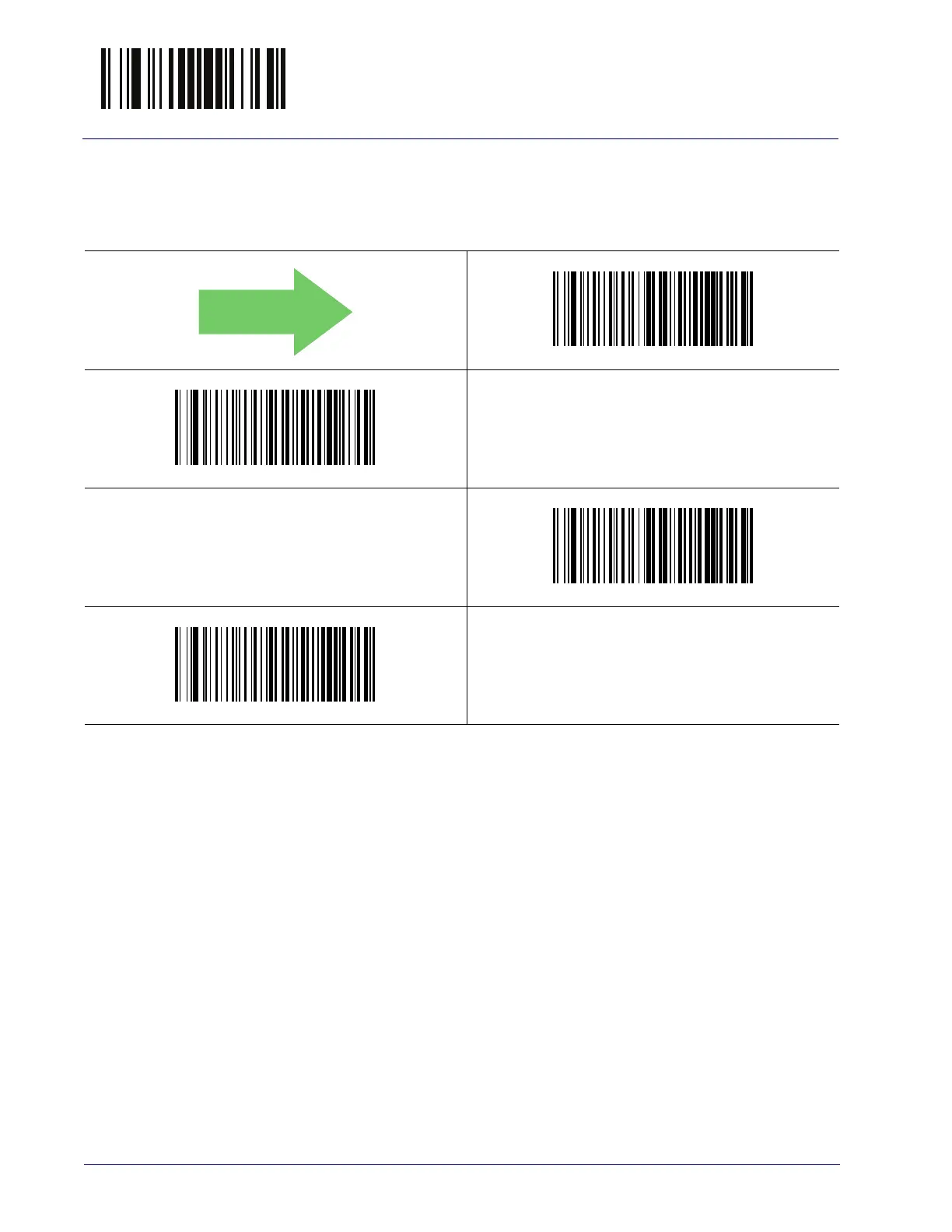

122 QuickScan™ I QM21X1 / QBT21X1

P5 Add-Ons Minimum Reads

This feature specifies the minimum number of times a P5 add-on must be read

before it is marked as valid and then combined with a base label.

$CADM501

P5 Add-Ons Minimum Reads = 1

$CADM502

P5 Add-Ons Minimum Reads = 2

$CADM503

P5 Add-Ons Minimum Reads = 3

$CADM504

P5 Add-Ons Minimum Reads = 4

DEFAULT

Default Chapter3
- Table of Contents3
Introduction11
- About this Guide11
- Manual Overview11
- Manual Conventions12
- Other Resources12
Setup13
- About the Reader13
- Unpacking13
- Setting up the Reader14
- Programming25
- Resetting the Product Configuration to Defaults26
Interfaces27
- Interface Selection27
- Configuring the Interface27
Configuration Using Bar Codes31
- Using the Programming Bar Codes31
- Configuration Parameters32
- Global Interface Features33
  - Host Commands - Obey/Ignore33
  - USB Suspend Mode34
RS-232 ONLY Interface35
- Baud Rate36
- Data Bits37
- Stop Bits38
- Parity39
- Handshaking Control40
RS-232/USB-COM Interfaces41
- Intercharacter Delay42
- Beep on ASCII BEL43
- Beep on Not on File43
- ACK NAK Options44
- Indicate Transmission Failure49
- Disable Character49
- Enable Character50
Keyboard Interface51
- Country Mode52
- Caps Lock State55
- Numlock56
- Keyboard Numeric Keypad56
- Keyboard Send Control Characters57
- Wedge Quiet Interval58
- Intercode Delay59
- USB Keyboard Speed60
USB-OEM Interface63
- Introduction63
- USB-OEM Device Usage64
- USB-OEM Interface Options64
Data Format65
- Global Prefix/Suffix66
- Global AIM ID67
- Gs1-128 Aim ID67
- Label ID68
- Set Global MID Label ID Character(S)76
- Case Conversion77
- Character Conversion78
Reading Parameters79
- Double Read Timeout80
- Label Gone Timeout82
- LED and Beeper Indicators83
- Scanning Features90
- Green Spot Duration97
Symbologies99
- Disable All Symbologies100
- Coupon Control100
- Upc-A101
- Upc-E104
- Ean 13107
- Ean 8110
- EAN Two Label117
- UPC/EAN Global Settings119
- Add-Ons127
- GS1 Databar134
- GS1 Databar139
  - GS1 Databar Expanded Set Length 2140
- TM Limited141
Code 39143
- Code 39 Enable/Disable143
- Code 39 Check Character Calculation144
- Code 39 Check Character Transmission145
- Code 39 Start/Stop Character Transmission145
- Code 39 Full ASCII146
- Code 39 Quiet Zones147
- Code 39 Minimum Reads148
- Code 39 Decoding Level149
- Code 39 Length Control150
- Code 39 Set Length 1151
- Code 39 Set Length 2152
- Code 39 Interdigit Ratio153
- Code 39 Character Correlation155
- Code 39 Stitching155
Code 32 (Italian Pharmaceutical)156
- Code 32 Enable/Disable156
- Code 32 Feature Setting Exceptions156
- Code 32 Check Character Transmission157
- Code 32 Start/Stop Character Transmission157
Code 39 CIP (French Pharmaceutical)158
- Code 39 CIP Enable/Disable158
Code 128158
- Code 128 Enable/Disable158
- Expand Code 128 to Code 39159
- Code 128 Check Character Transmission159
- Code 128 Function Character Transmission160
- Code 128 Sub-Code Change Transmission160
- Code 128 Quiet Zones161
- Code 128 Minimum Reads162
- Code 128 Decoding Level163
- Code 128 Length Control164
- Code 128 Set Length 1165
- Code 128 Set Length 2166
- Code 128 Character Correlation167
- Code 128 Stitching167
Gs1-128168
- GS1-128 Enable168
Interleaved 2 of 5 (I 2 of 5)169
- I 2 of 5 Enable/Disable169
- I 2 of 5 Check Character Calculation170
- I 2 of 5 Check Character Transmission171
- I 2 of 5 Minimum Reads171
- I 2 of 5 Decoding Level172
- I 2 of 5 Length Control173
- I 2 of 5 Set Length 1174
- I 2 of 5 Set Length 2175
- I 2 of 5 Character Correlation176
- I 2 of 5 Zero Pattern176
- I 2 of 5 Stitching177
Interleaved 2 of 5 CIP HR177
- Interleaved 2 of 5 CIP HR Enable/Disable177
Datalogic 2 of 5178
- Datalogic 2 of 5 Enable/Disable178
- Datalogic 2 of 5 Check Character Calculation178
- Datalogic 2 of 5 Check Character Transmission179
- Datalogic 2 of 5 Minimum Reads179
- Datalogic 2 of 5 Decoding Level180
- Datalogic 2 of 5 Length Control180
- Codabar186
- ABC Codabar199
- Code 11201
- Standard 2 of 5211
- Industrial 2 of 5217
- Iata223
  - IATA Enable/Disable223
  - IATA Check Character Transmission223
Isbt 128224
- ISBT 128 Concatenation224
- ISBT 128 Concatenation Mode224
- ISBT 128 Dynamic Concatenation Timeout225
- ISBT 128 Force Concatenation226
- ISBT 128 Advanced Concatenation Options226
Msi227
- MSI Enable/Disable227
- MSI Check Character Calculation227
- MSI Check Character Transmission228
- MSI Length Control228
- MSI Set Length 1229
- MSI Set Length 2230
- MSI Minimum Reads231
- MSI Decoding Level232
Code 93233
- Code 93 Enable/Disable233
- Code 93 Check Character Calculation233
- Code 93 Check Character Transmission234
- Code 93 Length Control234
- Code 93 Set Length 1235
- Code 93 Set Length 2236
- Code 93 Minimum Reads237
- Code 93 Decoding Level238
- Code 93 Quiet Zones239
- Code 93 Stitching240
- Code 93 Character Correlation240
Codablock F241
- Codablock F Enable/Disable241
- Codablock F EAN Enable/Disable241
- Codablock F AIM Check242
- Codablock F Length Control242
- Codablock F Set Length 1243
- Codablock F Set Length 2244
Code 4245
- Code 4 Enable/Disable245
- Code 4 Check Character Transmission245
- Code 4 Hex to Decimal Conversion246
Code 5246
- Code 5 Enable/Disable246
- Code 5 Check Character Transmission247
- Code 5 Hex to Decimal Conversion247
Code 4 and Code 5 Common Configuration Items248
- Code 4 and 5 Decoding Level248
- Code 4 and Code 5 Minimum Reads249
Follett 2 of 5250
- Follett 2 of 5 Enable/Disable250
Bc412250
- BC412 Enable/Disable250
- BC412 Check Character Calculation251
- BC412 Minimum Reads251
- BC412 Decoding Level252
- BC412 Length Control253
- BC412 Set Length 1254
- BC412 Set Length 2255
Plessey256
- Plessey Enable/Disable256
- Plessey Check Character Calculation257
Message Formatting285
- LED and Beeper Control286
References287
- Parameters288
- Keyboard Wedge295
- Data Editing298
- Reading Parameters307
- Symbology Settings313
  - Decoding Levels313
  - Set Length314
- RF Features316
Technical Specifications319
- LED and Beeper Indications322
- Programming Mode323
- Error Codes323
Standard Defaults325
- Default Exceptions337
Sample Bar Codes341
- GS1 Databar (RSS)343
- GS1 Databar-14343
Keypad345
Scancode Tables349
- Control Character Emulation349
  - Single Press and Release Keys349
- Interface Type PC at PS/2 or USB-Keyboard350
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode352
- Digital Interface354
- Ibm Xt356
- Microsoft Windows Codepage 1252358
Index359
- Ascii Chart361
