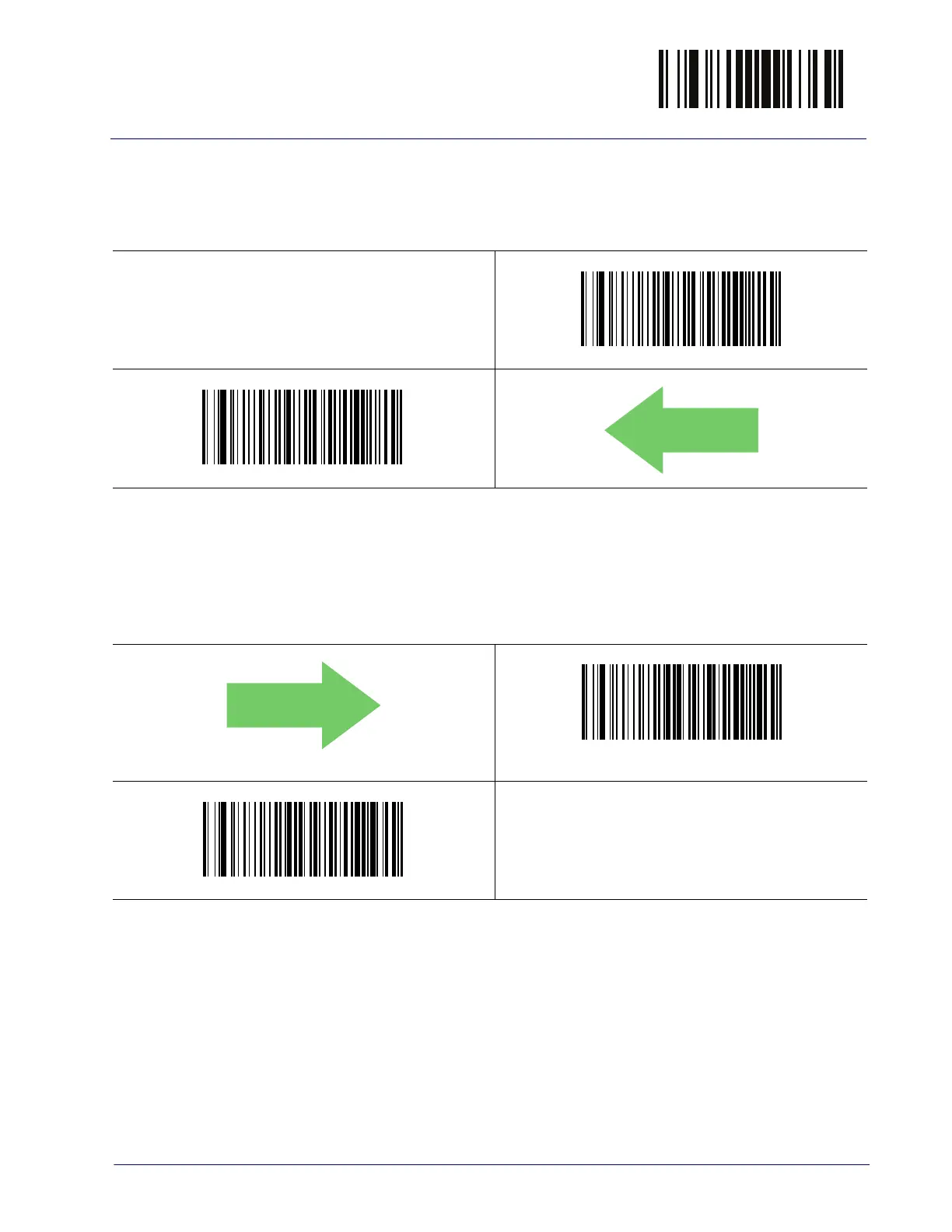

Symbologies Enter/Exit Programming Mode

Product Reference Guide

135

Code 39 Check Character Transmission

Enable this option to transmit the check character along with Code 39 bar code

data.

Code 39 Start/Stop Character Transmission

Enable this option to enable/disable transmission of Code 39 start and stop

characters.

$CC3CT00

Code 39 Check Character Transmission = Don’t Send

$CC3CT01

Code 39 Check Character Transmission = Send

DEFAULT

$CC3SS00

Code 39 Start/Stop Character Transmission = Don’t Trans-

mit

$CC3SS01

Code 39 Start/Stop Character Transmission = Transmit

DEFAULT
