Symbologies Enter/Exit Programming Mode

Product Reference Guide

207

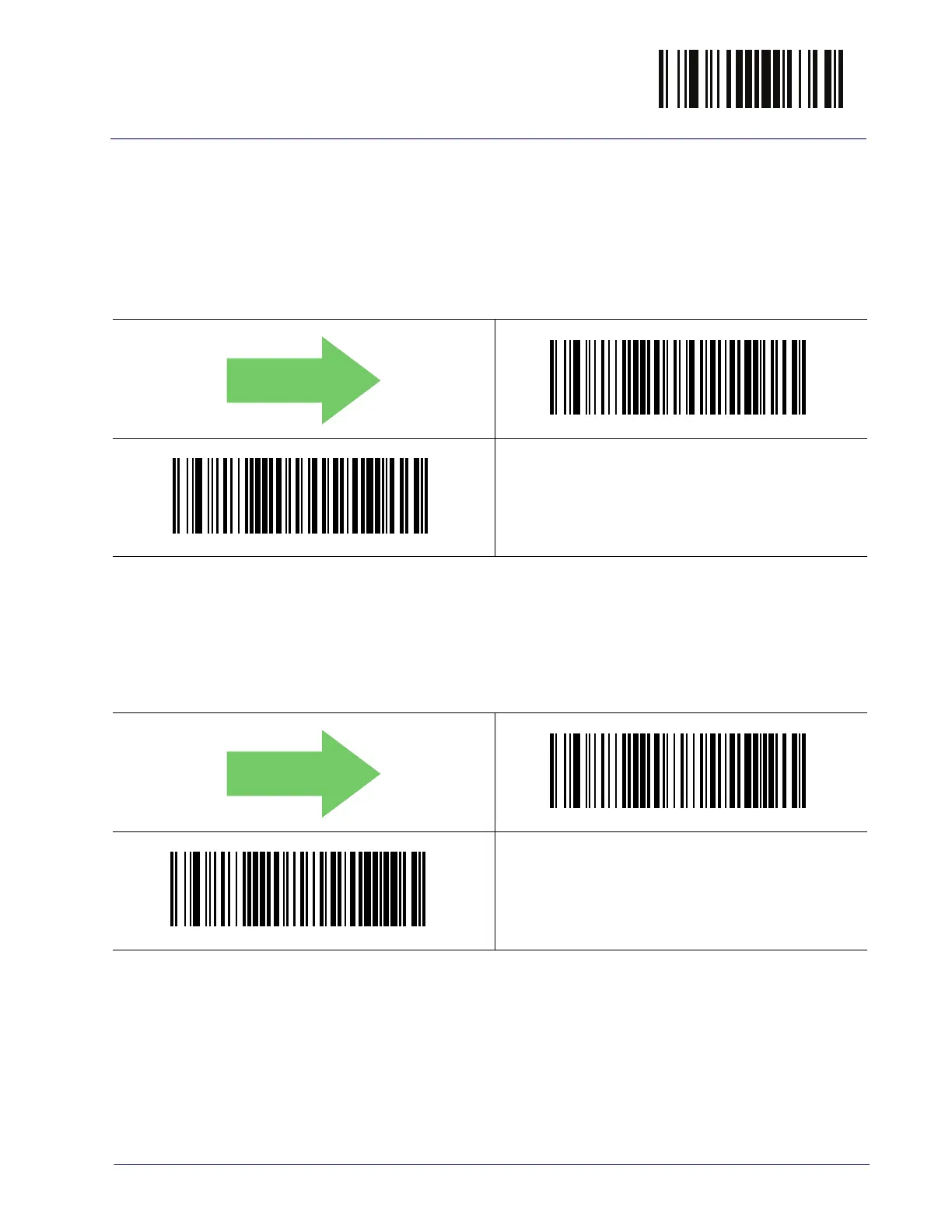

Industrial 2 of 5

The following options apply to the Industrial 2 of 5 symbology.

Industrial 2 of 5 Enable/Disable

Enables/Disables ability of reader to decode Industrial 2 of 5 labels.

Industrial 2 of 5 Check Character Calculation

Enables/Disables calculation and verification of an optional Industrial 2 of 5

check character.

$CU2EN00

Industrial 2 of 5 = Disable

$CU2EN01

Industrial 2 of 5 = Enable

DEFAULT

$CU2CC00

Industrial 2 of 5 Check Character Calculation = Disable

$CU2CC01

Industrial 2 of 5 Check Character Calculation = Enable

DEFAULT
