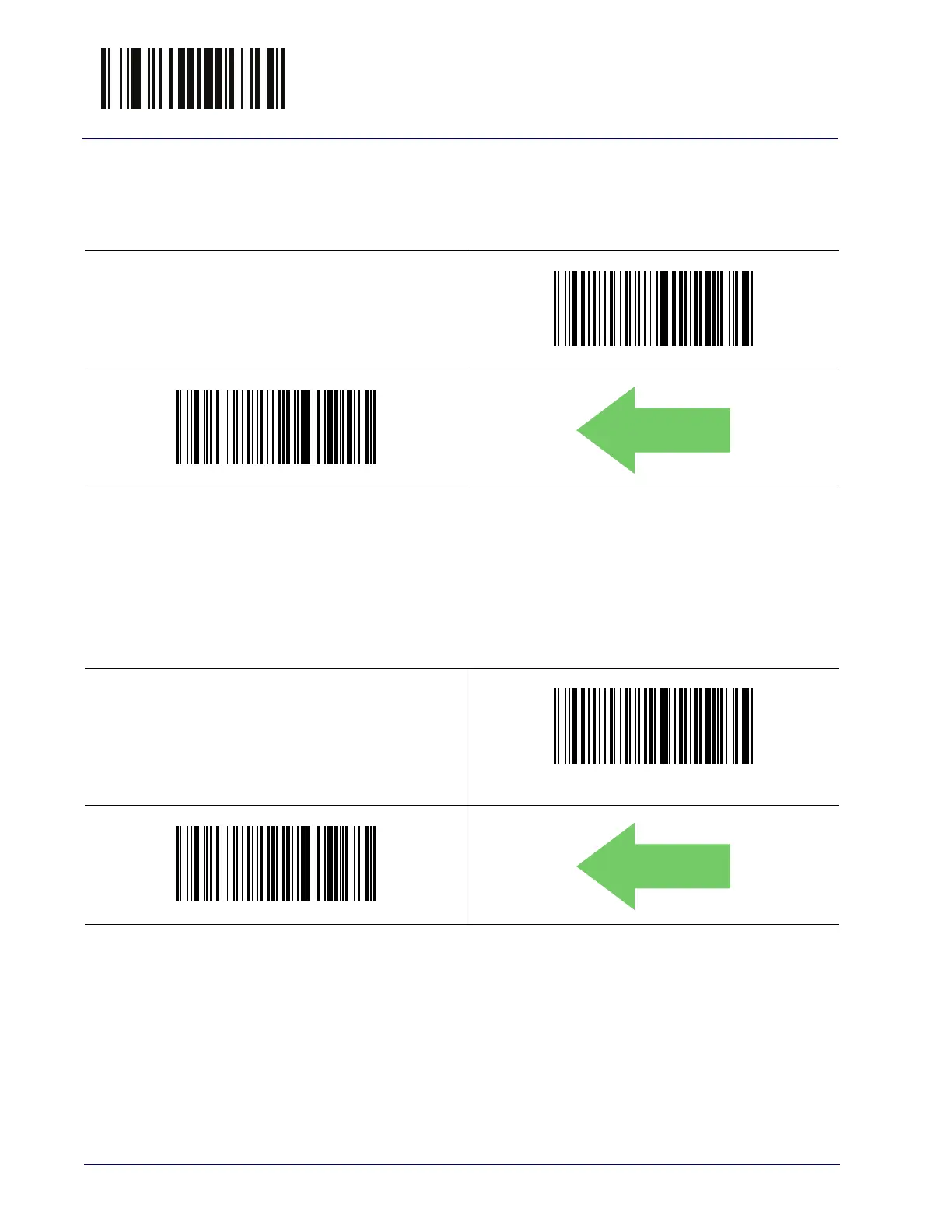

Enter/Exit Programming Mode Codabar

178 QuickScan™ I QM21X1 / QBT21X1

Codabar Check Character Transmission

Enable this option to transmit the check character along with Codabar bar code

data.

Codabar Start/Stop Character Transmission

Enable this option to enable/disable transmission of Codabar start and stop

characters.

$CCBCT00

Codabar Check Character Transmission = Don’t Send

$CCBCT01

Codabar Check Character Transmission = Send

DEFAULT

$CCBSS00

Codabar Start/Stop Character Transmission = Don’t Trans-

mit

$CCBSS01

Codabar Start/Stop Character Transmission = Transmit

DEFAULT

Default Chapter3
