Enter/Exit Programming Mode Scanning Features

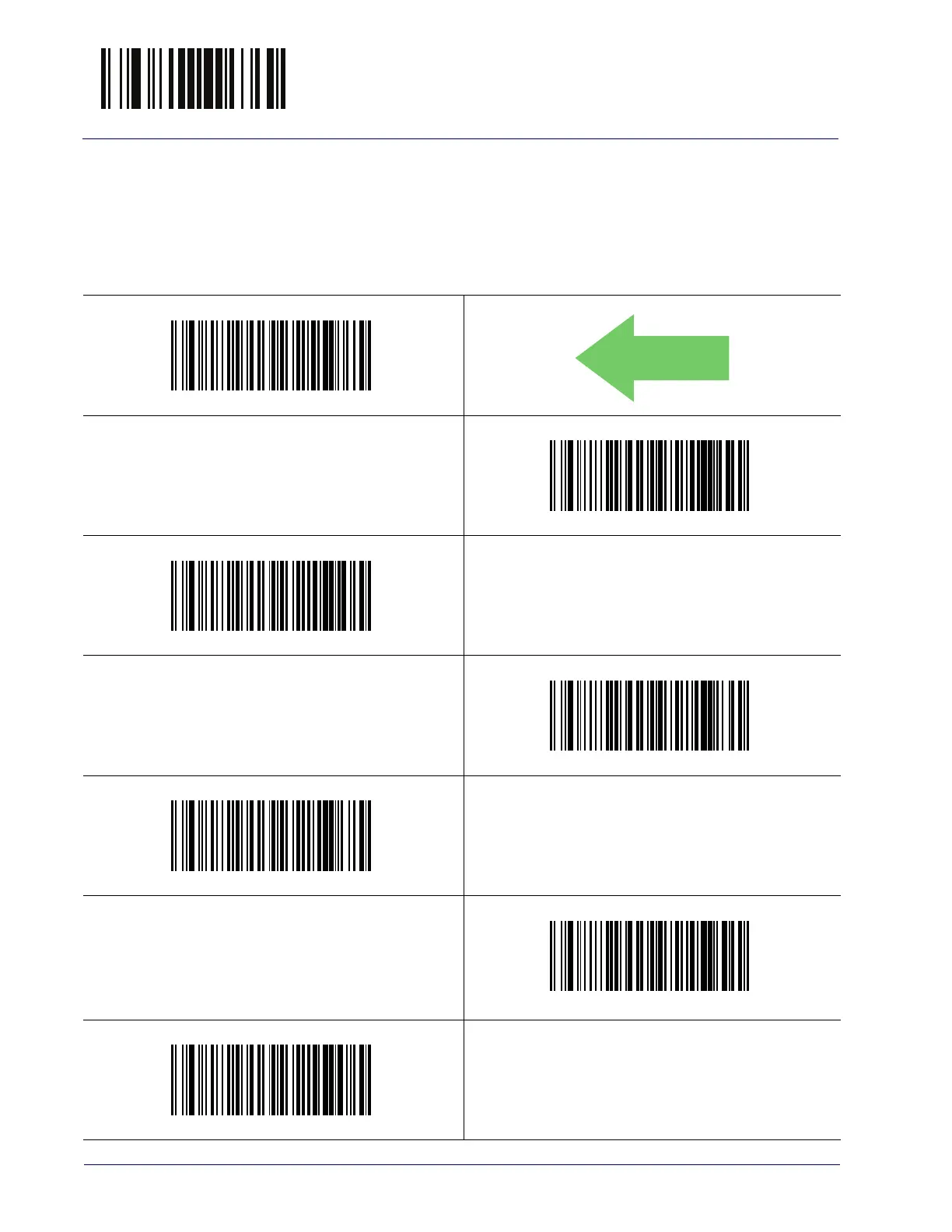

80 QuickScan™ I QM21X1 / QBT21X1

Scanning Features

Scan Mode

See "Scan Mode" on page 299 for more detailed programming instructions.

$CSNRM00

Scan Mode = Trigger Single

$CSNRM01

Scan Mode = Trigger Hold Multiple

$CSNRM02

Scan Mode = Trigger Pulse Multiple

$CSNRM03

Scan Mode = Flashing

$CSNRM04

Scan Mode = Always On

$CSNRM05

Scan Mode = Autosense

Stand Mode

$CSNRM06

Scan Mode = Trigger Object Sense

DEFAULT

Default Chapter3
