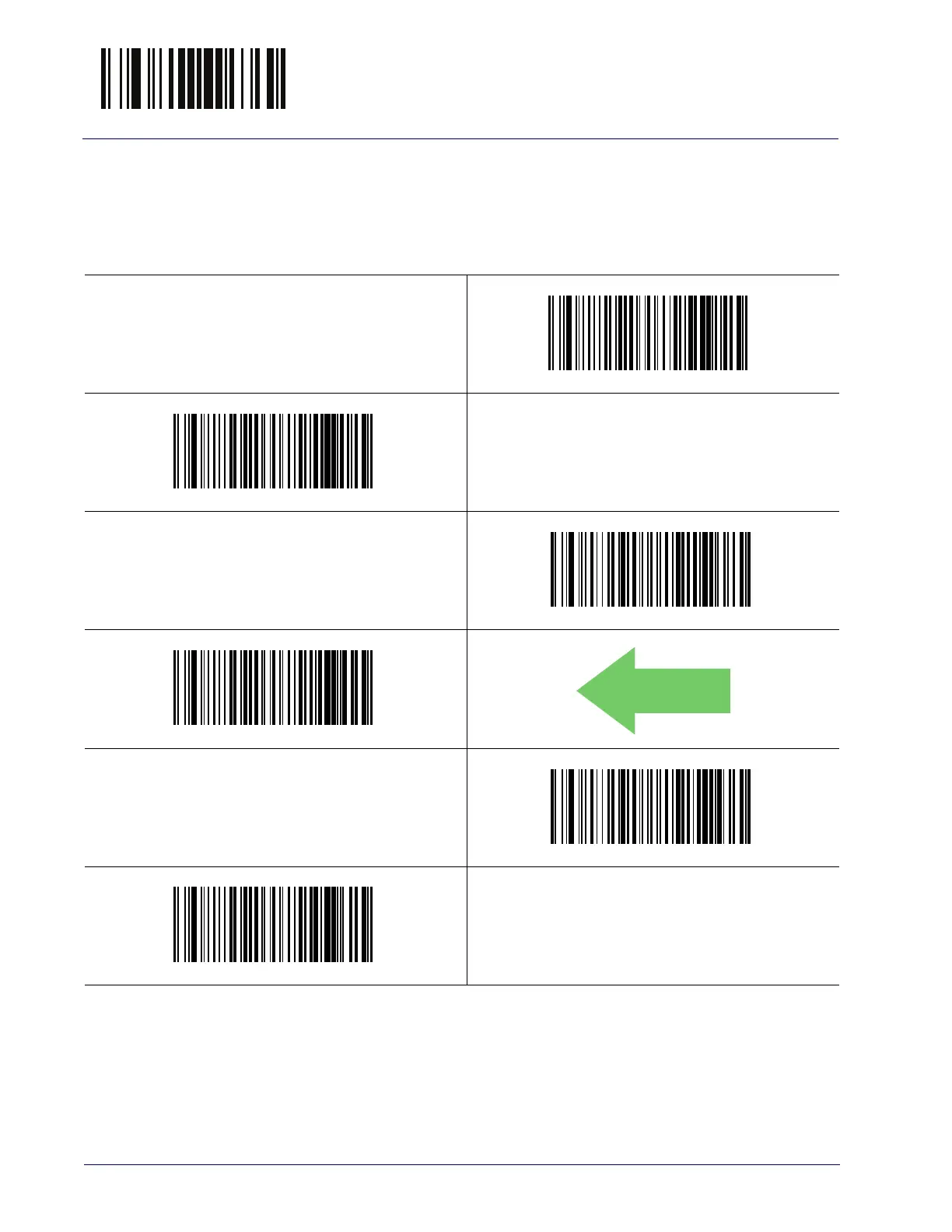

Enter/Exit Programming Mode Baud Rate

26 QuickScan™ I QM21X1 / QBT21X1

Baud Rate

Baud rate is the number of bits of data transmitted per second. Set the reader's

baud rate to match the baud rate setting of the host device. With an improper

baud rate setting, data may not reach the host correctly.

$CR2BA00

Baud Rate = 1200

$CR2BA01

Baud Rate = 2400

$CR2BA02

Baud Rate = 4800

$CR2BA03

Baud Rate = 9600

$CR2BA04

Baud Rate = 19,200

$CR2BA05

Baud Rate = 38,400

DEFAULT

Default Chapter3
