Plessey Set Length 2
This feature specifies one of the barcode lengths for Plessey Length Control on
page 248. Length 2 is the maximum label length if in Variable Length on page
302 Mode, or the second fixed length if in Fixed Length on page 302 Mode.
Length includes the barcode’s check, data, and full-ASCII shift characters. The
length does not include start/stop characters.
The length can be set from 1 to 50 characters. A setting of 0 specifies to ignore
this length (only one fixed length).
Table 4 provides examples for setting Length 2. See page 303 for detailed
instructions on setting this feature.

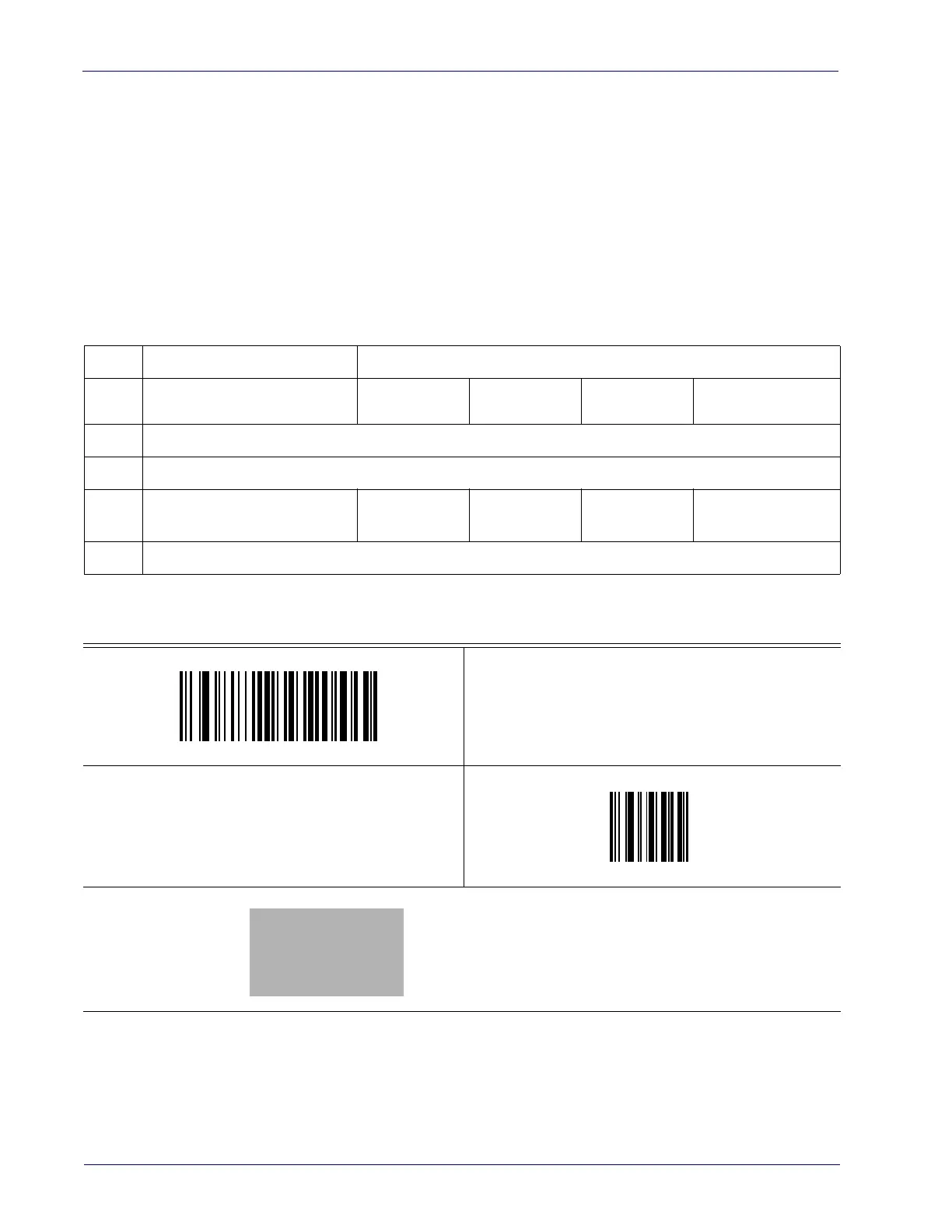

Table 4. Plessey Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT PLESSEY LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Plessey Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
save the entry string. You can then start again at the beginning.
CANCEL
50 = Length 2 is 50 Characters
To Next Page
