Enter/Exit Programming Mode Datalogic 2 of 5

168 QuickScan™ I QM21X1 / QBT21X1

Datalogic 2 of 5

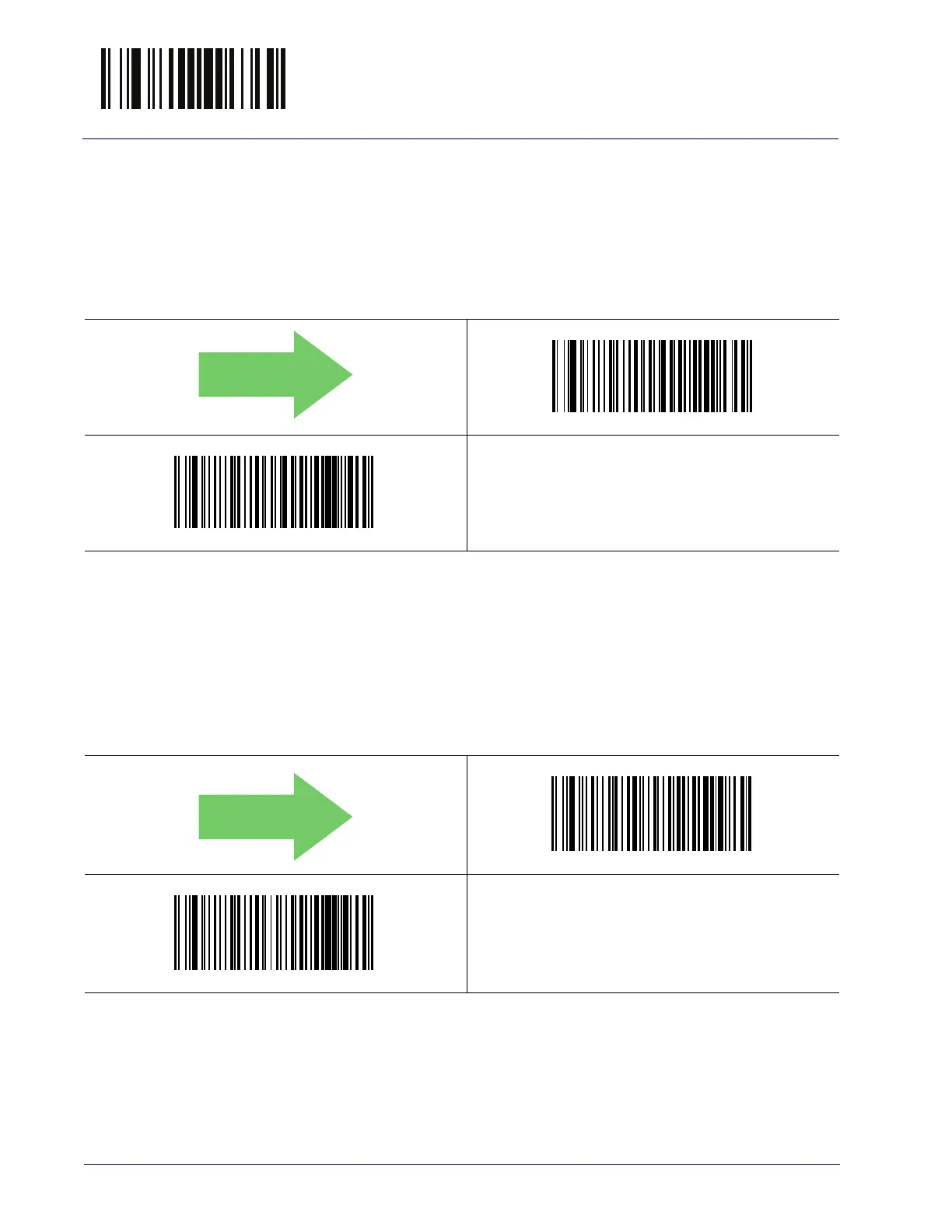

The following options apply to the Datalogic 2 of 5 symbology.

Datalogic 2 of 5 Enable/Disable

When disabled, the reader will not read Datalogic 2 of 5 bar codes.

Datalogic 2 of 5 Check Character Calculation

This option enables/disables calculation and verification of an optional Data-

logic 2 of 5 check character.

$CD2EN00

Datalogic 2 of 5 = Disable

$CD2EN01

Datalogic 2 of 5 = Enable

DEFAULT

$CD2CC00

Datalogic 2 of 5 Check Character Calculation = Disable

$CD2CC01

Datalogic 2 of 5 Check Character Calculation = Enable

DEFAULT
