Chapter 6 Description of Operations
PAGE 6-32

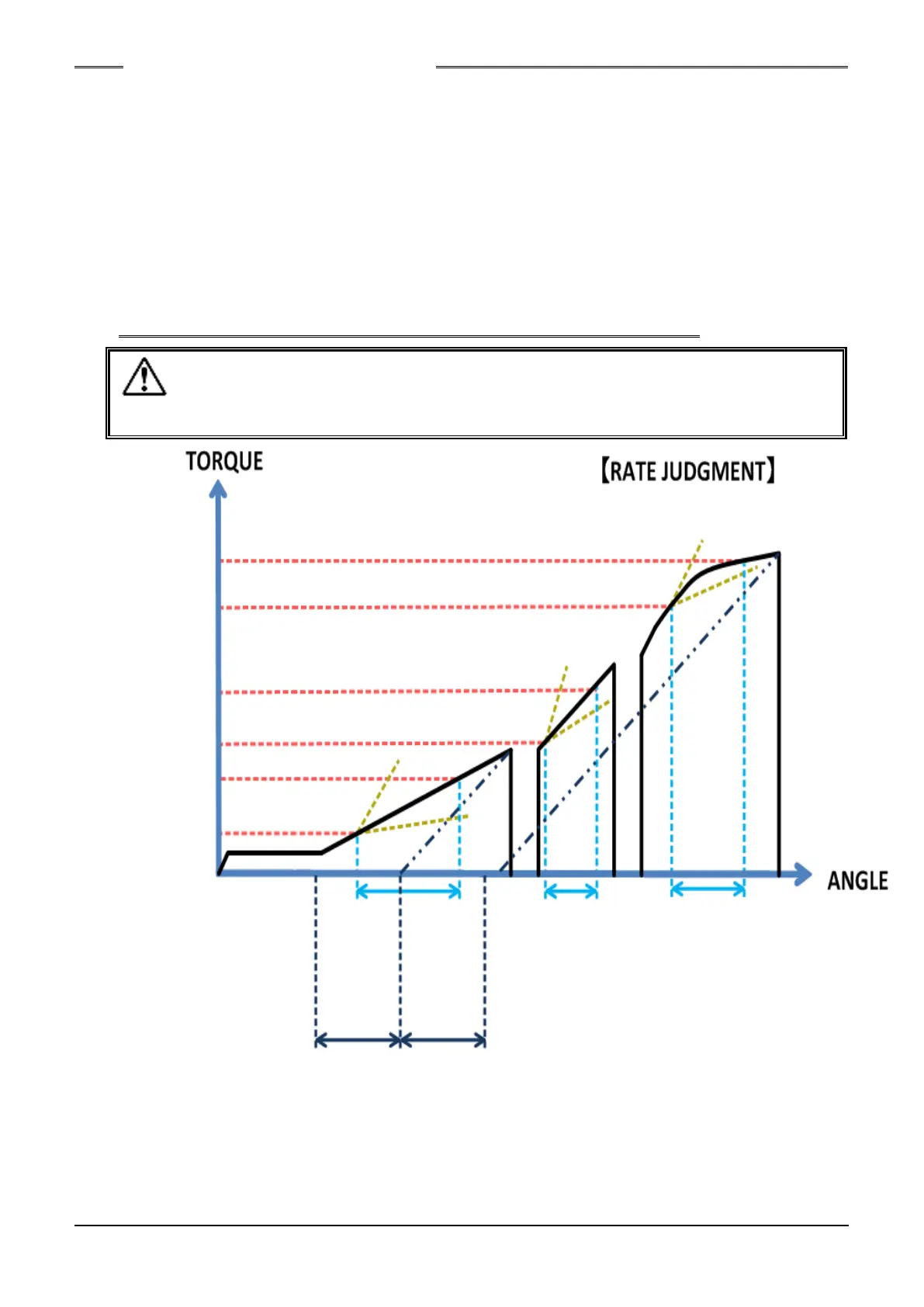

●Rate Check
Three rates can be used to monitor the fastening operation during the fastening operation.
A rate start torque (angle) and a rate end torque (angle) are set and the torque slope (slope of the
torque vs. angle) between the two points at the point at which the rate end torque (angle) is attained is
measured to make the judgment. (Example: 25N•m÷100deg=0.25N•m/deg).
The fastening operation is ended when the measurement value of each rate falls outside the the high
and low limit ranges.
The start torque (angle) and end torque (angle) of the respective rates can be set freely without any
relation to the order of the rates and the set values of the other rates.
* Since there are notes on rate determination on the next page, please read one.
[To Customers Using the FUSION Handheld Nutrunner System]
There are D-Nos. that are changed in name and function. Please perform setting with
reference to the correspondence table on the following page.
117: Rate 3
End Torque
116: Rate 3
Start Torque
115: Rate 2
End Torque
114: Rate 2
Start Torque
113: Rate 1
End Torque
112: Rate 1
Start Torque
305: Rate 3 High Limit
206: Differential + Angle
207: Differential - Angle
Caution
304: Rate 3 Low Limit
301: Rate 1 High Limit
302: Rate 2 Low Limit
303: Rate 2 High Limit
300: Rate 1 Low
Limit
