Chapter 6 Description of Operations
PAGE 6-45

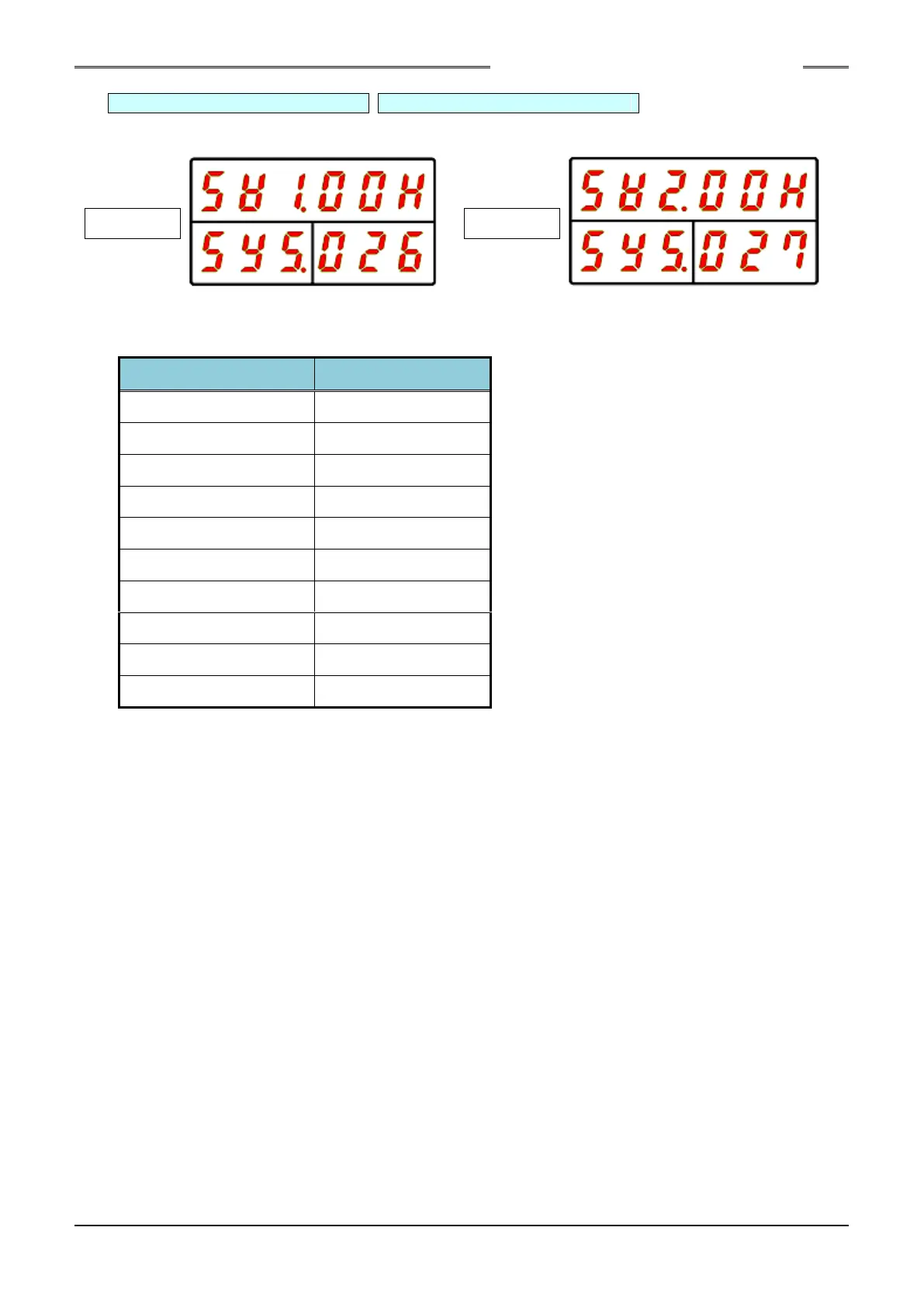

SYS.026 Unit SW1 Setting State SYS.027 Unit SW2 Setting State
The setting states of the switch on the Unit (the SW1 and the SW2 switch on the Unit bottom panel)
are indicated.
The ON/OFF states of SW No. 1 ～ No. 8 are indicated in 8-bit hexadecimal code in the part in
which “00H” is indicated in the drawing above.
SW setting examples
Indication examples
All OFF
00H
Only No. 1 ON
01H
Only No. 2 ON
02H
Only No. 3 ON
04H
Only No. 4 ON
08H
Only No. 5 ON
10H
Only No. 6 ON
20H
Only No. 7 ON
40H
Only No. 8 ON
80H
All ON
FFH
D-No.026
D-No.027
S0140185-H
