Chapter 6 Description of Operations
PAGE 6-53
(6) Option Information 2
SYS.400 CF Card Storage Capacity [MB]
The storable capacity of the CF card is indicated.
(Units are displayed as "%" in Controller Software Version 1.209 or earlier)
SYS.401 RS232C-2 Communication Speed [bps]
The communication speed of the RS232C-2 interface is indicated.
SYS.402 RS232C-2 Parity
The parity of the RS232C-2 interface is indicated.
SYS.403 RS232C-2 Stop Bit [bit]
The stop bit of the RS232C-2 interface is indicated.
SYS.404 RS232C-2 Data Length [bit]
The data length of the RS232C-2 interface is indicated.
SYS.405 Not use
SYS.406 Not use
SYS.407 Not use
SYS.408 Not use
SYS.409 ID Input Selection
The selected ID input method is indicated (Fieldbus/RS232C-2).
SYS.410 Add STX,ETX
When ID Data input select is RS232C - 2, it indicates whether to add STX or ETX to data output.

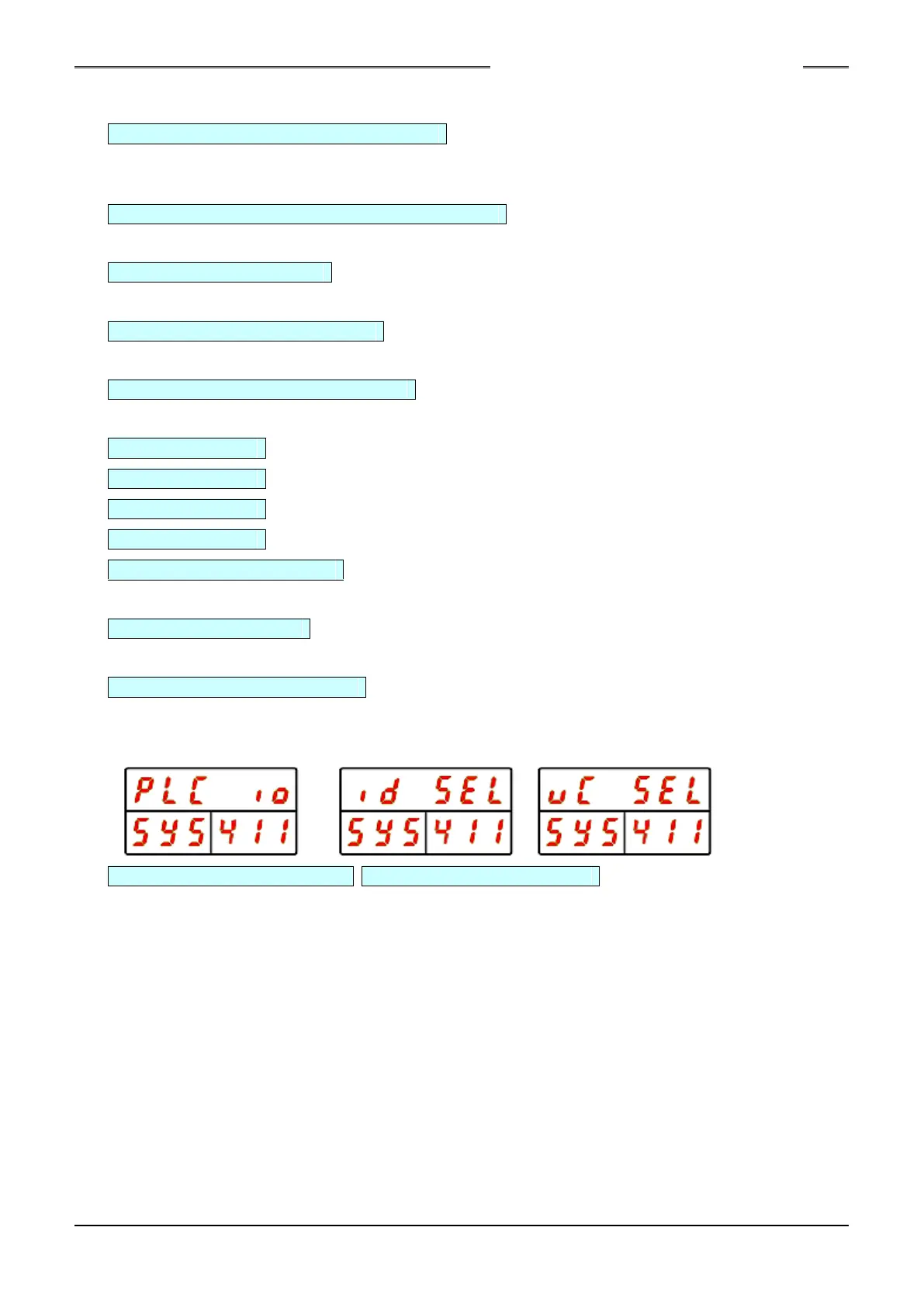

SYS.411 External Input Select
Displayed Work Number the selection method.
・PLC Input Signal ・ID input ・HFC3000 Software
SYS.412 Reference Data Start SYS.413 Reference Data end
When External Input Select is ID input, Displayed the start and end position of ID data used for
identification of Work number. Set the Reference Data End to the same value or larger than the
Reference Data Start.
In addition, the work number identification string (model name) can be set only on the user
console.
