Chapter 6 Description of Operations
PAGE 6-10

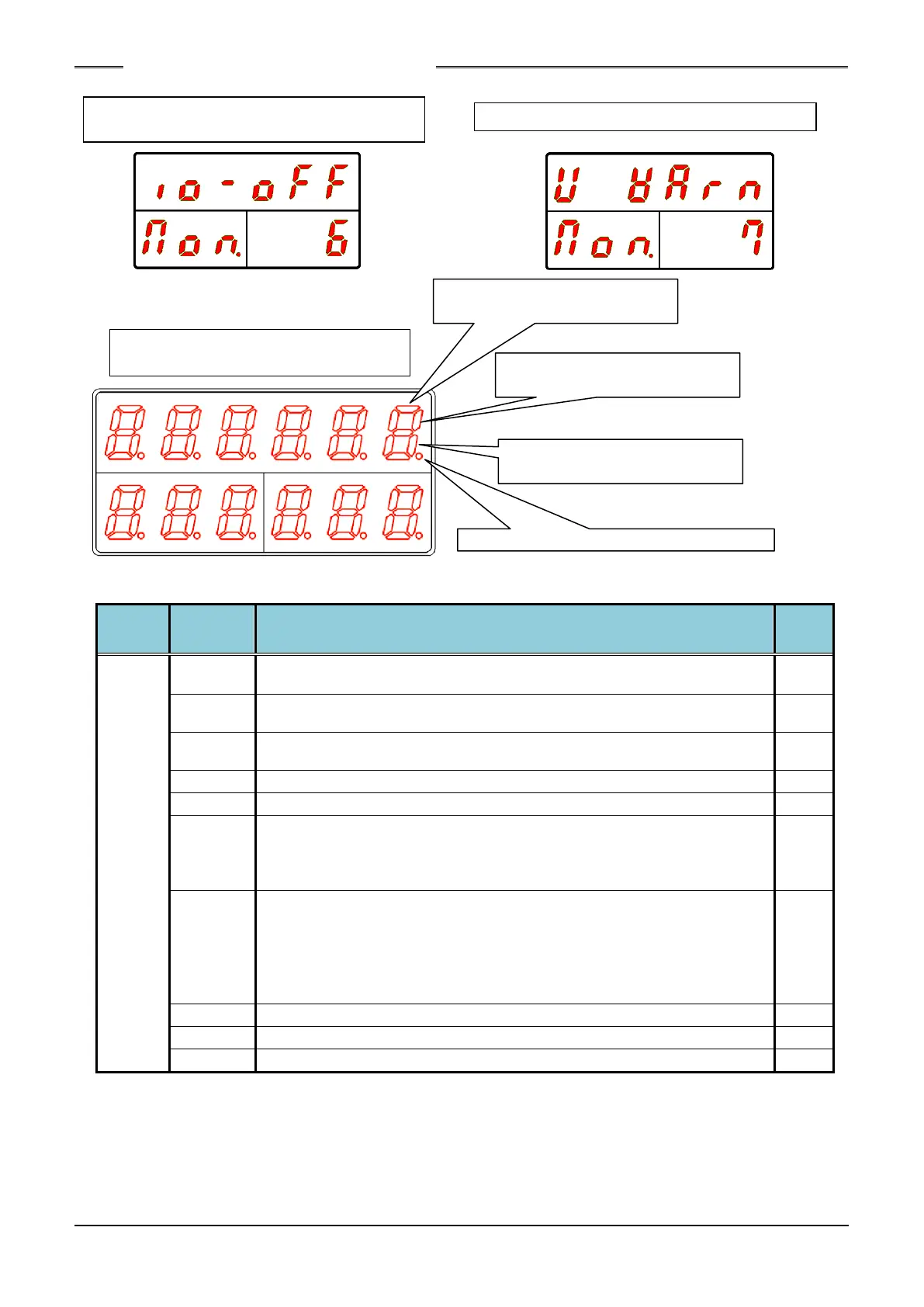

●List of Contents Indicated in the Real Time Mode(2/2)
WORK
COUNT/
D-NO
DATA
Units
Mon
11
[Tool Response•Ad1.] (0~255)
The actual level value of the starting trigger switch is indicated.
Digit
12
[Tool Response•Ad2.] (0~255)
The actual level value of the F/R slide switch is indicated.
Digit
13
[Tool Response•G. Gyrosensor Shake Detection Angle]
-2048° ~ +2047°
Deg
14~17
[Used for in-house adjustment] (0~255)
Digit
18
[Tool Command•Gan. Gyro Restriction Angle] (0~255)
Deg
19
[Fieldbus•Status Monitor•FbS]
Fieldbus connection condition: In the normal state, “4” is indicated.
Any other indication indicates an unconnected state
(the STOP mode is entered and operation is disabled).
-
20
[Angle Head Torque Variation [%]]
Displays the current torque variation rate of the angle head after the
fastening operation.
When the rate exceeds the value set in D-No.541“[Angle Head
Torque Variation]”, A.09-10 “Angle Head Torque Variation Abnormal”
occurs.
%
21
[Used for in-house adjustment]
-
22~23
[Used for in-house adjustment]
Digit
24~25
[Used for in-house adjustment]
-
D-No. 006: External I/O Disabling Function
(SW2: Pin No. 6 is ON)
D-No. 7: ZERO/CAL Voltage Error Warning
D-No. 006: Simplified I/O Monitor
(SW2: Pin No. 6 is OFF)
Lit up during forced output (all digits).
Standard DI (lit up if ON)
bit0 ... bit11
Standard DO (lit up if ON)
bit0 ... bit11
AUX. DI (lit up if ON)
Batch reset input signal
