4. Product overview
Installation and Operation Manual for RPI M50A
12

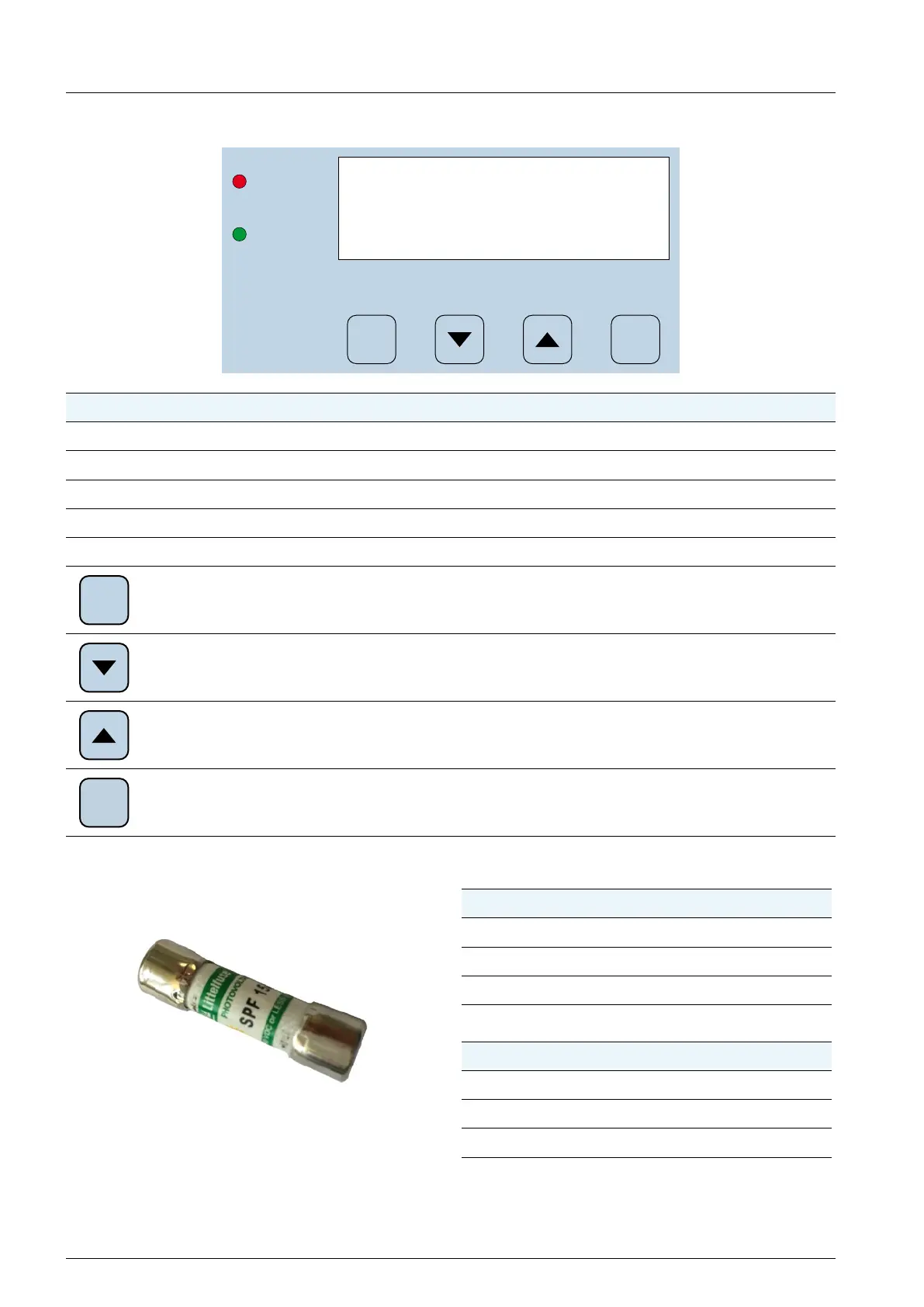

4.3 Display, buttons, status LEDs
ESC ENT
Alarm
Grid
Label Designation Usage
LEDs
Grid Green; lights up when the inverter feeds into the grid
Alarm Red; indicates and error, fault, or warning
Buttons
ESC
Escape Exit current menu. Cancel value setting.
Move down Move downwards in menu. Set value (decrease).
Move up Move upwards in menu. Set a value (increase).
ENT
Enter
Select menu item. Open con gurable value for editing. Finish editing
(adopt set value).
4.4 String fuses
The RPI M50A is equipped with string fuses on the
DC side.
Type
Manufacturer Littelfuse
Part number 0SPF015.T
Rate current 15 A
Rate voltage 1000 V
or
Manufacturer Hollyland
Part number 10GPV15UO
Rate current 15 A
Rate voltage 1000 V
