6 Installation
Installation and Operation Manual for RPI M50A
48
6.8 Wiring communication port 1
6.8.1 First steps for all cables
Because all communication cables are connected
to the same communication port, you should do the
complete wiring at once.

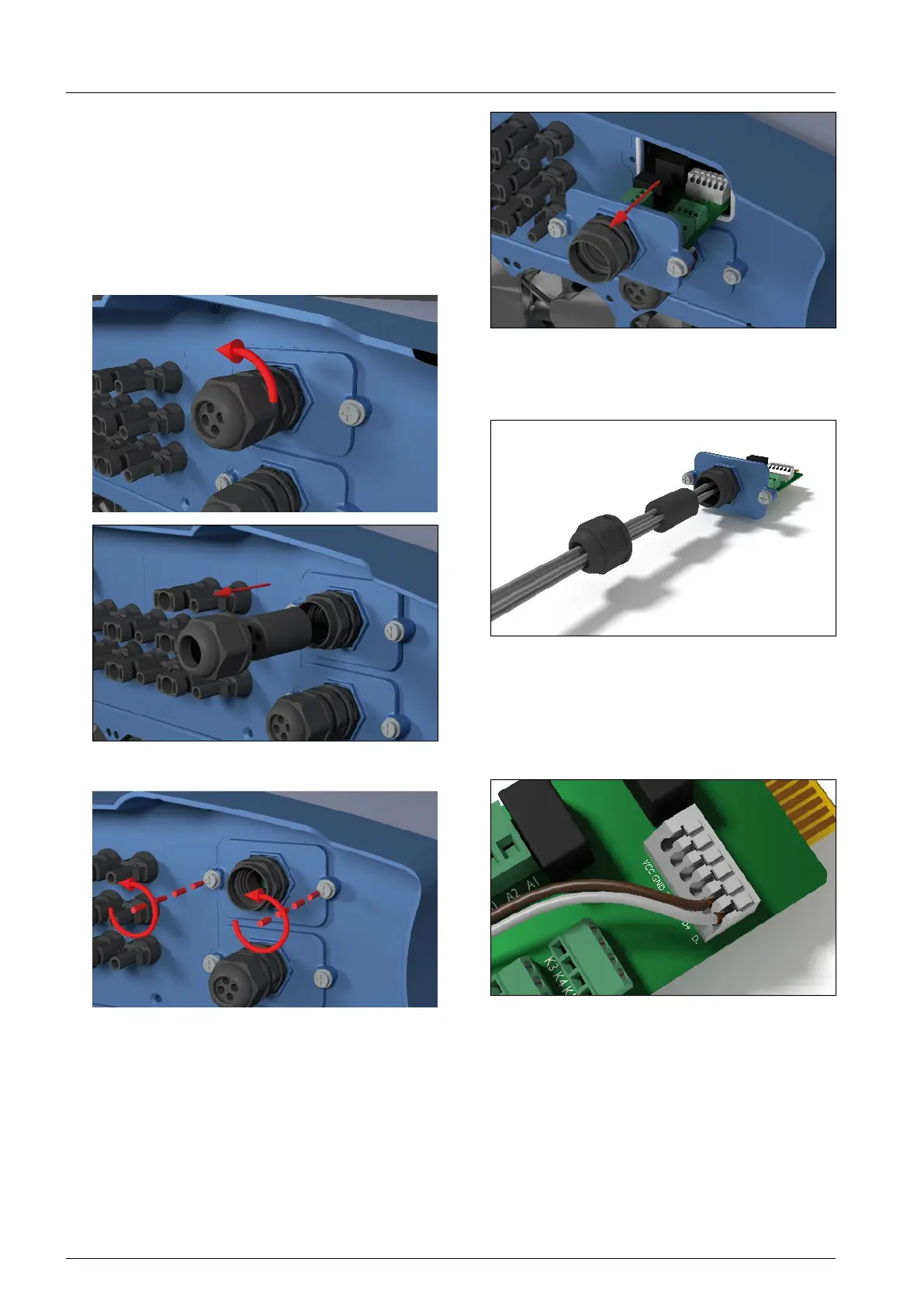

1. Unscrew and remove the bolting.
2. Unscrew and remove the cover.
3. Pull all cables you want to connect through the
bolting.
6.8.2 Wiring a single inverter for RS 485
Wiring RS 485 depends on whether you want to con-
nect a single or multiple inverters.
1. Connect the two wires to Pin D- and Pin D+.
