Installation and Operation Manual for RPI M50A
5 Planning the installation
5.8.4 Using DC1 and DC2 with only one MPP tracker
When you want to use DC1 and DC2 with only one MPP tracker, you have to prepare the inverter as shown in
Fig. 5.19, p. 31.
Because you have to remove the cover of the fuse section, you should do this before you hang the inverter on
the wall and do it in a dry environment.
DC 1+
DC 2+
DC1-
DC2-

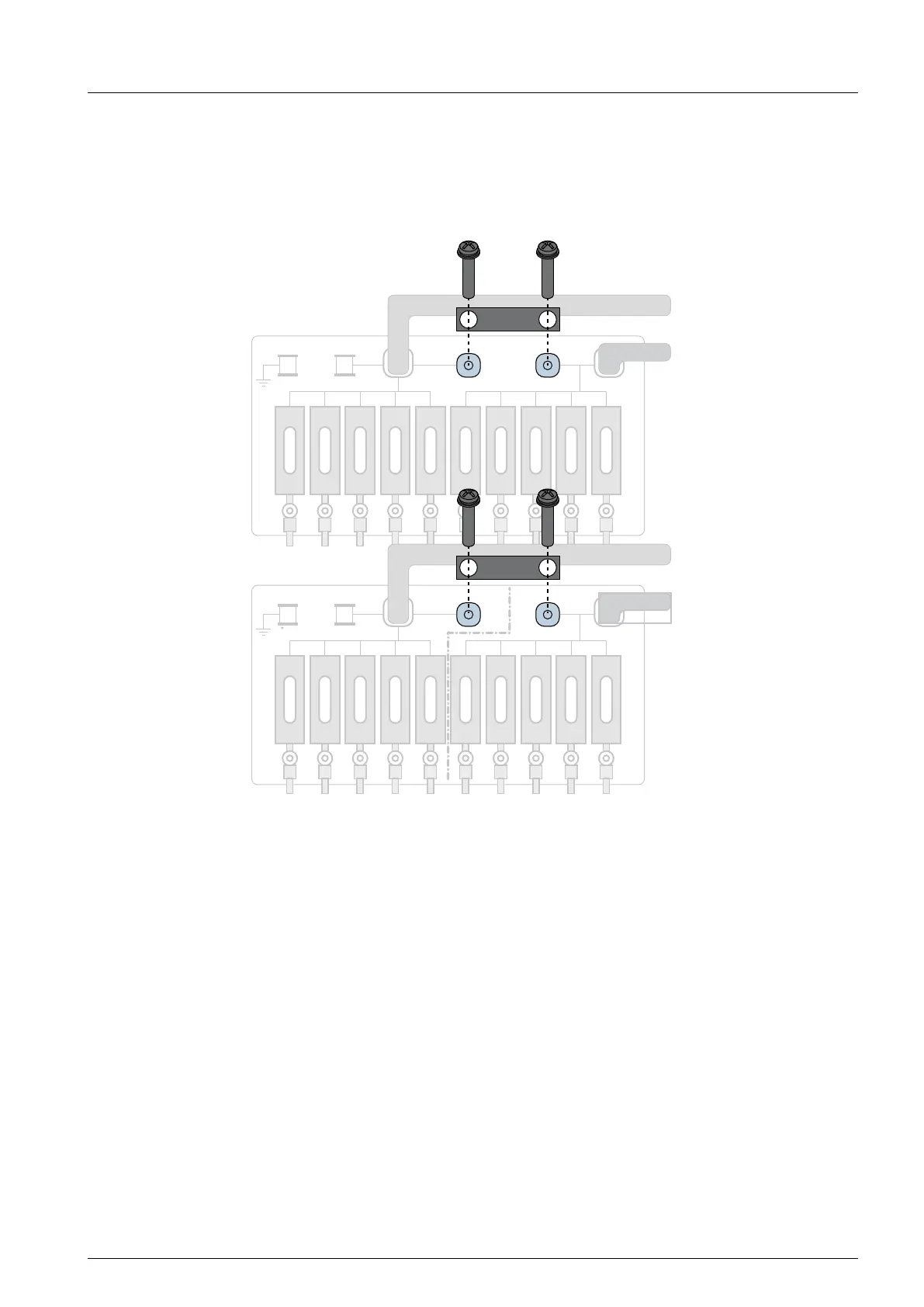

Fig. 5.19: Preparing the inverter for use with only one MPP tracker
