5 Planning the installation
Installation and Operation Manual for RPI M50A
30
Installation and Operation Manual for RPI M50A
30
DC 1+
DC 2+
DC1-
DC2-
2 x
1 x
DC bus barsFuse holder
+
Grounding fuse (1 A)

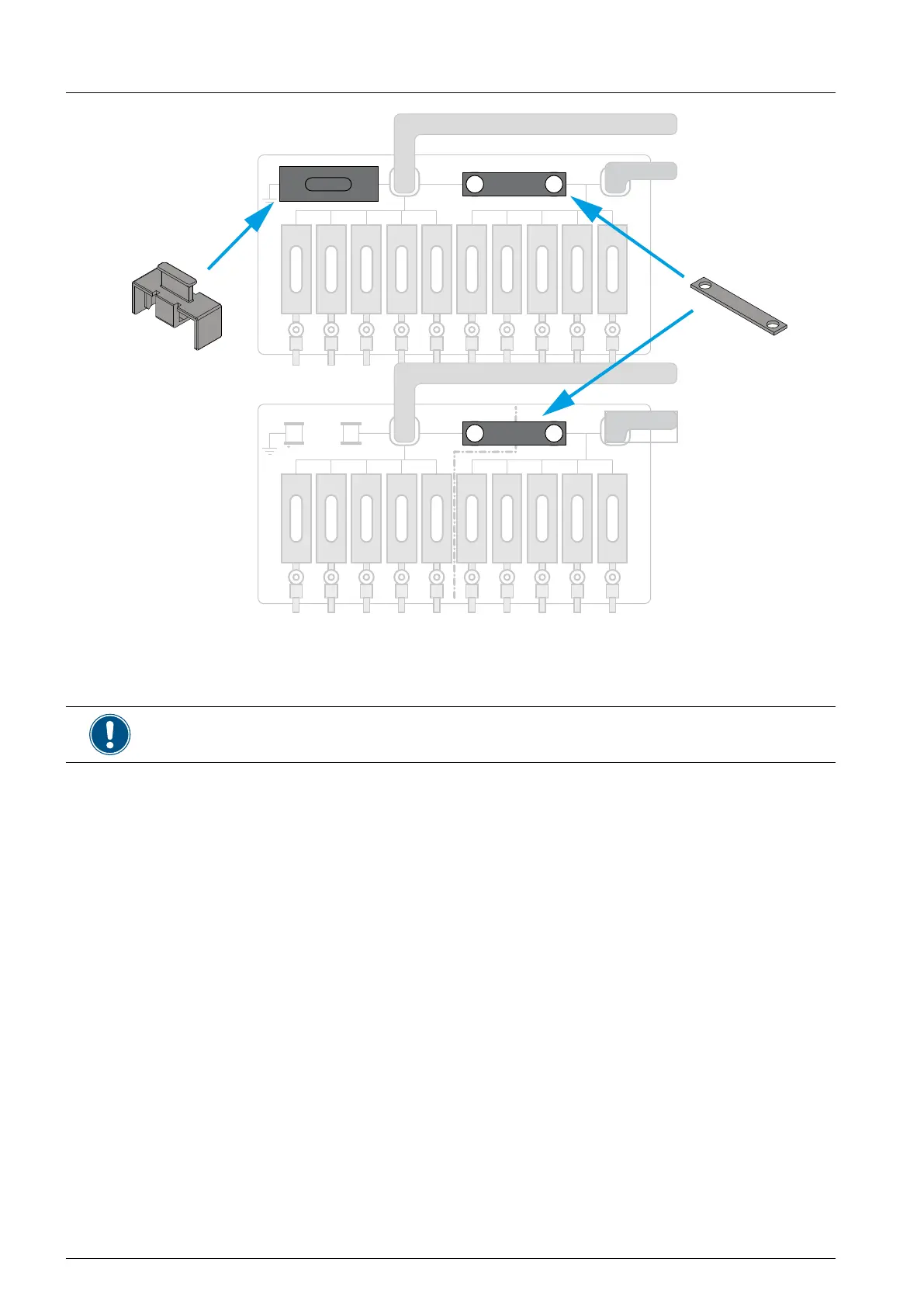

Fig. 5.18: Preparing the inverter for use with plus grounded solar modules
Fuse holder and DC bus bars are delivered with the inverter. The screws are already fastened
inside the inverter. You have to provide a grounding fuse with 1 A.
