5 Planning the installation
29
Installation and Operation Manual for RPI M50A
DC 1+
DC 2+
DC1-
DC2-
1 x
1 x
DC bus barFuse holder
+
Grounding fuse (1 A)

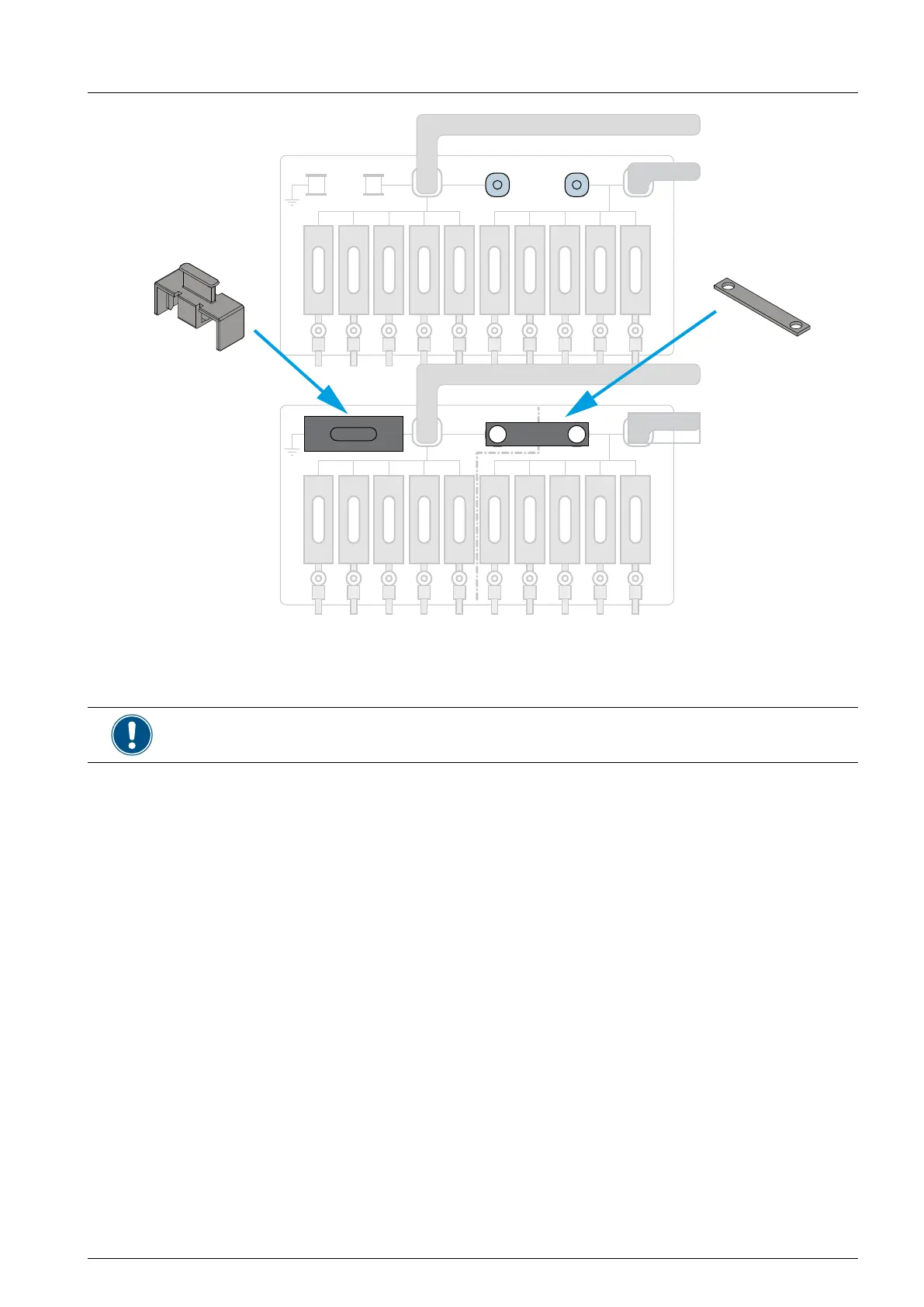

Fig. 5.17: Preparing the inverter for use with minus grounded solar modules
Fuse holder and DC bus bars are delivered with the inverter. The screws are already fastened
inside the inverter. You have to provide a grounding fuse with 1 A.
