Installation and Operation Manual for RPI M50A
4. Product overview
4.8 Information on the type label

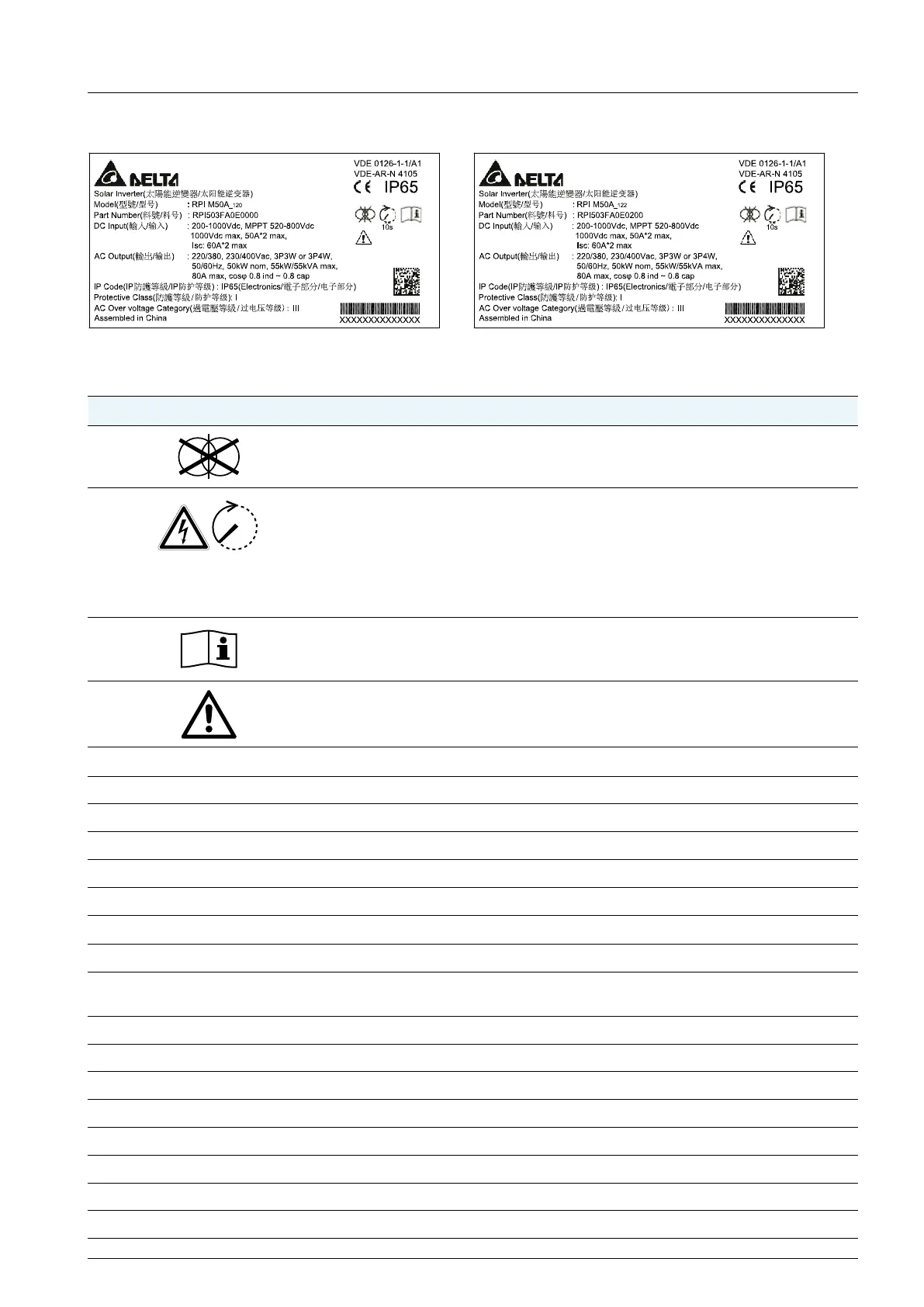

Fig. 4.2: RPI M50A_120 type label Fig. 4.3: RPI M50A_122 type label
Information on type label Description
This inverter has no transformer.
10 s
Risk of death by electrocution
Potentially fatal voltage is present when the inverter is in operation that remains for
10 seconds after being disconnected from power.
Never open the inverter. The inverter contains no components that must be main-
tained or repaired by the operator or installer. Opening the cover will void the war-
ranty.
Read the manual delivered with the inverter before working with the inverter and
follow the instructions contained in the manual.
The housing of the inverter must be grounded if this is required by local regulations.
DC Input
200-1000Vdc DC input voltage range
MPPT 520-800Vdc MPP input voltage range with full power (with symmetrical load)
1000Vdc Maximum DC input voltage
50A*2 max. Maximum DC input current per DC input (50 A for each DC input)
Isc: 60A*2 max. DC short circuit current
AC Output
220/380, 230/400 Vac AC Nominal voltage
3P3W or 3P4W The inverter can be connected to 3-wire systems (3 phases + PE) and 4-wire sys-
tems (3 phases + N + PE)
50/60 Hz AC Nominal frequency
50kW nom. Nominal active power
55kW/55kVA Maximum active/reactive power
80A max. Maximum AC current
cos φ 0.8 ind ~ 0.8 cap Range of cos φ
IP Code: IP65 (Electronics) Protection degree for the electronics according to EN 60529
Protective Class: I Safety class according to EN 61140
AC Over voltage category: III AC overvoltage category according to IEC 62109-1
