Delta RPI M50A_120 - Connecting to the grid (AC)

6 Installation
Installation and Operation Manual for RPI M50A
40
6.4 Connecting to the grid (AC)
Read chapter “5. Planning the installa-
tion”, p. 18 before you start installa-
tion.
What you need
● AC plug (delivered with the inverter)
● AC cable
● Wire ferrules (bootlace pins)
● Crimping tool for wire ferrules
L1
L2
PE
N
L3
L3N
L2
L1
PE
L1
L2PE
L3N

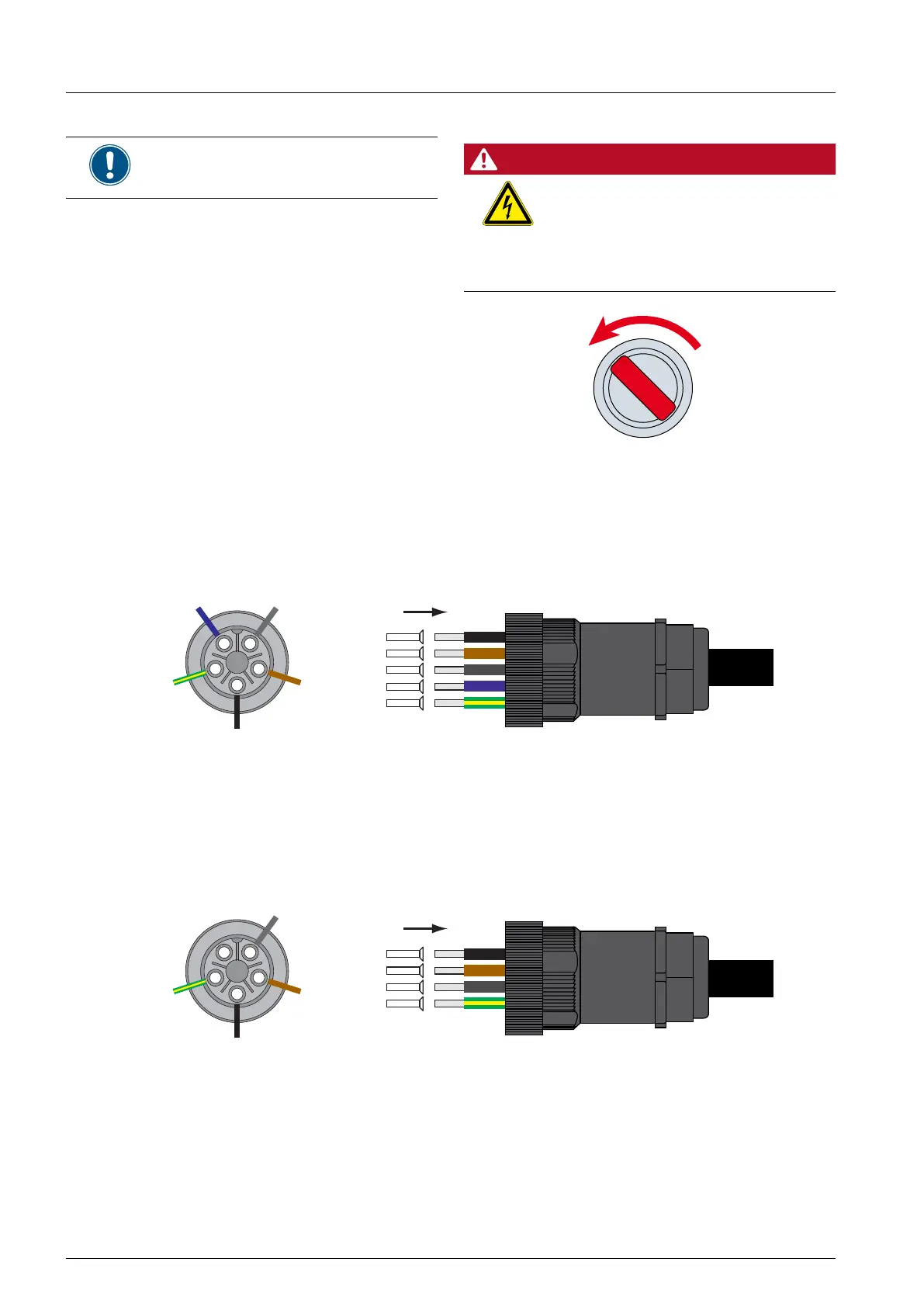

Fig. 6.26: Wiring AC plug for 5-wire systems
L3N
L2
L1
PE
L1
L2PE
L3
L1
L2
L3
PE
Fig. 6.27: Wiring AC plug for 4-wire systems
Wiring for 3P4W grid systems: 3 phases with 5 wires (L1, L2, L3, N) + PE
Wiring for 3P3W grid systems: 3 phases with 4 wires (L1, L2, L3) + PE
Use wire end sleeves (bootlace pins) on each wire.
Use wire end sleeves (bootlace pins) on each wire.
Important information regarding safety
DANGER
Risk of death or serious injury from
electrocution
► Set the AC/DC disconnection switch
to position OFF before connecting
or disconnecting the AC plug to the
inverter.
DISCONN AC/DC
OFF ON
