6 Installation
Installation and Operation Manual for RPI M50A
44

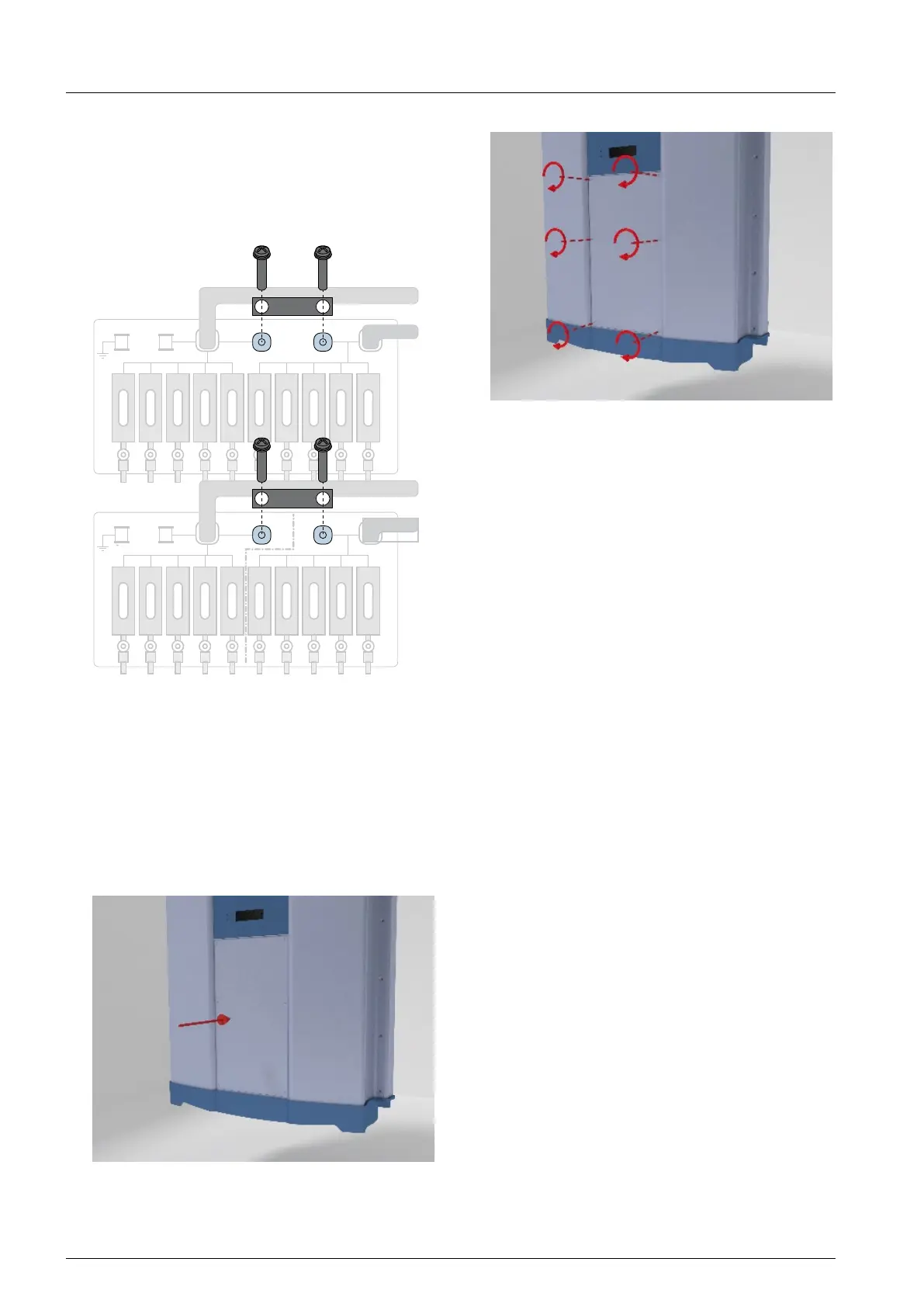

3. Mount one DC bus bar to connect the DC1+ bar
and the DC2+ bar.
Mount the other DC bus bar with two DC bar
screws to connect the DC1– bar and the DC2–
bar.
DC1+
DC2+
DC1-
DC2-
4. Put the cover on the fuse section and screw it
tightly with all six screws.
To ensure protection degree IP65, take care that
– the cover is correctly positioned and seals the
fuse section,
– the rubber at the fuse cover is not damaged or
dirty.
5. Fasten the six screws to the fuse section cover.
