6 Installation
Installation and Operation Manual for RPI M50A
46
Switch for VCC and termination resistor
VCC
Termination
resistor

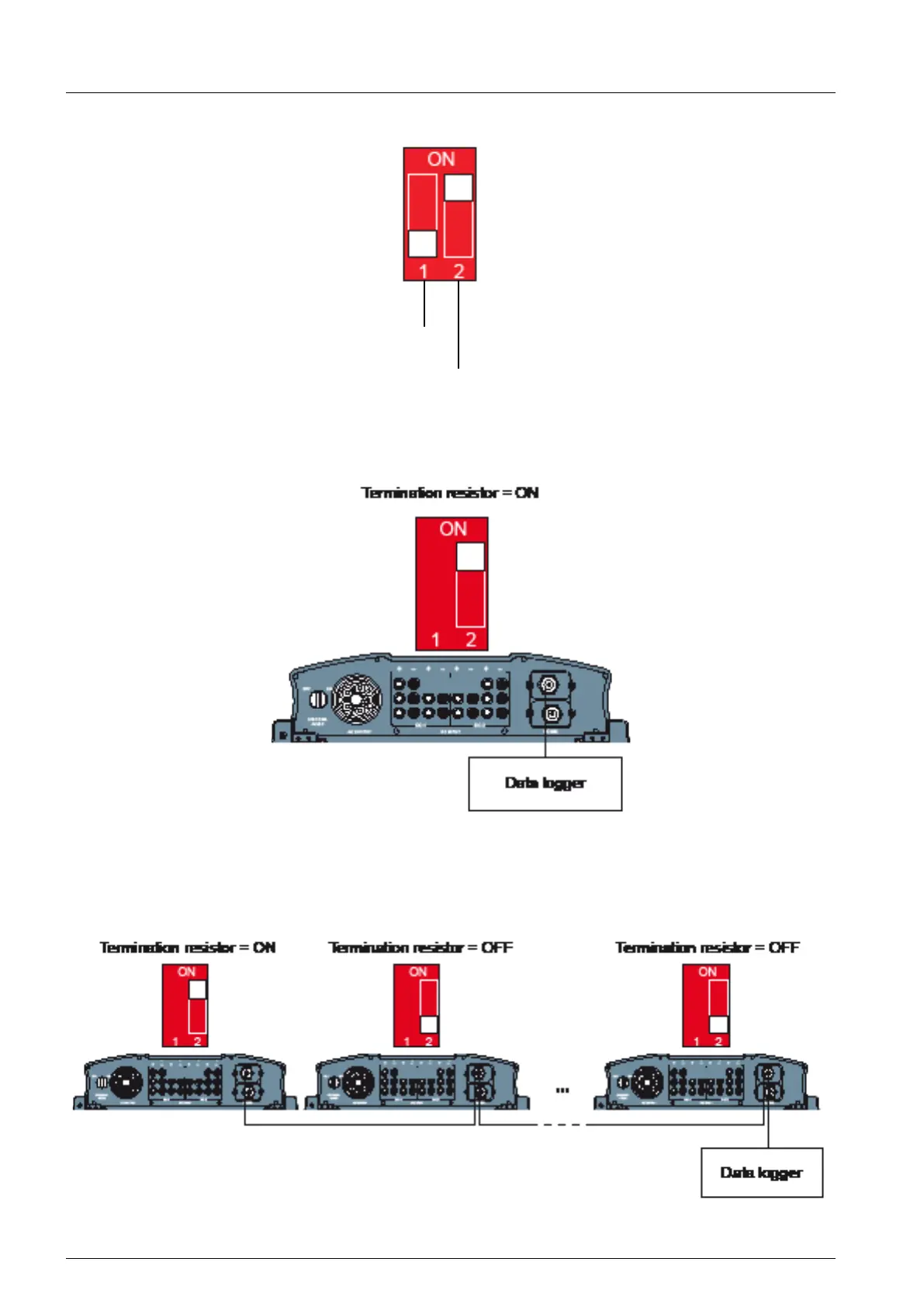

Connecting a single inverter to a datalogger
Connecting multiple inverters to a datalogger
If your datalogger has no integrated termination resistor, switch on the termination resistor on the rst inverter in
the RS485 line.
