Denon AVR-1709 Owner's Manual

ENGLISH
S-Video connections
Component video cable
~(Y)
~(PB/CB)
-UJL..I~ ~(PR/CR)
Video cables
Component video connections
(Green) ~
(Blue) ~
(Red) ~
Preparations
Optical cable
Audio cables
Optical digital connections
I!£jJ (J~-------lG [[j]
Coaxial digital connections
(Orange)~ ~ ~
Coaxial digital (75 O/ohms pin-plug) cable
Select the cables according to the equipment being connected.

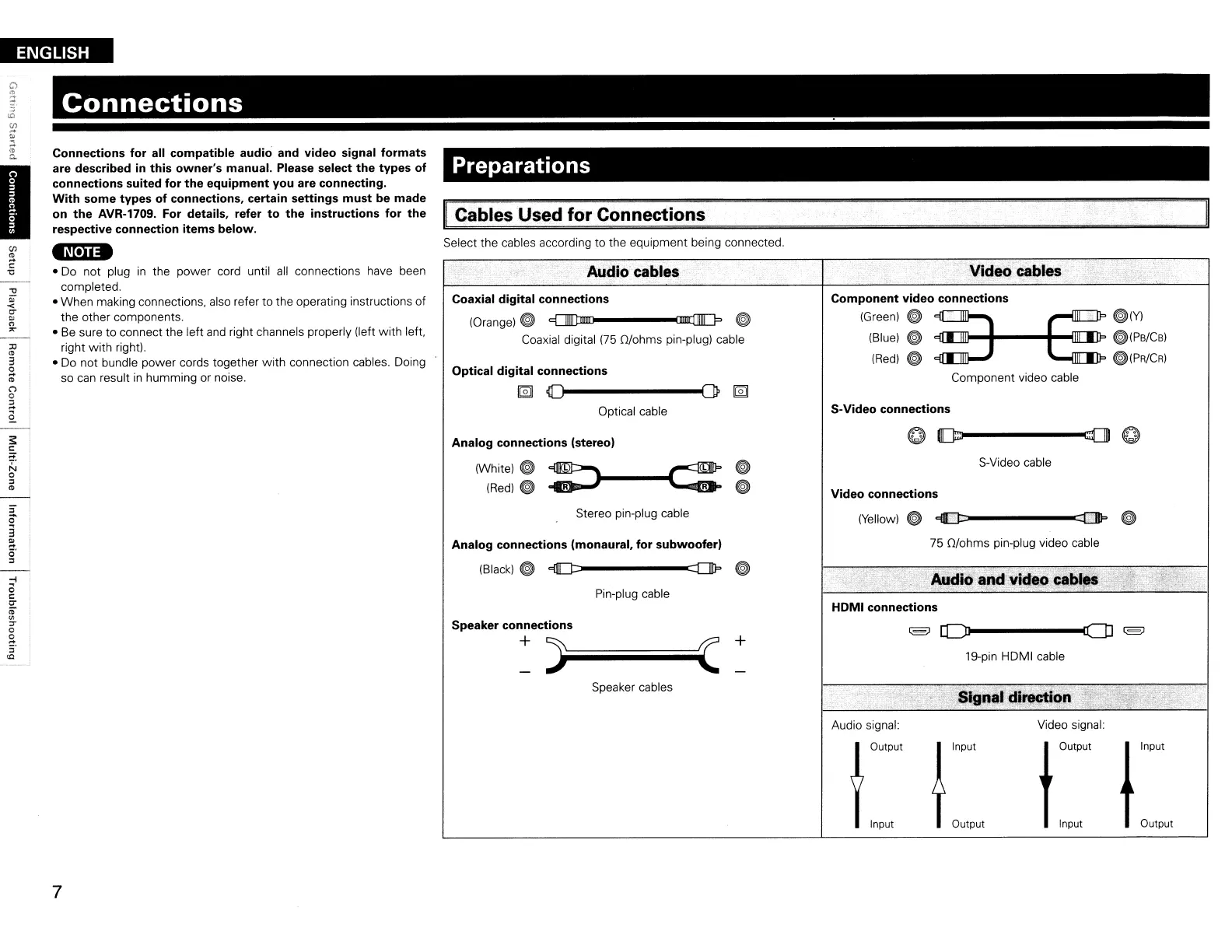

ICables Used for Connections
Connections
Connections for all compatible audio and video signal formats
are described
in this owner's manual. Please select the types of
connections suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the AVR-1709. For details, refer to the instructions for the
respective connection items below.
-M·jia
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the operating instructions of
the other components.
• Be sure to connect the left and right channels properly (left with left,
right with rightl.
• Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
I
s
c::
~
N
o
:>
'" i
Analog connections (stereo)
(White) ~
(Red) e
S-Video cable
Video connections
Stereo pin-plug cable
(Yellow) G ef(J:::-------=::cJp ~
Analog connections (monaural, for subwoofer)
75 O/ohms pin-plug video cable
(Black) ~ 9l[]:::-------::[]P ~
Pin-plug cable
Speaker connections
+ )iIiiiiiiiiiiiii~(
+
Audio and video cabl,s
HOMI connections
l:§l O~-----O l:§l
19-pin HDMI cable
Speaker cables
.Signal direction
Audio signal: Video signal:
t O"~" } '00"'
to"""'
f "'"'
Input Output Input Output
7

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
