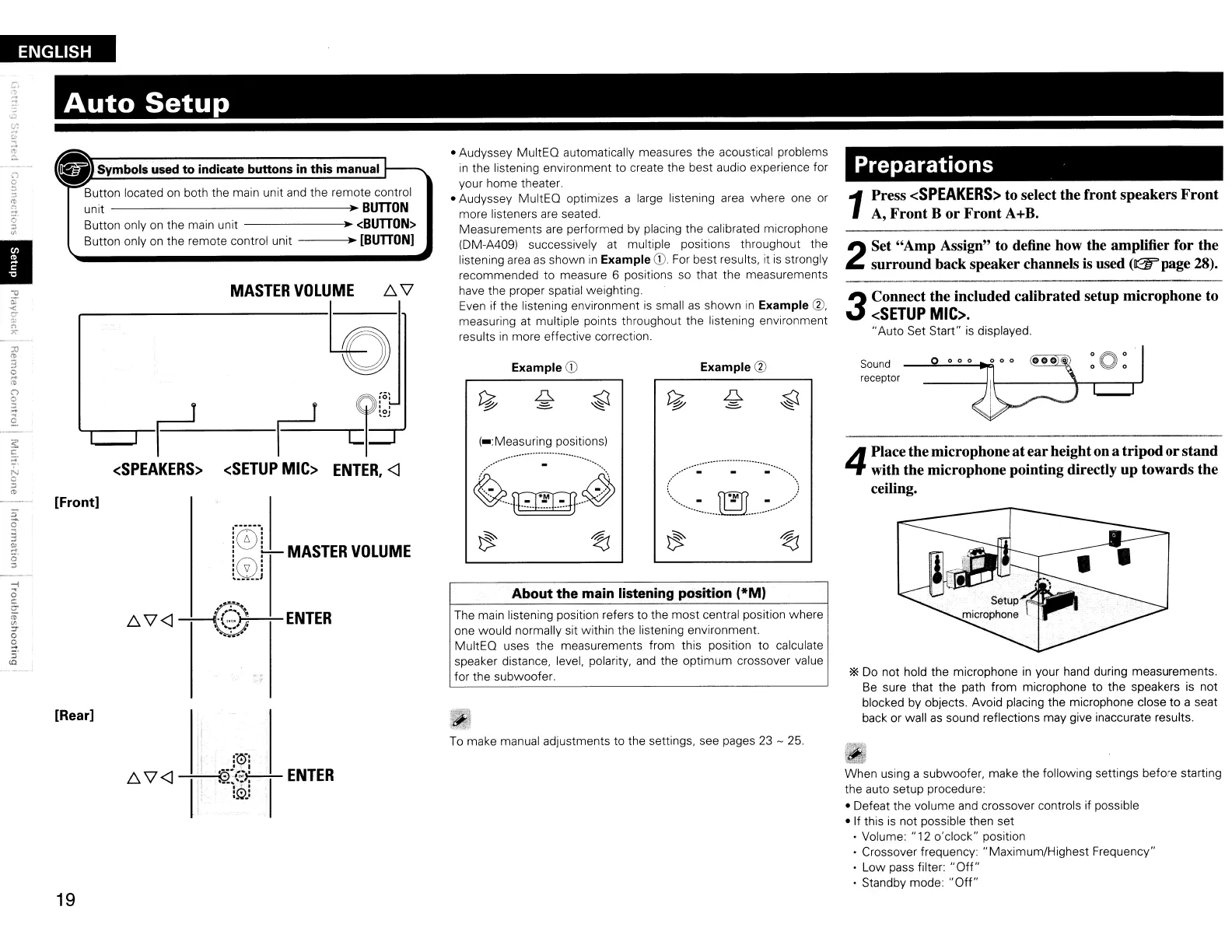

ENGLISH
1
Press
<SPEAKERS>
to select the front speakers Front
A, Front B or Front A+B.
"*
Do not hold the microphone
in
your hand during measurements.
Be
sure that the path from microphone to the speakers is not
blocked by objects. Avoid placing the microphone close to a seat
back or wall
as
sound reflections may give inaccurate results.
2
Set "Amp Assign" to define how the amplifier for the
surround back speaker channels is used (lI3f'page 28).
3
Connect the included calibrated setup microphone to
<SETUP
MIC>.
"Auto Set Start"
is
displayed.
Sound
receptor
Preparations
4
Place the microphoneatearheight on a tripod orstand
with the microphone pointing directly up towards the
ceiling.
Example
CV
........
:..
: .
~
\
(······
...
:
.....
.l~L
...
~
...
······/
Example
CD
(-:Measuring positions)
About the main listening position
(*M)
The main listening position refers to the most central position where
one would normally sit within the listening environment.
MultEO uses the measurements from this position to calculate
speaker distance, level, polarity,
and
the optimum crossover value
for the subwoofer.
Audyssey MultEO automatically measures the acoustical problems
in
the listening environment to create the best audio experience for
your home theater.
Audyssey MultEO optimizes a large listening
area
where one or
more listeners
are
seated.
Measurements
are
performed
by
placing the calibrated microphone
(DM-A409) successively at multiple positions throughout the
listening
area
as
shown
in
Example
CD.
For
best results, it
is
strongly
recommended to measure 6 positions so that the measurements
have the proper spatial weighting.
Even
if the listening environment
is
small
as
shown
in
Example
(1),
measuring at multiple points throughout the listening environment
results
in
more effective correction.
.4:
CJrL;'
<SPEAKERS>
<SETUP
MIC>
ENTER,
<l
:"?::\-:
'~I
1
r-
MASTER
VOLUME
:G):
~_.~
__
l
D.
"V
<I
+@
ENTER
MASTER
VOLUME
D.
"V
~
'-r-------r-F-F
~[::
Auto
Setup
Symbols used
to
indicate buttons in this manual
Button located
on
both the main unit
and
the remote control
unit
BUTTON
Button only
on
the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
[Front]
[Rear]
I
,
:~:
D.
"V
<l
~~(~~I
ENTER
l
:~.:
19
To
make manual adjustments to the settings, see pages 23 -
25.
S
When using a subwoofer, make the following settings before starting
the auto setup procedure:
Defeat the volume
and
crossover controls if possible
If this
is
not possible then set
· Volume: "12 o'clock" position
· Crossover frequency: "Maximum/Highest Frequency"
· Low pass filter:
"Off"
· Standby mode:
"Off"
