Denon AVR-1709 Owner's Manual

ENGLISH
The audio signal input to
the
HOM I input connector
cannot be played on the
AVR-1709, Input the audio
signal to the digital audio
input connector or analog
audio input connector.
•
J
HOMI
OUT
OVO player
--AUDIO--
AUDIO COAXIAL
OUT OUT
L A
~~ ~
DVD Player

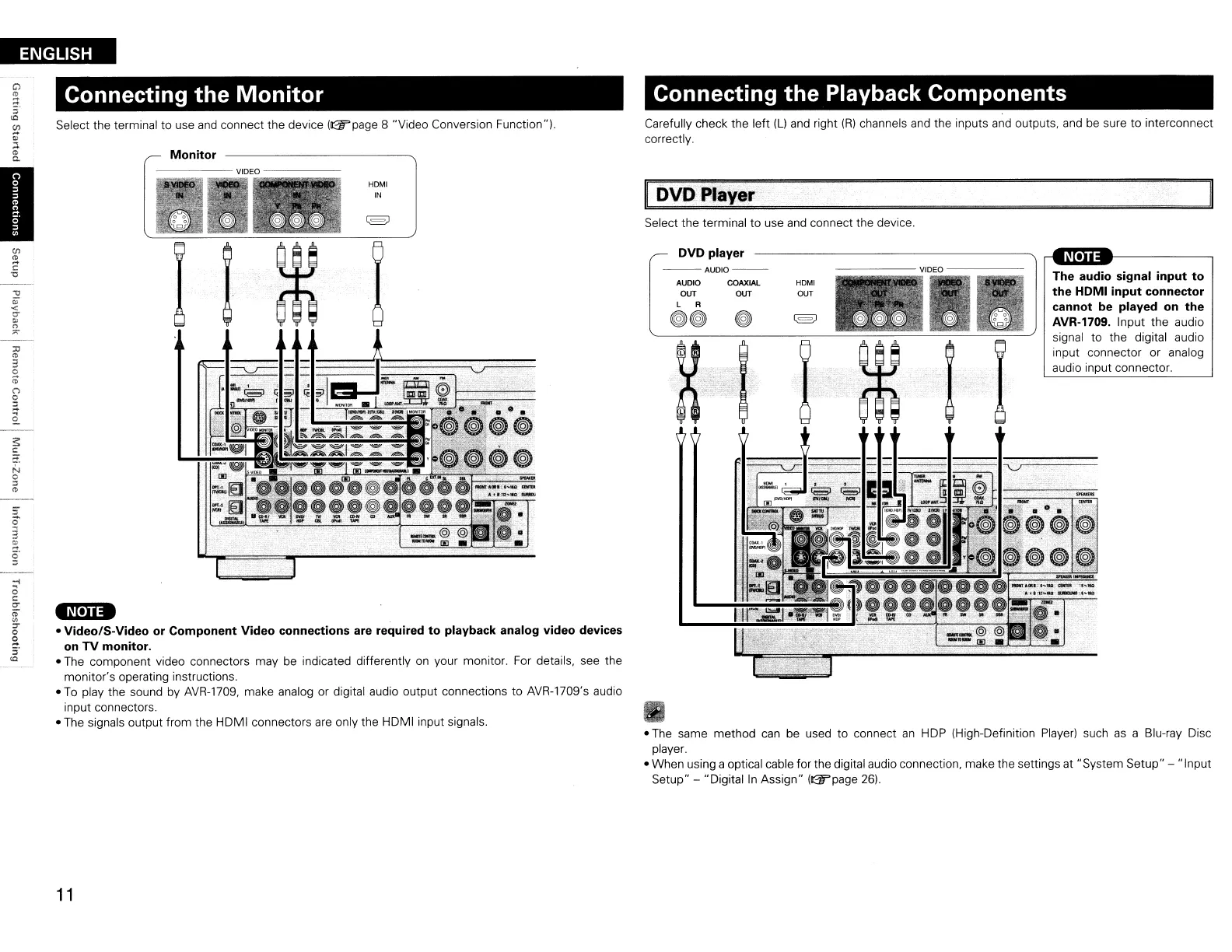

Connecting the Playback Components
Select the terminal to use and connect the device.
Carefully check the left
(L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
•
The same method can be used to connect an HOP (High-Definition Player) such as a Blu-ray Disc
player.
• When using a optical cable for the digital audio connection, make the settings at "System Setup" - "Input
Setup" -
"Digitalin Assign" (l2F'page 26).
Connecting the Monitor
Select the terminal to use and connect the device (l3T'page 8 "Video Conversion Function").
-N·n.
• Video/S-Video or Component Video connections are required to playback analog video devices
on
TV monitor.
• The component video connectors may be indicated differently on your monitor. For details. see the
monitor's operating instructions.
•
To play the sound by AVR-1709, make analog or digital audio output connections to AVR-1709's audio
input connectors.
•
The signals output from the HDMI connectors are only the HDMI input signals.
:D
ttl
3
o
;;
(')
o
~
9.
I
11

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
