Denon AVR-1709 Owner's Manual

ENGLISH

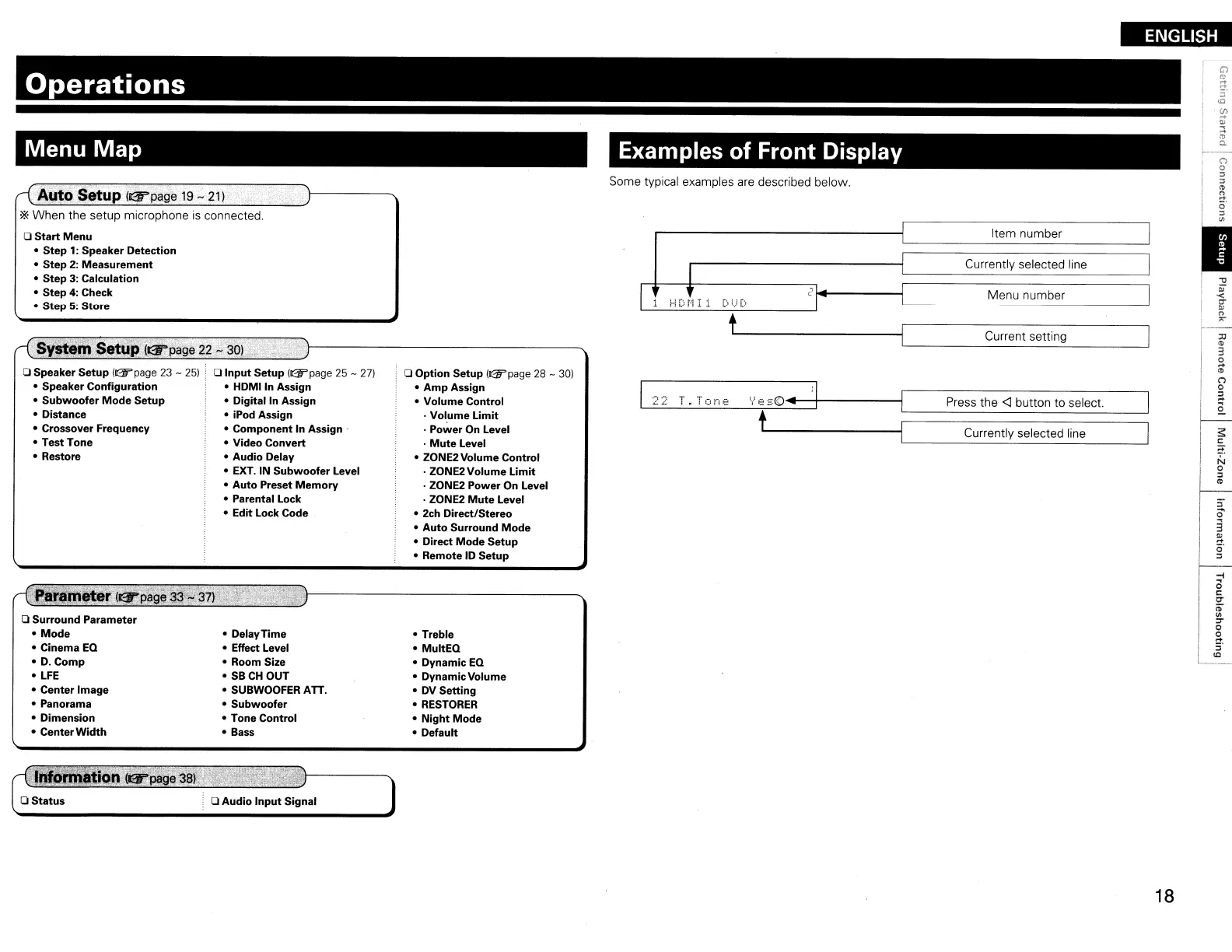

Auto Setup (~page 19 - 21)
Menu Map
s
c
~
N
o
::J
co
Menu number
Currently selected line
Press the
<l button to select.
21+-----...,
t ------C-ur-r-en-t-s-e-t-ti-ng------
Item number
t -----C-u-rr-e-n-tly-s-e-Ie-c-te-d-I-in-e----
Dl.)[)
22 T. Tone \1,=:=:0
Examples of Front Display
Some typical examples are described below.
o Option Setup (@'page 28 - 30)
• Amp Assign
•
Volume Control
·
Volume Limit
· Power On Level
·
Mute Level
• ZONE2Volume Control
· ZONE2Volume
Limit
· ZONE2 Power On Level
· ZONE2
Mute Level
• 2ch Direct/Stereo
•
Auto Surround Mode
• Direct Mode Setup
• Remote ID Setup
)
o Input Setup (@'page 25 - 27)
• HDMlln Assign
•
Digitalin Assign
• iPod Assign
• Component In
Assign'
• Video Convert
• Audio Delay
• EXT. IN
Subwoofer Level
•
Auto Preset Memory
• Parental Lock
• Edit Lock Code
o Speaker Setup (~page 23 - 25)
• Speaker Configuration
•
Subwoofer Mode Setup
• Distance
• Crossover Frequency
• Test Tone
• Restore
Operations
*When the setup microphone is connected.
o Start Menu
• Step 1: Speaker Detection
• Step
2: Measurement
• Step 3: Calculation
• Step
4: Check
• Step
5: Store
r( SY~em Setup (l3r'page 22 - 30)
o Surround Parameter
•
Mode
• Cinema EO
• D.Comp
• LFE
• Center Image
• Panorama
• Dimension
• Center
Width
• DelayTime
• Effect Level
• Room Size
•
SBCHOUT
• SUBWOOFER ATT.
• Subwoofer
• Tone Control
• Bass
• Treble
• MultEO
• Dynamic
EO
• DynamicVolume
• DV Setting
•
RESTORER
• Night Mode
• Default
;at,· ,_,''':. ;":{.
. :n~(~:~ge
o Status
o Audio Input Signal
18

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
