Denon AVR-1709 Owner's Manual

ENGLISH
IISymbols used to indicate buttons In this manual
Button located on both the main unit and the remote control
unit
)0 BUTTON
Button only on the main unit )0 <BUTTON>
Button only on the remote control unit )0 [BUTTON]
<SOURCE SELECT> SHIFT
()) i! 0...... ".
pJ-- ---~I- ~-- -1-.:r:
J
<STATUS> <PRESET CHANNEl> TUNING <1~
o Default settings
Auto tuner presets
Al -A8
87.5/89.1 /98.1 / 107.9/90.1 /90.1 /90.1 /
90.1 MHz
Bl - B8
520/600/1000/1400/1500/1710 kHz,
90.1/90.1 MHz
Cl
-C8
90.1 MHz
Dl - D8 90.1 MHz
El - E8 90.1 MHz
Fl -
F8
90.1 MHz
Gl - G8 90.1 MHz
2
Press <PRESET CHANNEl> or [CHANNEL + -] to
select the desired preset channel
(1 to 8).
I Listening to Preset Stations ·1
1Press SHIFT to select the memory block (A to G).

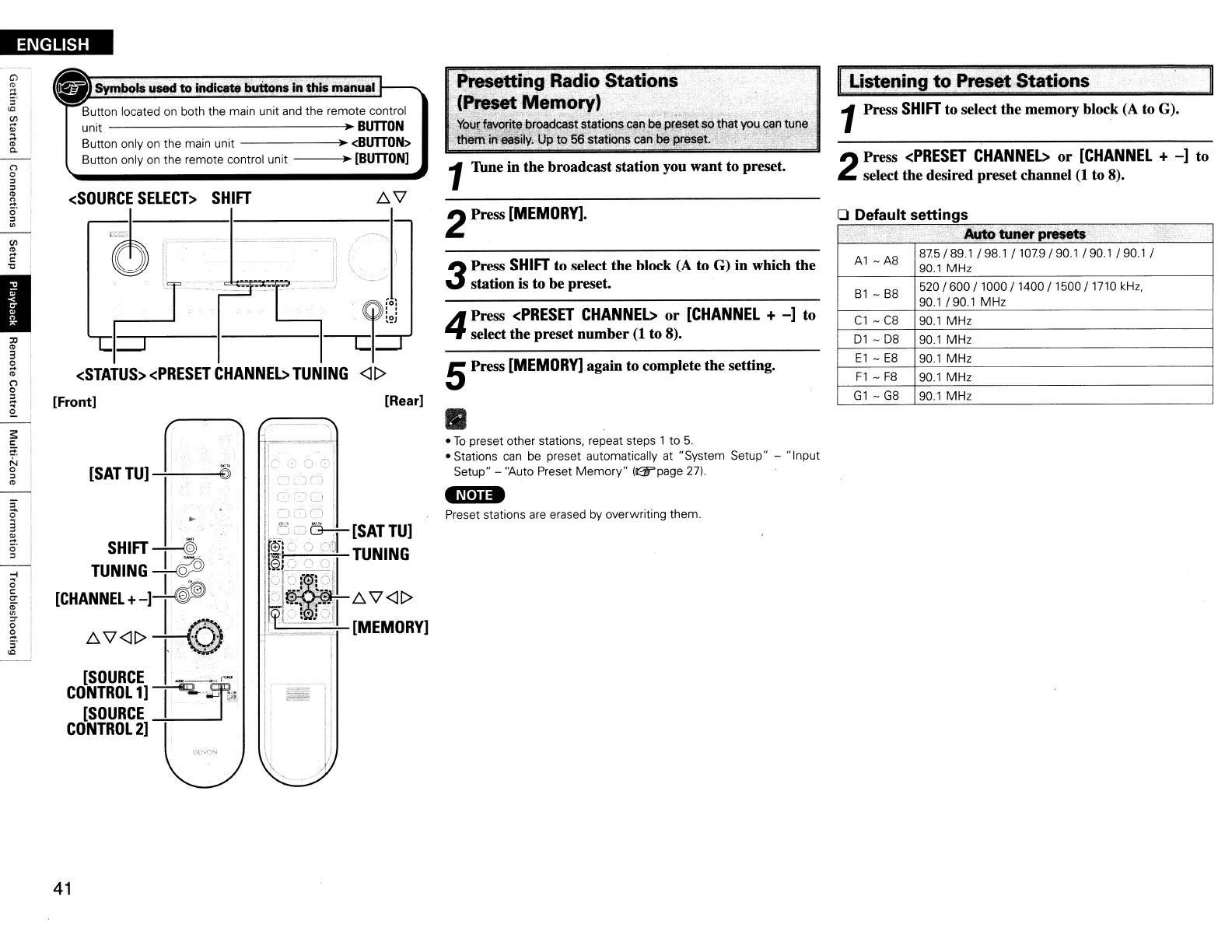

Presetting Radio Stations
(Preset Memory)
_ Your favOfit~ broad<;ast stations can be preset so thatyou can tune
them",n _ily. Up to 56 stations can be preset.
• To preset other stations. repeat steps 1 to 5.
• Stations can be preset automatically at "System Setup" - "Input
Setup" - "Auto Preset
Memory" (&page 27).
4
Press <PRESET CHANNEl> or [CHANNEL + -] to
select the preset number
(1 to 8).
2 Press [MEMORY].
3
Press SHIFT to select the block (A to G) in which the
station
is to be preset.
1Thne in the broadcaststation you want to preset.
-N'O-
Preset stations are erased by overwriting them.
5Press [MEMORY] again to complete the setting.
•
[Rear]
1&C~;""t6. 'V <1 ~
~--:-..--+- [MEMORY]
.=.,.::"="-.,.
!
I
,I
:;'.-- Ii
[SATTU] ©
DlNON
SHIFT --+--@;
TUNING~
[CHANNEL. -Jr .
t6.'V <1~ +-@
[SOURCE I· __ . ~ r-
CO[~~~~~~] 11~
CONTROL2]-+------
[Front]
s: i
l: !
;t. I
N
o
:::>
'"
CJ>
'"
I
41

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
