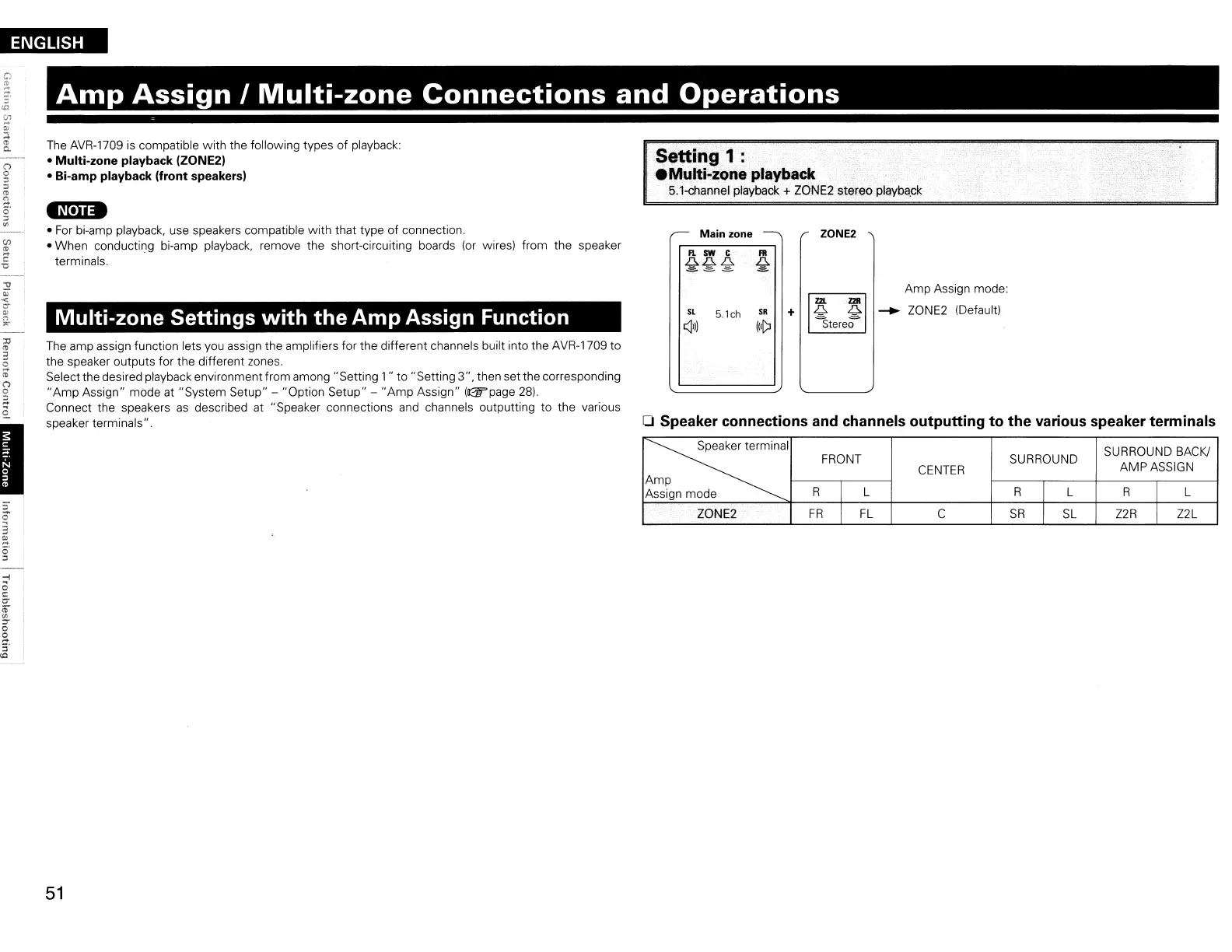

Amp Assign I Multi-zone Connections and Operations
Setting 1 :
.Multi-zone playback
5.1-channel playback + ZONE2 stereo playba.ck
The AVR-1709 is compatible with the following types of playback:
• Multi-zone playback (ZONE2)
• Bi-amp playback (front speakers)
-M-li.
• For bi-amp playback, use speakers compatible with that type of connection.
• When conducting bi-amp playback, remove the short-circuiting boards
(or wires) from the speaker
terminals.
..-- Main zone ----,
FI. sw C FA
~~~ ~
ZONE2
The amp assign function lets you assign the amplifiers for the different channels built into the AVR-1709 to
the speaker outputs for the different zones.
Select the desired playback environmentfrom
among" Setting 1" to "Setting 3", then set the corresponding
"Amp Assign" mode at "System Setup" - "Option Setup" - "Amp Assign" (a2iT'page 28).
Connect the speakers as described at "Speaker connections and channels outputting to the various
speaker terminals".
0 Speaker connections and channels outputting to the various speaker terminals
~
SURROUND BACK/
FRONT SURROUND
CENTER
AMP ASSIGN
Amp
I
I
I
Assign mode
R
L
R
L R L
ZONE2
FR
I
FL C SR
I
SL Z2R
I
Z2L
Amp Assign mode:
....... ZONE2 (Default)
Sl 5.1ch SR +
~I)) N:J
Multi-zone Settings with the Amp Assign Function
I
51

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
