Denon AVR-1709 Owner's Manual

ENGLISH
I
!
I
IT
i ~
~
I ~
, 0
I ~
I ~.
I g
I
3. Return the
lever.
2. Insert the
conductor.
1. Push the
lever.

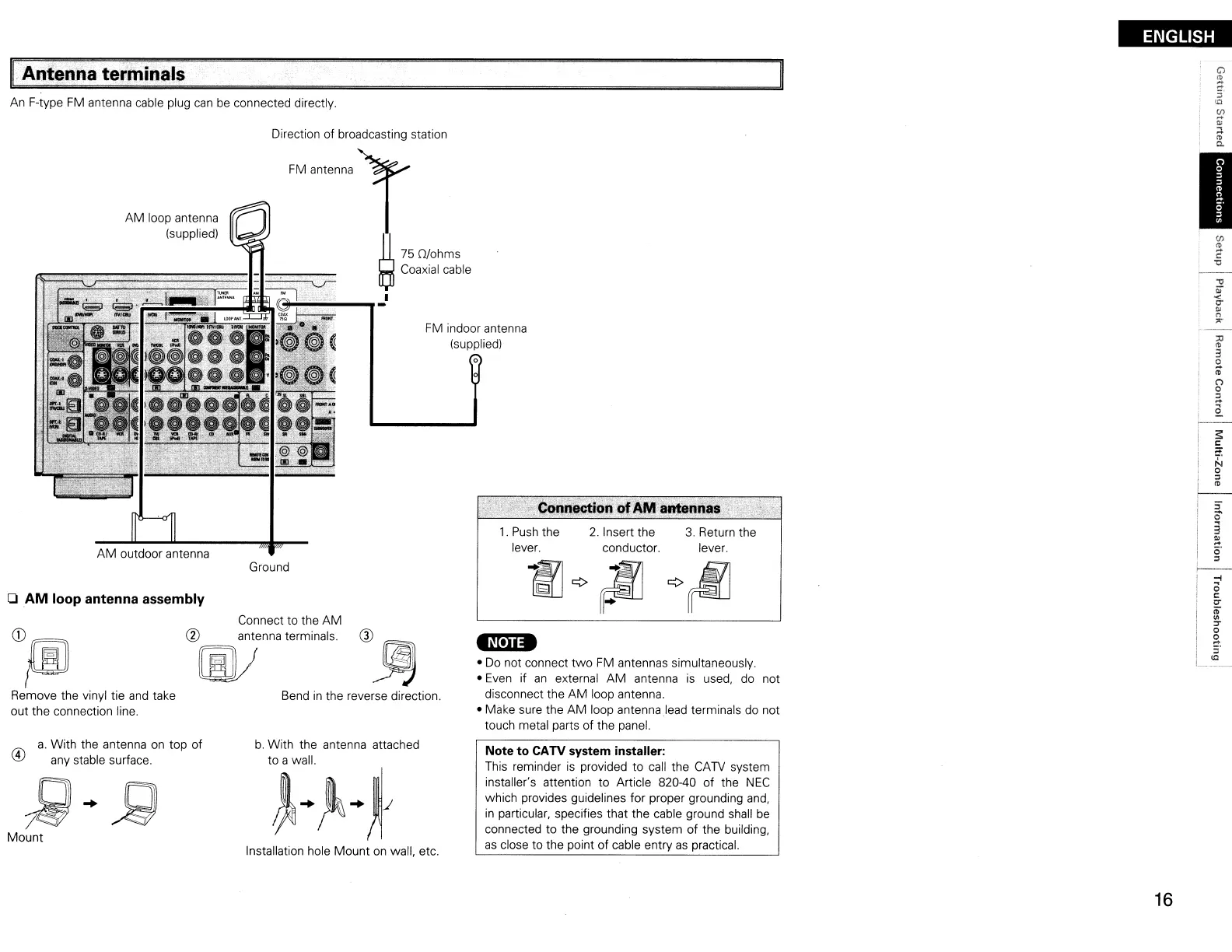

. Connee:tion of AM antennas
.~[.n.
• Do not connect two FM antennas simultaneously.
•
Even if an external AM antenna is used, do not
disconnect the
AM loop antenna.
• Make sure the AM loop antenna
.Iead terminals do not
touch metal parts of the panel.
FM indoor antenna
(supplied)
Connect to the
AM
(1), ~)''"' '"m',,',. ® ~
Bend in the reverse direction.
FM"",", 1
Jl75010hms
id Coaxial cable
'~~~~"";~I~;-- __ ,_I
AM loop antenna
(supplied)
Direction
of broadcasting station
AM outdoor antenna
Ground
®JOO
Remove the vinyl tie and take
out the connection line.
An F-type FM antenna cable plug can be connected directly.
o AM loop antenna assembly
I, Antenna terminals
iA\ a. With the antenna on top of
~ any stable surface.
Mount
b. With the antenna attached
to a wall.
~~~~~
Installation hole Mount on wall, etc.
Note to CATV system installer:
This reminder is provided to
call the CATV system
installer's attention to Article
820-40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
16

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
