Denon AVR-1709 Owner's Manual

ENGLISH

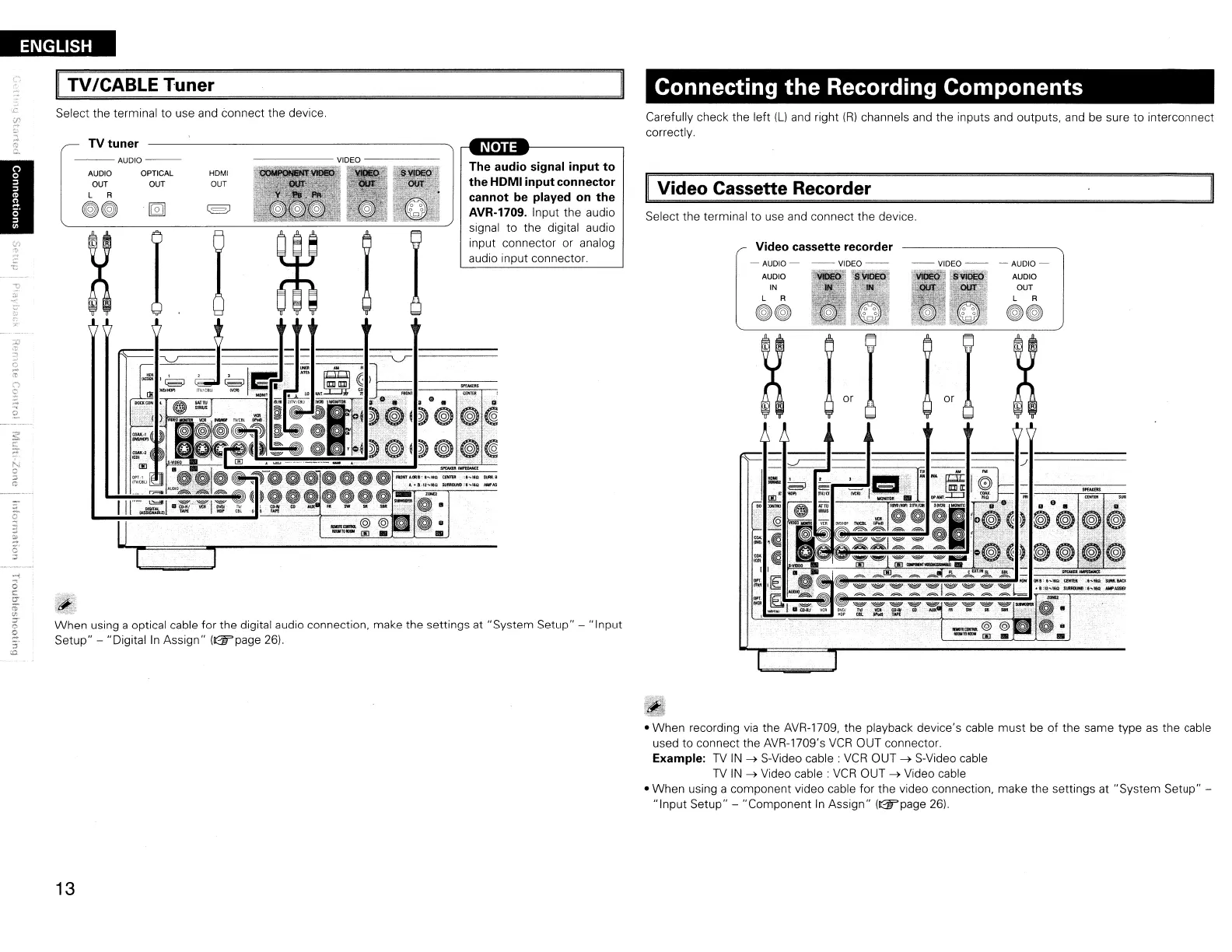

II TV ICABLE Tuner
Connecting the Recording Components
Select the terminal to use and connect the device.
-AUOIQ-
AUDIO
OUT
L R
ee
- AUDIO - - VIDEO - - VIDEO-
AUDIO
IN
L R
ee
Video cassette recorder
Carefully check the left IL) and right (R) channels and the inputs and outputs. and be sure to interconnect
correctly.
Select the terminal to use and connect the device.
II Video Cassette Recorder
The audio signal input to
the HOMI input connector
cannot be played on the
AVR-1709. Input the audio
signal to the digital audio
input connector or analog
audio input connector.
HDMI
OUT
-<
;:;
"
0-
ro
'"
g When using a optical cable for the digital audio connection, make the settings at "System Setup" - "Input
2· Setup" - "Digitalln Assign" (~page 26).
"'
TV tuner
I
--AUDIO--
• AUDIO OPTICAL
OUT OUT
• L R
. ee '[g]
~
• When recording via the AVR-1709, the playback device's cable must be of the same type as the cable
used to connect the AVR-1709's VCR OUT connector.
Example: TV IN ---+ S-Video cable: VCR OUT ---+ S-Video cable
TV IN ---+ Video cable: VCR OUT ---+ Video cable
• When using a component video cable for the video connection, make the settings at "System Setup" -
"Input Setup" - "Component In Assign" (~page 26).
13

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
