Denon AVR-1709 Owner's Manual

ENGLISH
I

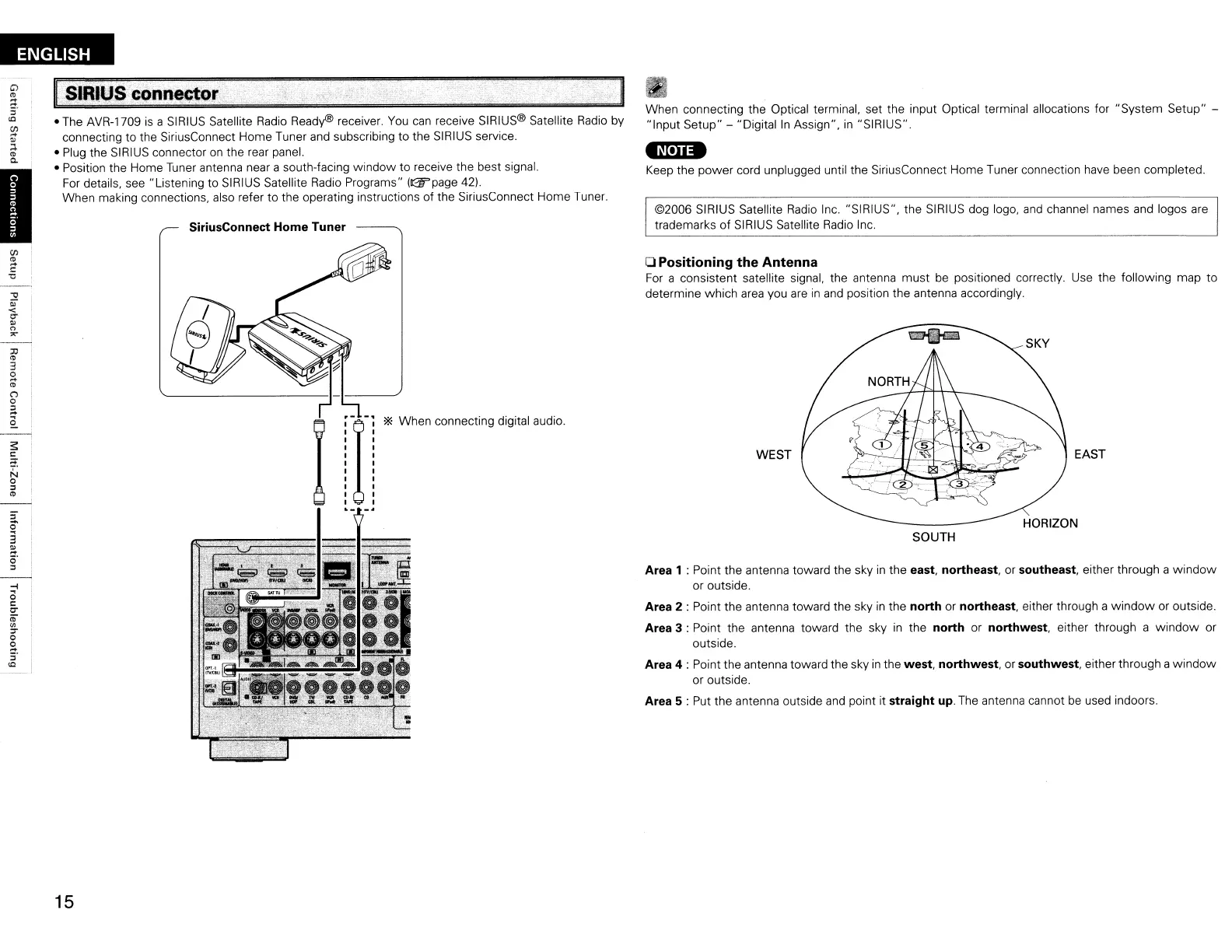

ISIRIUS connector
• The AVR-1709 is a SIRIUS Satellite Radio Ready® receiver. You can receive SIRIUS@ Satellite Radio by
connecting to the SiriusConnect Home Tuner and subscribing to the
SIRIUS service.
•
Plug the SIRIUS connector on the rear panel.
• Position the Home
Tuner antenna near a south-facing window to receive the best signal.
For details, see "Listening to SIRIUS Satellite Radio Programs" ((jf'page 42).
When making connections, also refer to the operating instructions of the SiriusConnect Home Tuner.
SiriusConnect Home Tuner
When connecting the Optical terminal, set the input Optical terminal allocations for "System Setup" -
"Input Setup" -
"Digitalin Assign", in "SIRIUS".
-N·O.
Keep the power cord unplugged until the SiriusConnect Home Tuner connection have been completed.
©2006 SIRIUS Satellite
Radio Inc. "SIRIUS", the SIRIUS dog logo, and channel names and logos are
trademarks of
SIRIUS Satellite Radio Inc.
* When connecting digital audio.
EAST
WEST
o Positioning the Antenna
For a consistent satellite signal, the antenna must be positioned correctly. Use the following map to
determine which
area you are in and position the antenna accordingly.
I [1'
--,
HORIZON
SOUTH
Area 1 : Point the antenna toward the sky in the east, northeast, or southeast, either through a window
or outside.
Area 2 : Point the antenna toward the sky in the north or northeast, either through a window or outside.
Area 3 : Point the antenna toward the sky in the north or northwest, either through a window or
outside.
Area 4 : Point the antenna toward the sky in the west, northwest, or southwest, either through a window
or outside.
Area 5 : Put the antenna outside and point it straight up. The antenna cannot be used indoors.
15
