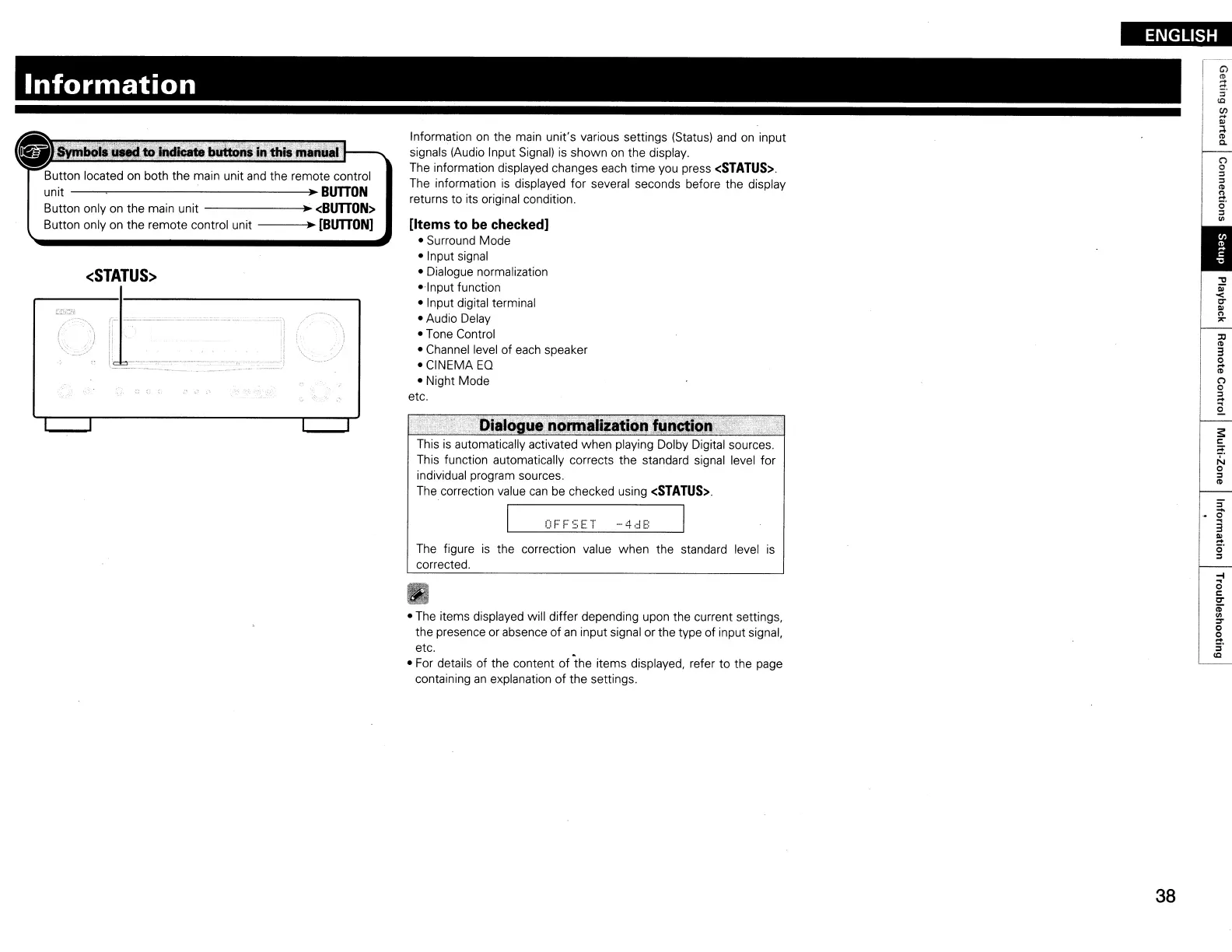

Information
SymbOls UNCI. to Indicat8 buttons in this ",anua'
Button located on both the main unit and the remote control
unit •
BUTTON
Button only on the main unit • <BUTTON>
Button only on the remote control unit • [BUTTON]
Information on the main unit's various settings (Status) and on input
signals (Audio Input
Signal) is shown on the display.
The information displayed changes
each time you press <STATUS>.
The information is displayed for several seconds before the display
returns to its original condition.
[Items to be checked]
• Surround Mode
• Input signal
• Dialogue normalization
• Input function
• Input digital terminal
• Audio Delay
• Tone Control
• Channel level of
each speaker
·CINEMA EO
• Night Mode
etc.
ENGLISH
"ll
iii
<
cr
..
"
""
DialOgue nonnalizationfunctiQn
This is automatically activated when playing Dolby Digital sources.
This function automatically corrects the standard signal level for
individual program sources.
The correction value
can be checked using <STATUS>.
OFFSET -4dE:
The figure is the correction value when the standard level is
corrected.
• The items displayed will differ depending upon the current settings,
the presence or absence
of an input signal or the type of input signal,
etc.
• For details of the content of the items displayed, refer to the page
containing
an explanation of the settings.
38

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
