Denon AVR-1709 Owner's Manual

ENGLISH

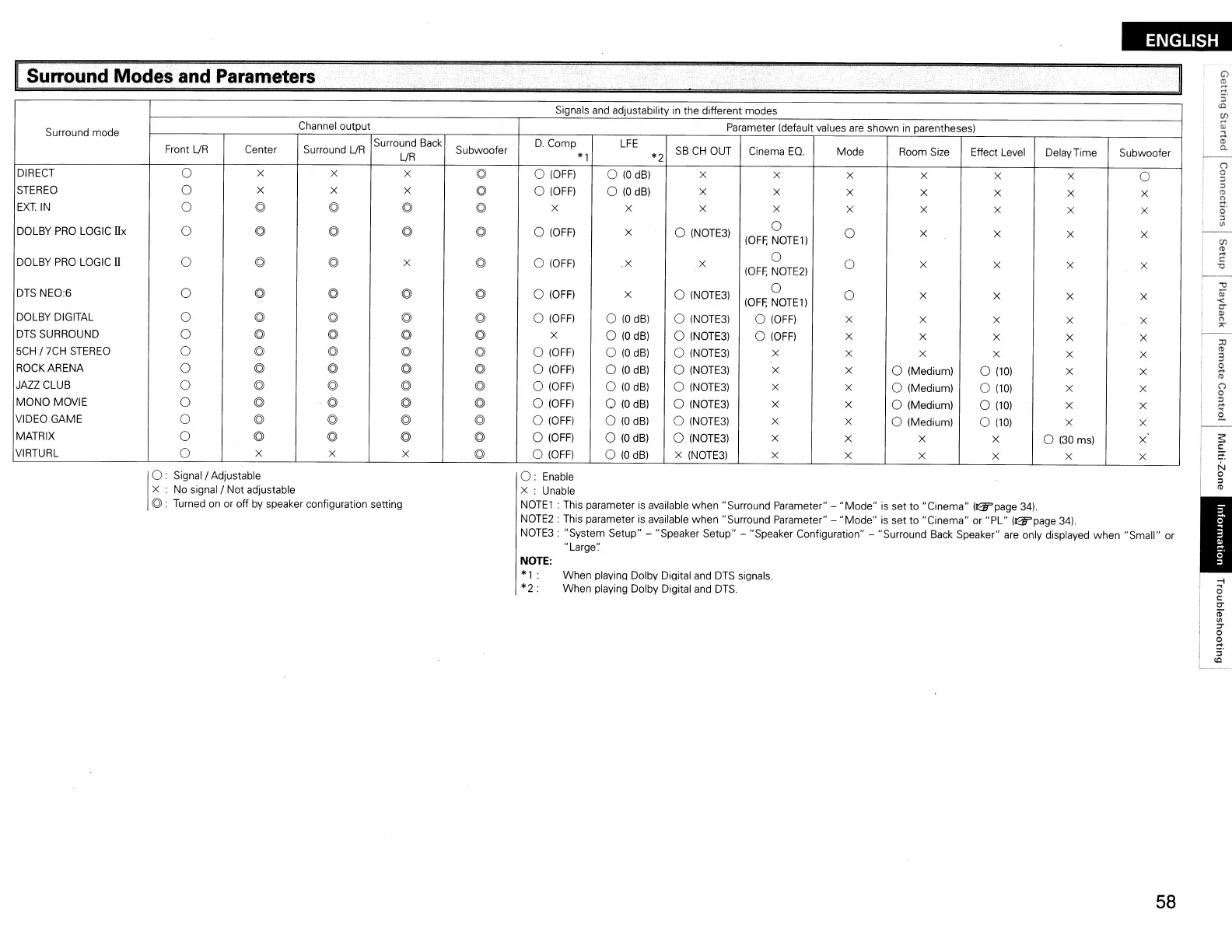

Signals and adjustability in the different modes
Surround mode
Channel output Parameter (default values are shown in parentheses)
Front UR Center Surround UR
Surround Back
Subwoofer
D. Comp LFE
SB CH OUT Cinema EO.
Mode Room Size Effect Level DelayTime Subwoofer
UR
*1
*2
DIRECT
0
x x x
©
o (OFF) o (0 dB)
x x x x
X X
0
STEREO
0
X X X
©
o (OFF) o (0 dB) X X X X X X X
EXT IN
0
© © © ©
X X X X X X X X X
DOLBY PRO LOGIC IIx
0 © © ©
©
o (OFF)
X
o (NOTE3)
0
0
X
X X X
(OFF. NOTE1)
DOLBY
PRO LOGIC II
0 ©
©
X
©
o (OFF)
.X X
0
0
X
X X X
(OFF. NOTE2)
DTS NEO:6
0
© © ©
©
o (OFF)
X
o (NOTE3)
0
0
X
X X X
(OFF. NOTE1)
DOLBY DIGITAL
0
© © ©
©
o (OFF) o (0 dB) o (NOTE3) o (OFF)
X X X
X X
DTS SURROUND
0
© © © ©
X
o (0 dB) o (NOTE3) o (OFF)
X x X
x X
5CH !7CH STEREO
0
© © ©
©
o (OFF) o (0 dB)
o (NOTE3)
X x x
X x x
ROCK ARENA
0
© © © ©
o (OFF) o (OdB) o (NOTE3)
X X
o (Medium) 0(10)
x
X
JAZZ CLUB
0
© © ©
©
o (OFF)
o (0 dB) o (NOTE3)
x X
o (Medium)
0(10) X X
MONO MOVIE
0
©
© ©
©
o (OFF) o (0 dB)
o (NOTE3)
X
X
o (Medium)
0(10) X X
VIDEO GAME
0
© © © ©
o (OFF)
o 10 dB)
o (NOTE3)
X X
o (Medium) 0(10)
X X
MATRIX
0
© © ©
©
o (OFF)
o (0 dB) o (NOTE3)
X X X
X
o (30ms)
X
VIRTURL
0
X X x
©
o (OFF) o (0 dB) x (NOTE3)
X X X X X X
0: Enable
x : Unable
NOTE1: This parameter is available
when "Surround Parameter" - "Mode" is set to "Cinema" (G't'page 34).
NOTE2 : This parameter is available
when "Surround Parameter" - "Mode" is set to "Cinema" or "PL" IG't'page 34).
NOTE3:
"System Setup" - "Speaker Setup" - "Speaker Configuration" - "Surround Back Speaker" are only displayed when "Small" or
"Large':
ISurround Modes and Parameters
I
O· Signal! Adjustable
x : No signal! Not adjustable
©: Turned on or off by speaker configuration setting
NOTE:
*1 :
*2:
When playing Dolby Digital and DTS signals.
When playing Dolby Digital and DTS.
58
$
c
a::
N
o
"
I
I -t
I ~
I
co
!
I ~_

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
