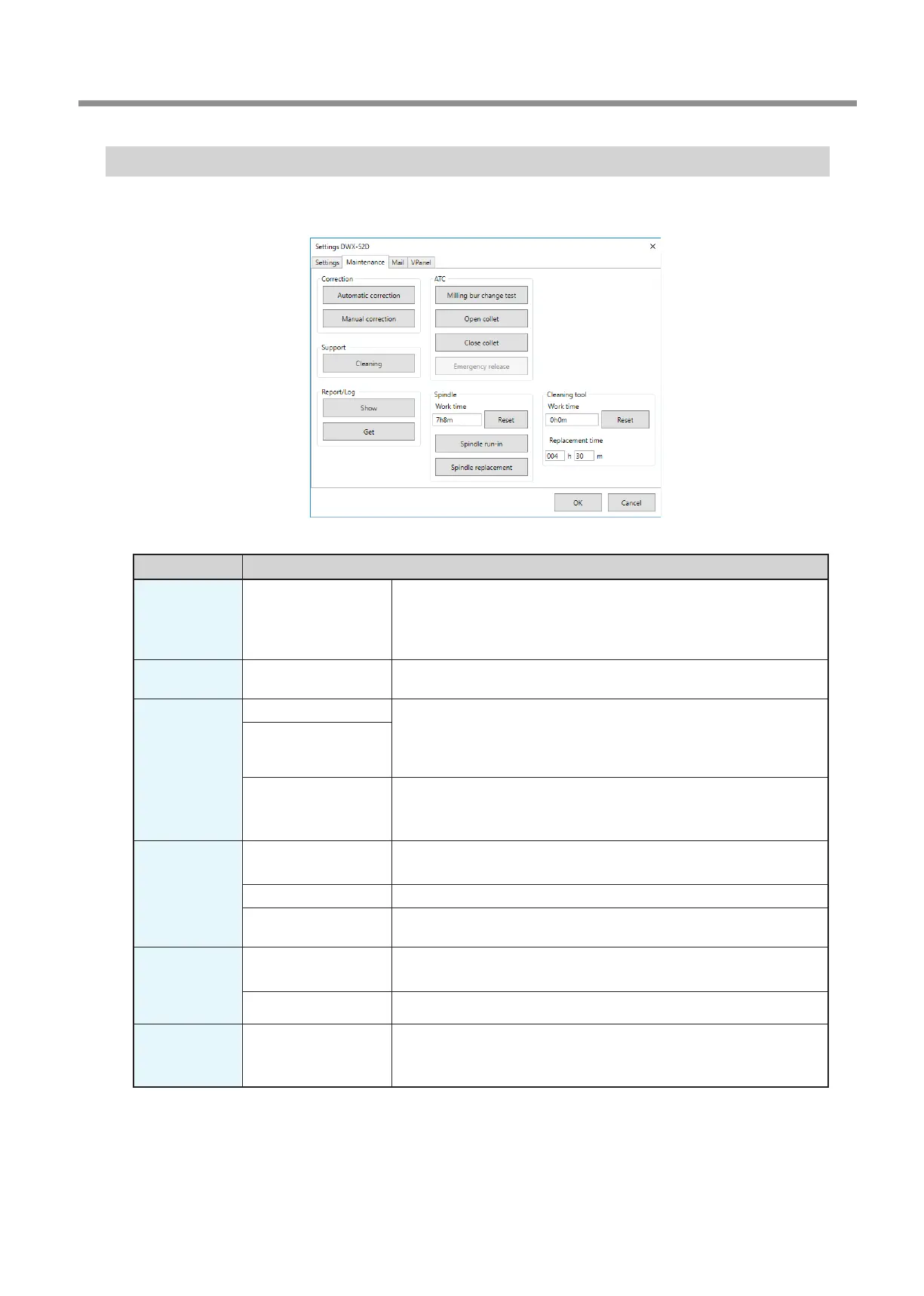

VPanel Window and Functions
11
Chapter 1 Operation Screen
"Maintenance" Tab
On this tab, you can perform operations related to maintenance, including automatic correction of the milling machine and system
reporting. When more than one machine is connected, the machine selected in the top window becomes the target for the operations.
Display Explanation
Correction
Automatic correction/
Manual correction
Correct the ATC magazine position or the rotary axis position. Normally
use [Automatic correction].
"
P. 53 "Correcting the Milling Machine"
"
P. 14 ""Manual correction" Dialog Box"
Support
Cleaning
Click this button to open the "Cleaning" dialog box.
"
P. 18 ""Cleaning" Dialog Box"
ATC
Milling bur change test
Perform tests, maintenance, and other tasks related to operation with
the ATC magazine.
"
P. 50 "Periodic Maintenance"
"
P. 49 "Care and Storage of Detection Pin and Automatic Correction Jig"
Open collet/Close collet
Emergency release
This button is enabled when the power is turned on while the front cover
is open. Use this function if the initial operations cannot be performed
because, for example, the milling bur is caught on the workpiece.
Spindle
Reset
"Work time" displays the work time of the spindle.
After replacing the spindle unit, click [Reset] to reset the value to 0.
Spindle run-in
"
P. 52 "Spindle Run-in (Warm-up)"
Spindle replacement
Click this button to open the "Spindle replacement" dialog box.
"
P. 51 "Replacing Consumable Parts"
Report
Display
Display the rmware version, the total operating hours, and the error
dialog box.
Get
Obtain a le in which the information of the various logs is collected.
Cleaning tool
Reset
"Work time" displays the work time of the cleaning tool. After replacing
the cleaning tool, click "Reset" to reset the value to 0. You can use
"Replacement time" to set the replacement time of the cleaning tool.
