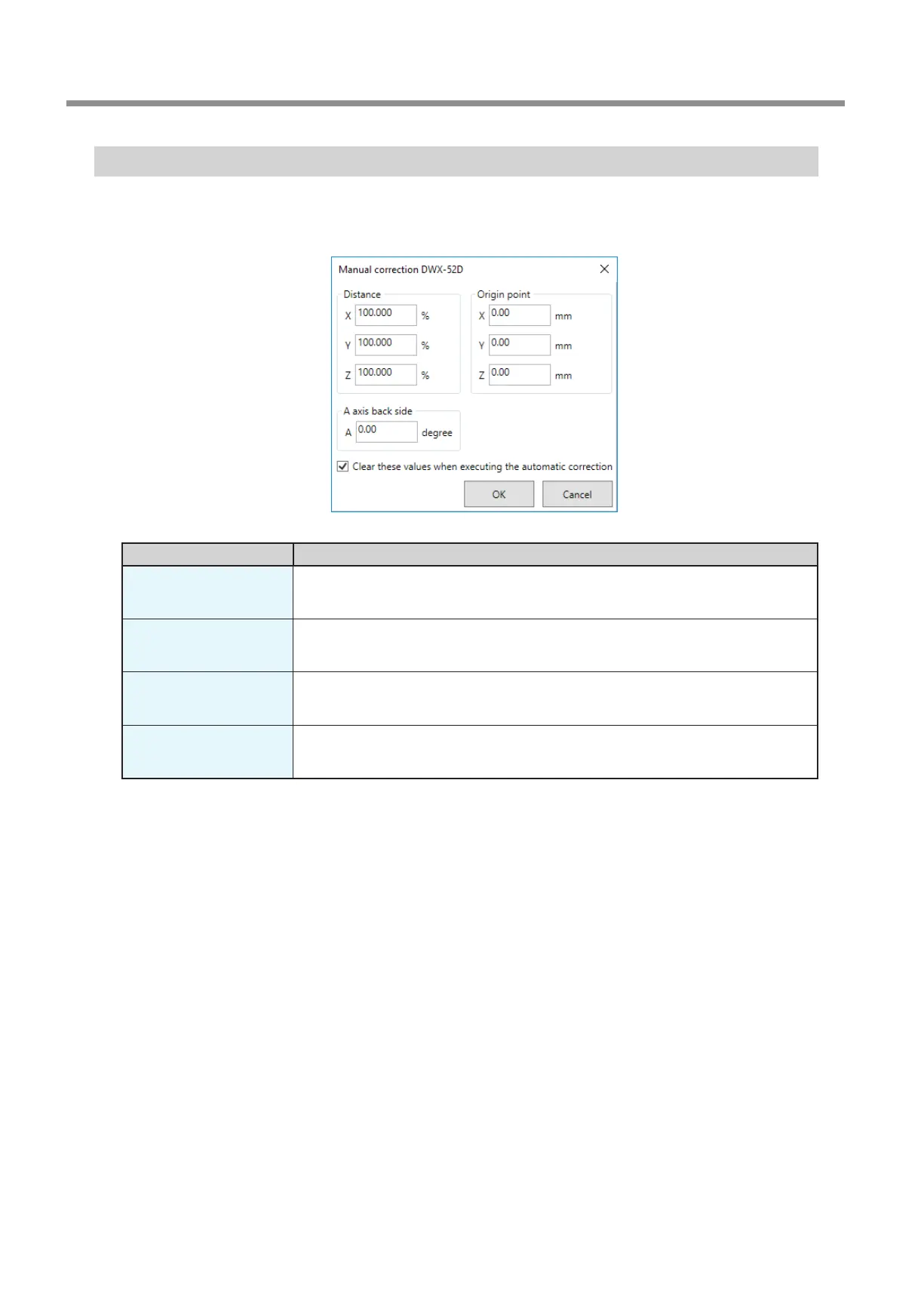

"Manual correction" Dialog Box
In this dialog box, you can perform manual correction of the milling machine. Perform correction to precisely adjust the accuracy.
When more than one machine is connected, the machine selected in the top window becomes the target for correction.
* Perform automatic correction before performing this correction.
Display Explanation
Distance
Correct moving distances in the X, Y, and Z directions. Set the correction value while considering
the initial moving distance as 100.000%.
Initial setting: 100.000%
A axis back side
Correct the angle when the A axis is rotated 180 degrees. Set the correction value while
considering the initial setting as 0.00 degrees.
Initial setting: 0.00 degrees
Origin point
Correct the origins of the X, Y, and Z axes. Set the correction value while considering the initial
setting as 0.00 mm.
Initial setting: 0.00 mm
Clear these values when
executing the automatic
correction
Select this check box to reset the values for "Distance," "Origin point," and "A axis back side"
when performing automatic correction.
Initial setting: Selected
