Chapter 1 Operation Screen

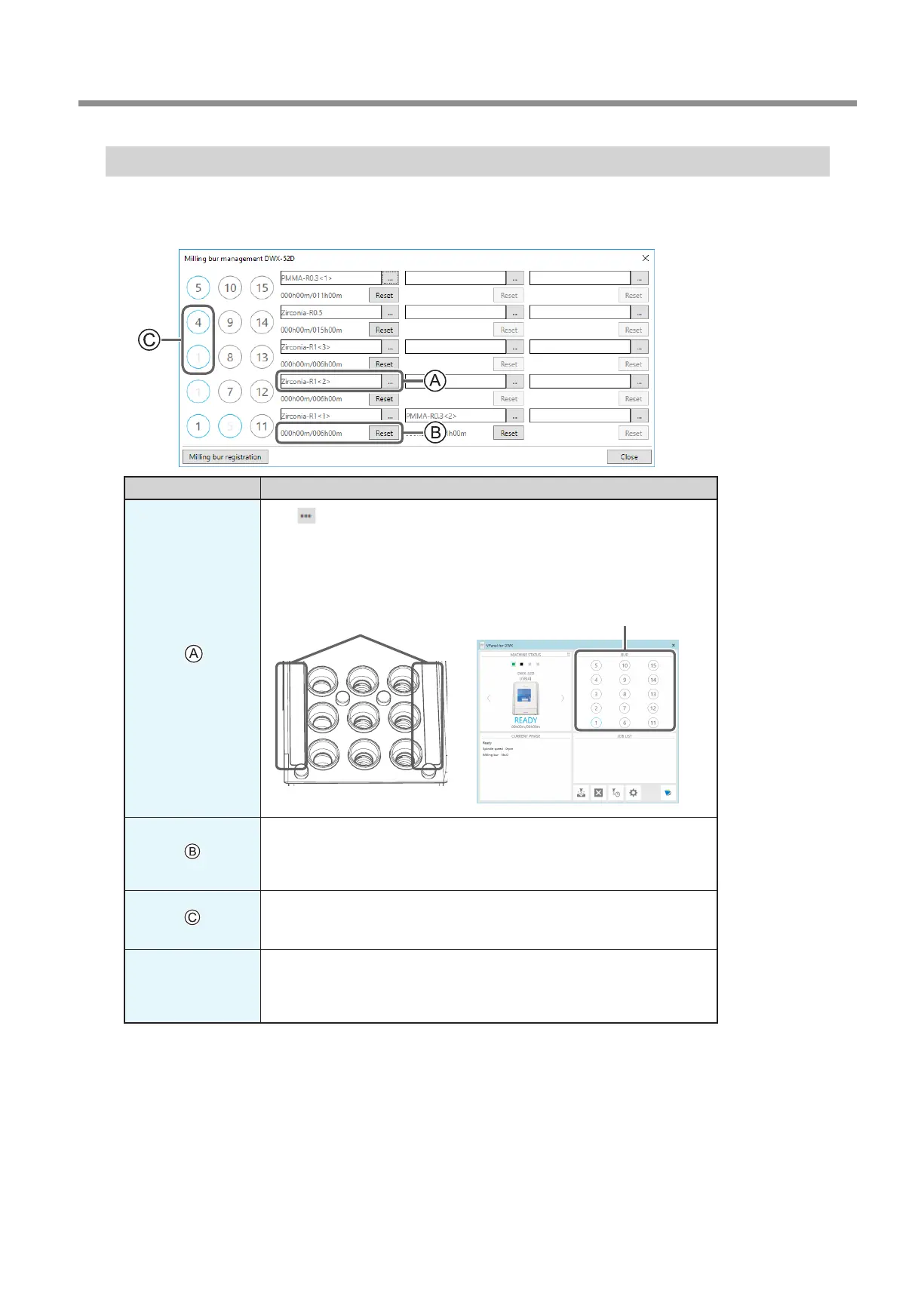

"Milling bur management" Dialog Box
By selecting a milling bur to be used, the work time of the selected milling bur will be recorded automatically. In addition, when
the bur reaches the preset replacement time, a warning message will be displayed. When more than one machine is connected, the
machine selected in the top window is managed.
Symbol or display Explanation
Click to display the milling burs for which "Milling bur registration" was
performed. Numbers 1 through 15 match the milling bur stocker numbers on the
machine's ATC magazine. The name and work situation of the milling bur currently
in use will be displayed on the top window.
" P. 16 ""Milling bur registration" Dialog Box"
Displays the work time and replacement time of the selected milling bur. When
the bur reaches the preset replacement time, a warning message will be displayed.
The replacement time can be changed from "Milling bur registration." After
replacing the milling bur with a new one, click "Reset" to set the work time to 0.
You can automatically replace milling burs that have reached their replacement
time during milling by setting multiple milling bur stockers as a single unit.
" P. 17 "Intelligent Tool Control (ITC) Function Settings"
Milling bur
registration
Here you can register milling burs whose work time you want to manage or
remove burs you no longer want to manage. Click this button to display the
"Milling bur registration" dialog box.
" P. 16 ""Milling bur registration" Dialog Box"
1 11
12
13
2
3
Milling bur stocker number
Milling bur info
