22
Chapter 2 Milling
Preparing for Milling
CAM Settings Necessary for Milling
The settings shown below must be included in the milling data used by this machine.
Workpiece
Set the type of workpiece to use in milling.
" P. 22 "Preparing a Workpiece (Usable Workpieces)"
Milling bur
Set all the milling burs to use in milling.
" P. 22 "Preparing a Milling Bur (Usable Milling Burs)"
Milling bur stocker number
Set the number of the milling stocker in which the milling burs
will be loaded.
" P. 36 "STEP 3: Loading the Milling Bur"

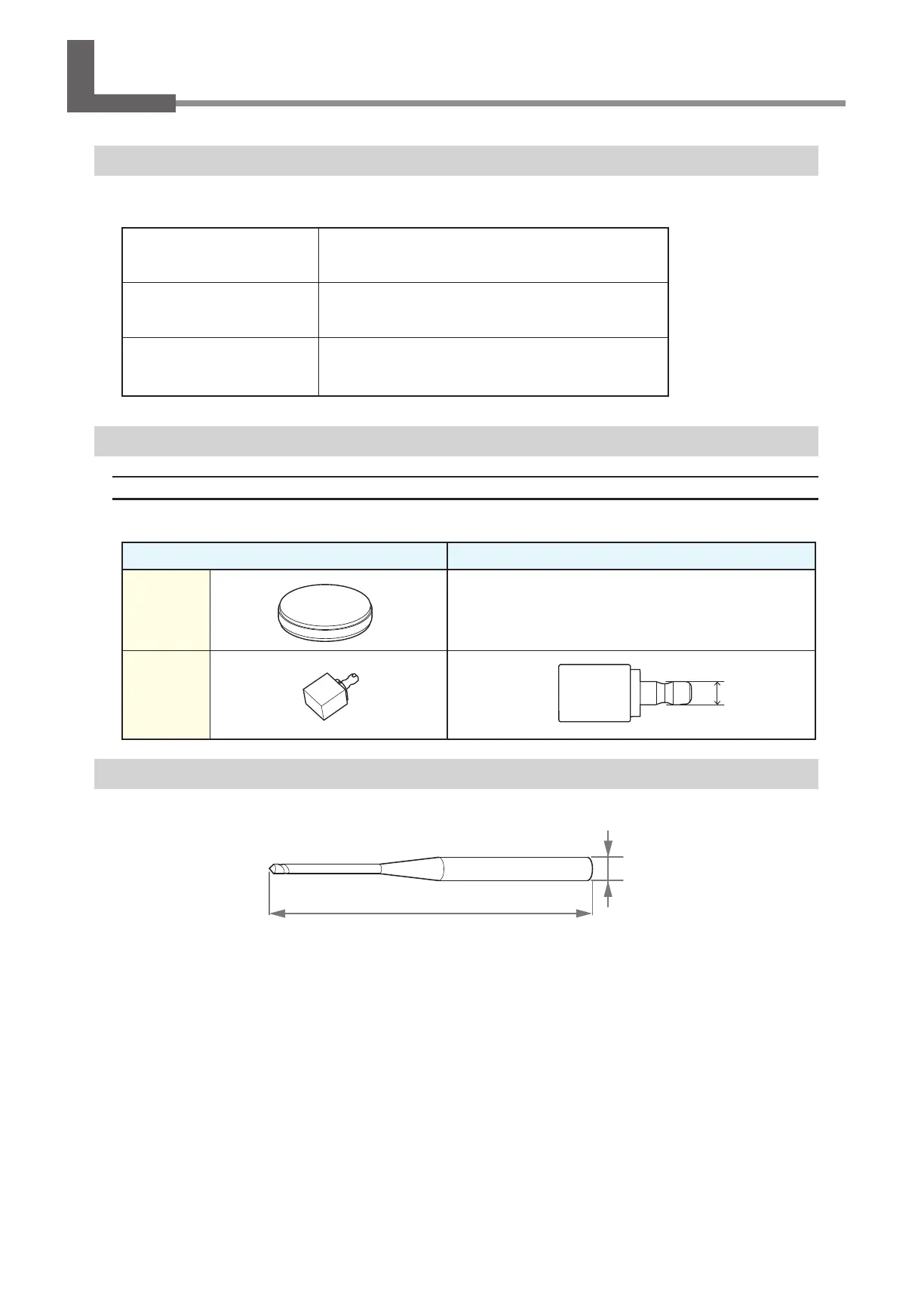

Preparing a Workpiece (Usable Workpieces)
Workpiece Materials
Zirconia, wax, PMMA, composite resin, PEEK, gypsum, glass-ber-reinforced resin, and CoCr sintered metal
Type Size
Disk type
(with step)
Step section: 98.5 mm (diameter), 10 mm (height)
Body section: 95 mm (diameter), 60 mm (height max.)
Pin type
Pin diameter: 6 mm
Preparing a Milling Bur (Usable Milling Burs)
The gure below shows the size of usable milling burs.
* The shape of the milling bur is merely an example. Select the milling bur that matches the application. Contact your authorized
DGSHAPE Corporation dealer or visit our website (http://www.dgshape.com/) to purchase milling burs.
ø5.9 ± 0.02
Shank diameter: 4 mm
Length: 40 to 55 mm
To Next Page
