106

LUBRICATION

IMPORTANT!

Every 100 hours

of operation maximum

3/8” Magnetic

drain square plug

underneath gear

box

80W140

Synthetic

CAPACITY: 4 L

(2 US Gal.)

Vent cap

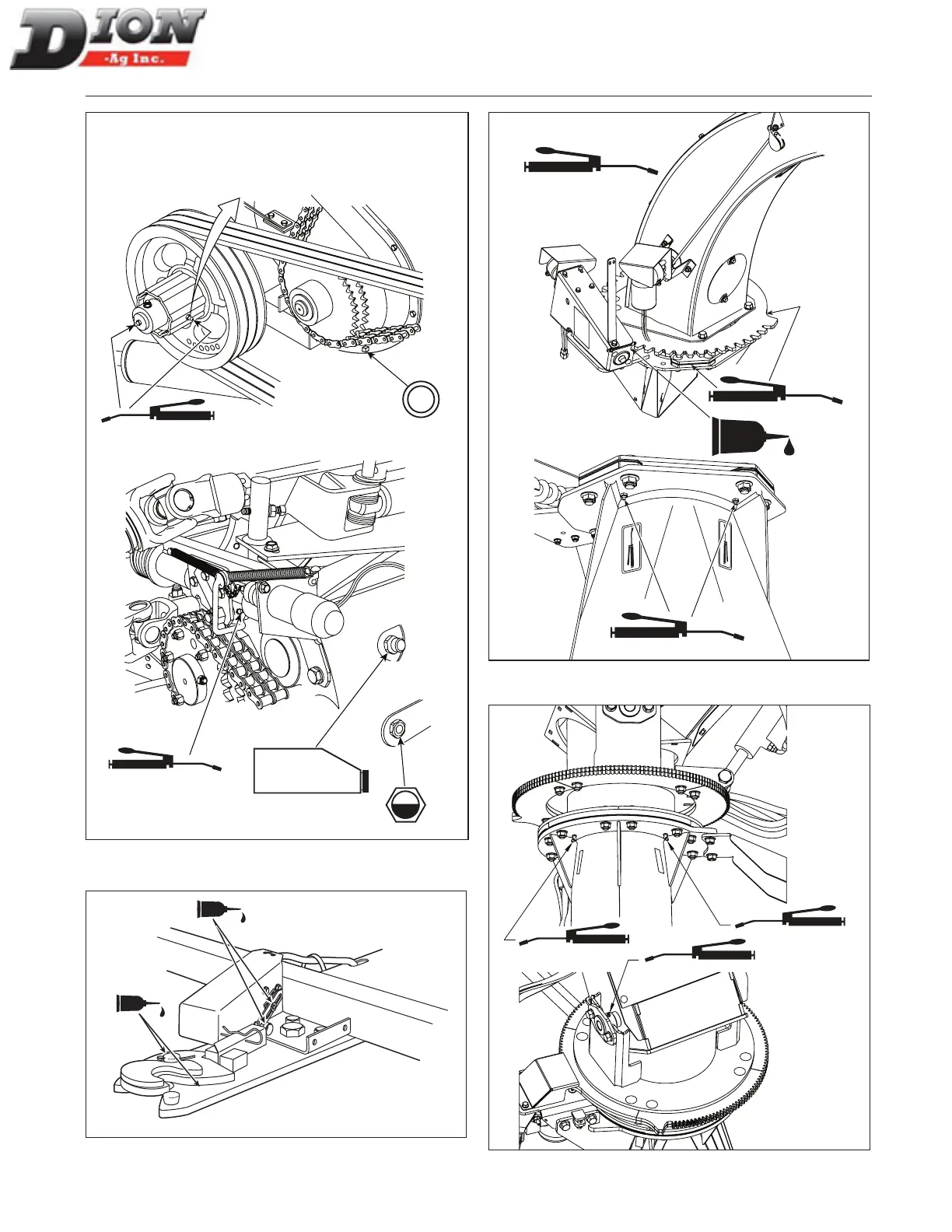

Figure 141 Main gear box

Figure 142 Electrical quick-disconnect hitch - F41 Model only

Figure 143 Spout, rotation screw and links - F41

Figure 144 Spout, rotation screw and links - F41 Stinger

Manual No. F4117E987E V1.1
