44
STEP 11
Install the tting (item 1) on the ball valve (item 2) underneath the tank and connect the outlet hose (item 3). Tighten
properly with a hose clamp (item 5). Connect the return hose (item 4) to the rear elbow with a hose clamp (item 5)
and tighten properly.
2
1
5
4
5
3

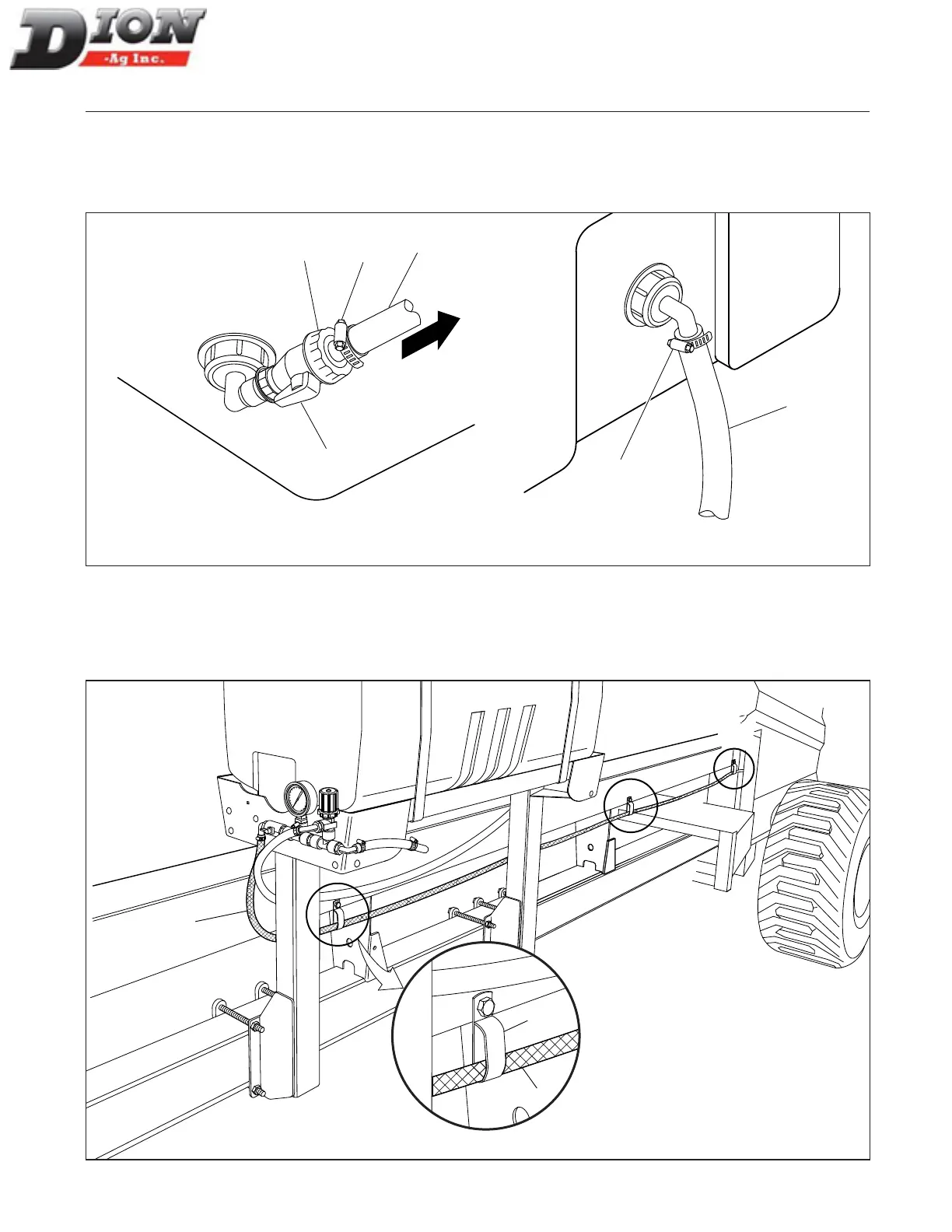

Figure 38 Connecting the outlet and return hoses
STEP 12
Attach the feed hose (item 1) to the Forage Harvester’s guard with four hose clamps (item 2) and using the bolts
already on the guard.
1
1
2
Figure 39 Securing the feed hose (This hoses will be connected to the Forage Harvester)
ASSEMBLING INSTRUCTIONS - LIQUID INCORPORATION SYSTEM
OUTLET FITTING
UNDERNEATH TANK
TOWARDS
PUMP
RETURN FITTING
BEHIND TANK
Manual No. F4117E987E V1.1
