50
STEP 21
Remove the return hose and the 90
o
elbow (see gure 10) and replace it with a cap (item 6 in gure 21). Transfer
the elbow (item 7 in gures 21 and 23) to the rear tank as shown below. Then, install the return hose (item 8) with
a hose clamp and tighten properly. This keeps an homogeneous mix between both tanks.
7
8

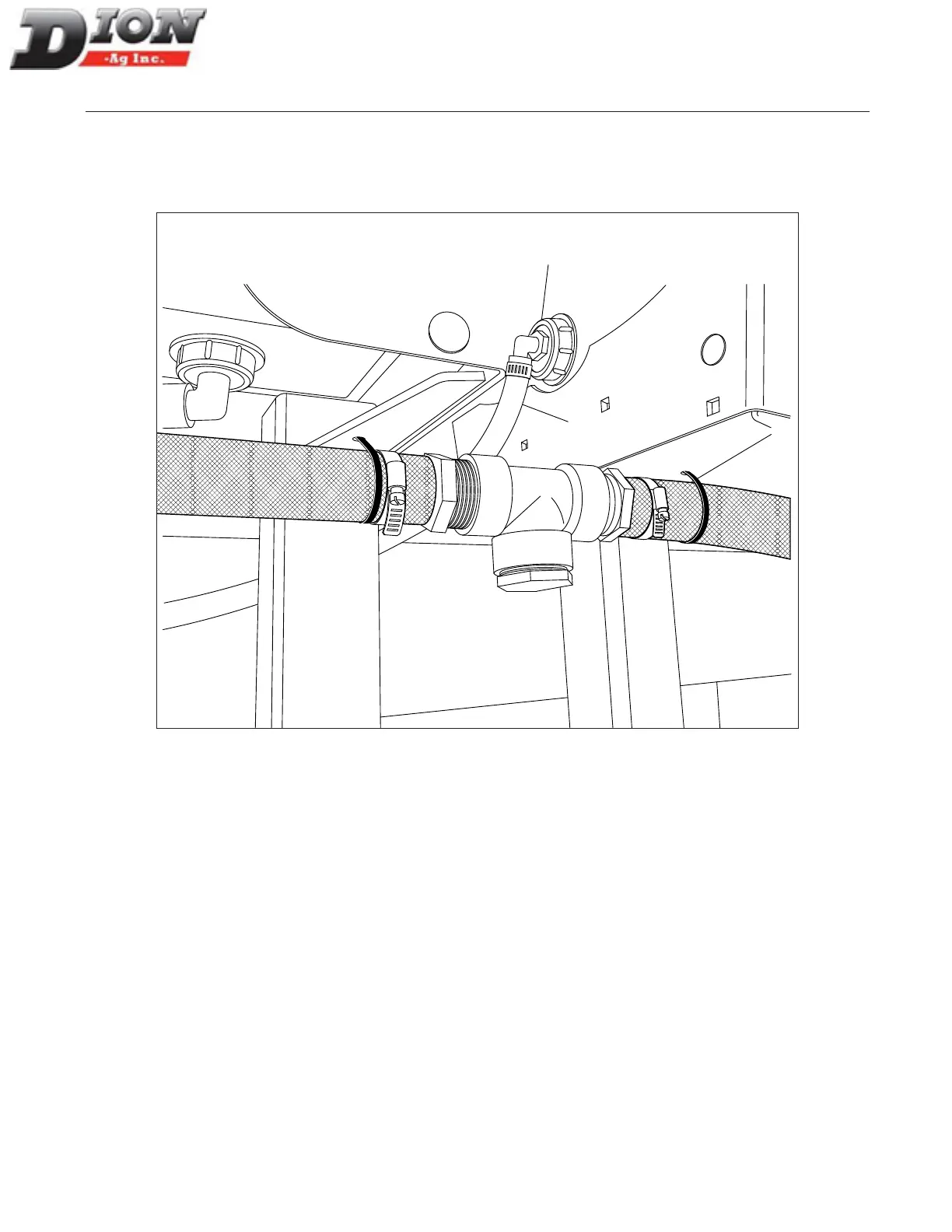

Figure 50
ASSEMBLING INSTRUCTIONS - LIQUID INCORPORATION SYSTEM
FRONT REAR
Manual No. F4117E987E V1.1
