CORN CRACKER INSTALLATION INSTRUCTIONS
STEP 17 - FIGURE 92

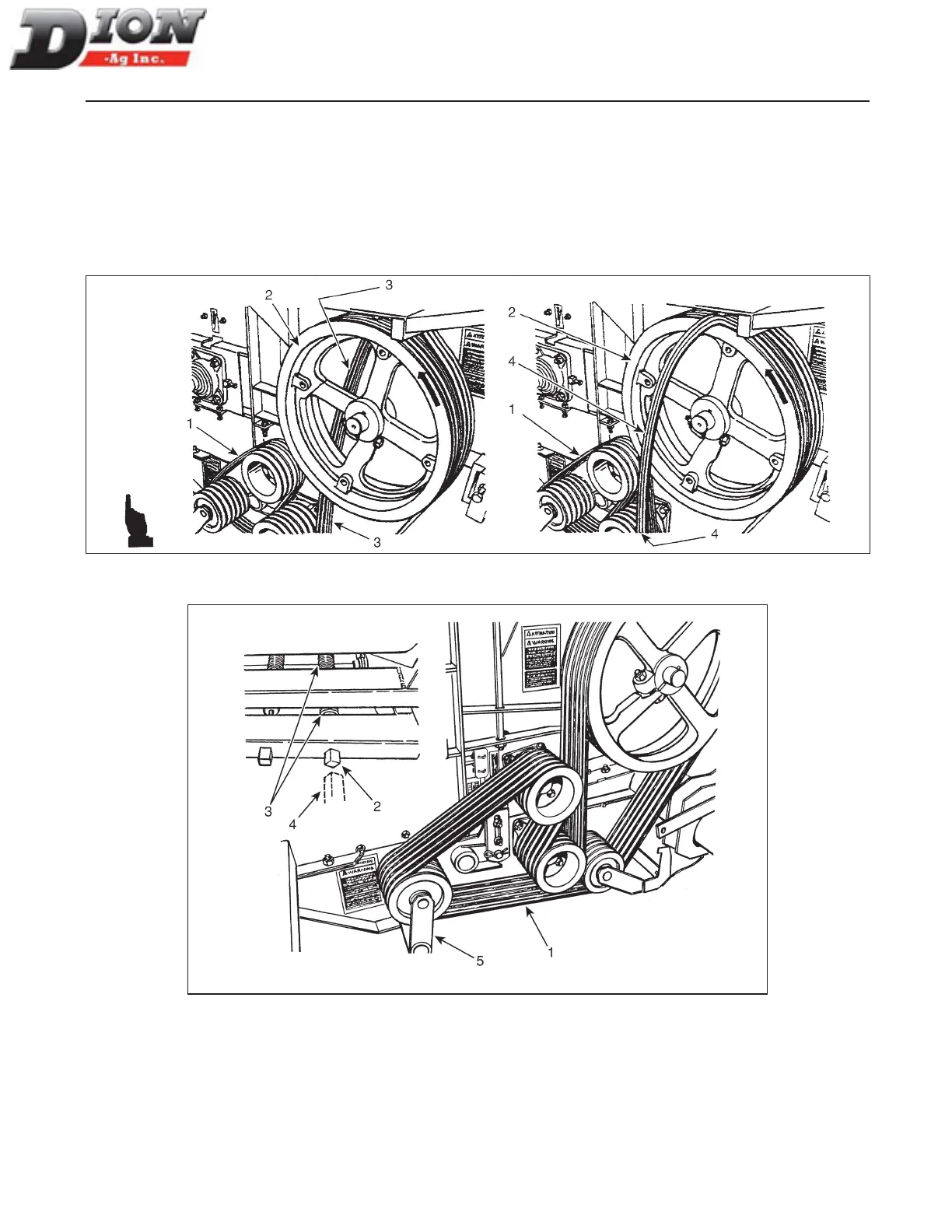

Install the six belts (item 1) as described next. Install the
rst three belts, one by one, from the rear of the sheave.
Turn the driving sheave (item 2) following the direction
of the arrow. Install the three other belts, one by one, in
the same way but this time from the front (item 4). Make
sure that belts are not twisted.
STEP 18 - Figure 93
Once the six belts are installed as shown, tighten them
with the tightening sheave (item 5) by turning the right-
hand rod (item 2) on the spring (item 3) using the handle
(item 4) so that a 1/16” (1.5) gap is obtained between
the spring coils.
Sheaves and belts must be
free of grease and oil
Figure 92
Figure 93
